IP65 Waterproof 20mm Led Display , Static Driving Led Outdoor Advertising Screens
IP65 Waterproof 20mm Led Display , Static Driving Led Outdoor Advertising Screens
IP65 Waterproof 20mm Led Display , Static Driving Led Outdoor Advertising Screens
IP65 Waterproof 20mm Led Display , Static Driving Led Outdoor Advertising Screens
IP65 Waterproof 20mm Led Display , Static Driving Led Outdoor Advertising Screens
IP65 Waterproof 20mm Led Display , Static Driving Led Outdoor Advertising Screens
Specifications
Pixel Pitch :
20mm
Pixel Density :
2500pixel/m²
LED Type :
DIP346
Cabinet Dimension :
1000*320mm
Brightness :
>6500nits
Cabinet Material :
aluminum
Ingress Protection(front/rear) :
IP65/IP54
Data Refresh Rate :
>1500Hz
Brand Name :
BAKOVISION
Model Number :
ODC-20
Certification :
CE/LCC/RoHS
Place of Origin :
CHINA
MOQ :
1 square meter
Price :
$399~999
Payment Terms :
L/C, T/T, MoneyGram,Visa,e-checking,Visa, Western Union
Supply Ability :
6500㎡/Month
Delivery Time :
20-25days
Packaging Details :
Wooden Case or Flight Case
Description

P20mm Billboard LED Display,Static Driving IP65 Low Power Consumption LED Video Wall

Product Features:

We strive to offer rugged, IP65 -67 LED displays that you can rely on in adverse weather conditions and climates that allow you to reach your audience with ease. We understand that no two video display needs are alike, and can help your outdoor display no matter the size or shape become a reality. We have extensive experience working with all types of clients from initial vision to finished install. We work with your team to seamlessly add LED Video Displays into your vision.

RUGGED, RELIABLE PRODUCTS
Our outdoor LED displays are designed and tested to withstand whatever mother nature decides to toss its way. The product line offers weatherproof DIP configurations that can compete with direct sunlight and withstand rain, wind, and dirt giving you a product you know you can rely on 365 days a year.

INTEGRATION
Anyone can put a large outdoor LED screen on the side of a building, but much more goes into adding LED Display technology into your design concept. Each client gets a dedicated project manager to help make sure your vision is seamlessly integrated both before, during, and after installation to ensure no surprises throughout the process.

CUSTOMIZATION
Our goal is to help your vision become a reality. We understand that you should be limited by product, and our product line is designed to help create any size and configuration you choose to complete your vision.

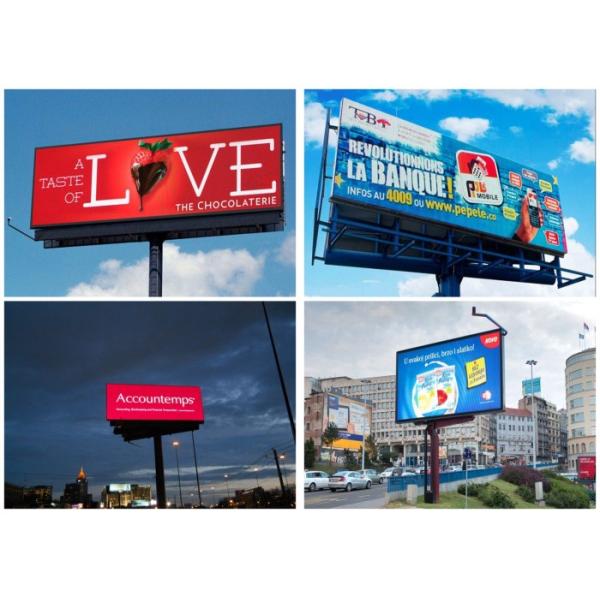

Show Case

IP65 Waterproof 20mm Led Display , Static Driving Led Outdoor Advertising Screens

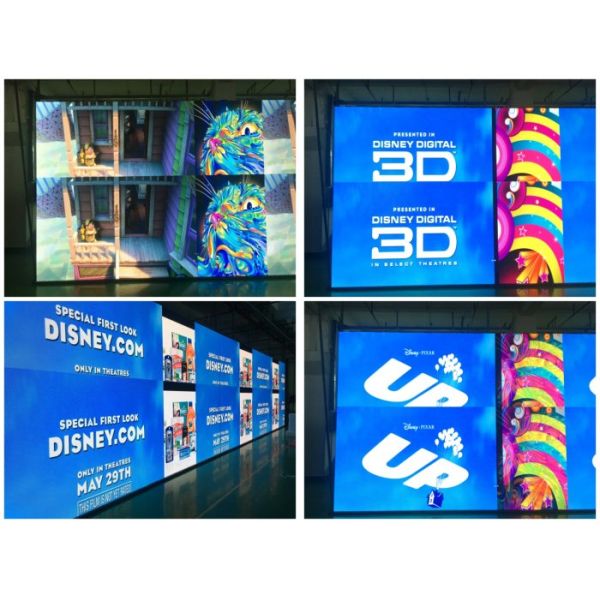

Aging Test

IP65 Waterproof 20mm Led Display , Static Driving Led Outdoor Advertising Screens

Model ODC-20
Pixel Pitch 20mm
Pixel Density 2500 px/m2
LED Type DIP346
LED Configuration 1R1G1B
Cabinet Dimension 1000*320mm
Cabinet Resolution 50*16px
Cabinet Weight 6kg
Cabinet Material aluminum
Ingress Protection(front/rear) IP65/IP54
Brightness >6500nits
Viewing Angle(H/V) 110°/70°
Driving Method Static driving
Frame Refresh ≥ 60Hz
Data Refresh Rate >1500Hz
Gray Scale 16bit
Power Consumption(avg.) 250w/m2
Input Voltage

AC110/220±10%,

50~60Hz
Temperature(operating/storage)

-20~50°C /

-40~60°C
Humidity(operating/storage) 10%~90%RH / 10%~85%RH
MTBF ≥1000hrs
Life Span ≥100000hrs
Pixel Failure <0.0003
