Exterior Billboard LED Display High Gray Level Screen With Cold Steel Cabinet
Exterior Billboard LED Display High Gray Level Screen With Cold Steel Cabinet
Exterior Billboard LED Display High Gray Level Screen With Cold Steel Cabinet
Exterior Billboard LED Display High Gray Level Screen With Cold Steel Cabinet
Exterior Billboard LED Display High Gray Level Screen With Cold Steel Cabinet
Exterior Billboard LED Display High Gray Level Screen With Cold Steel Cabinet
Specifications
Brand Name :
BAKOVISION
Model Number :
OD-8
Certification :
CE/LCC/RoHS
Place of Origin :
CHINA
MOQ :
1 square meter
Price :
$399~999
Payment Terms :
L/C, T/T, MoneyGram,Visa,e-checking,Visa
Supply Ability :
6000㎡/Month
Delivery Time :
20-25days
Packaging Details :
Wooden Case or Flight Case
Pixel Pitch :
8mm
Cabinet Weight :
51kg
Cabinet Material :
cold steel
Viewing Angle(H/V) :
140°/140°
Data Refresh Rate :
>1500Hz
Input Voltage :
AC 110/220±10% 50~60Hz
Pixel Failure :
<0.0003
Description

P8mm Outdoor Billboard LED Display,Fixed High Refresh Rate High Gray Level Screen

Feature

Quantity warranty
All our LED display screen is more than 100,000 hours life span.

Easy to use,convenient installation
A new generation of P8 LED display,visual distance will be further enhanced,you completely can close viewing clarity.

The Cabinet
Can slide the slider,to ensure the seamless splicing of the screen. The high level of protection cabinet design moisture-proof,Anti-corrosion,Anti mildew,Anti shock,Anti electromagnetic interference etc. Adapt to a variety of environments.

Easy maintenance
LED display service life of more than 10 million hours is double the service life of splicing wall and unlike splicing wall that after aging replacement lamp back light or replacement of lighting.


Description

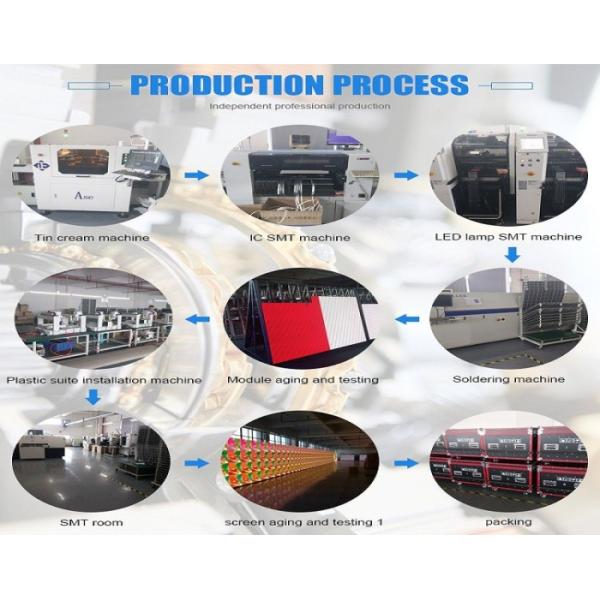

Production Process
Exterior Billboard LED Display High Gray Level Screen With Cold Steel Cabinet

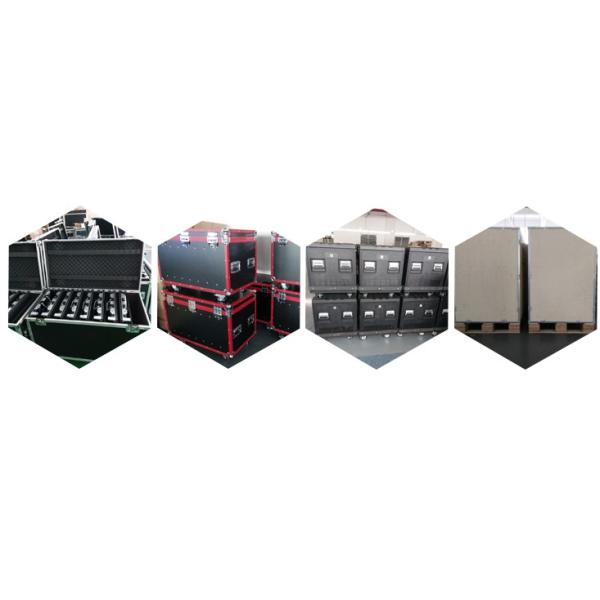

Packing delivery
Packing: Wooden case, Flight case.
Delivery: Shipping your goods after 15 working days
Exterior Billboard LED Display High Gray Level Screen With Cold Steel Cabinet

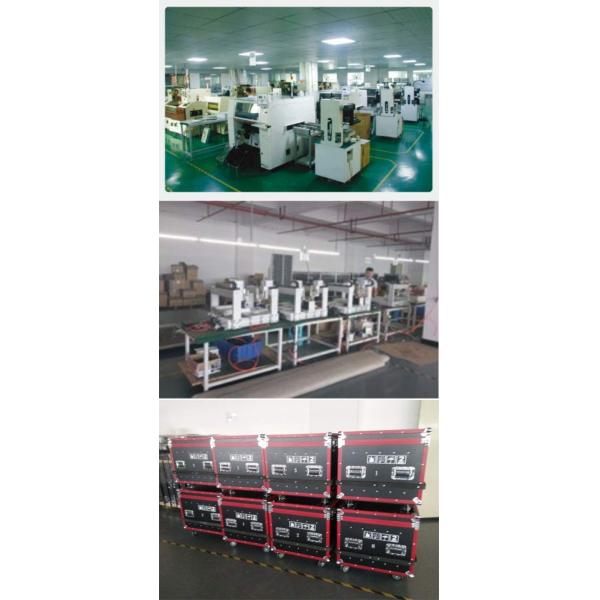

Factory information
Exterior Billboard LED Display High Gray Level Screen With Cold Steel Cabinet

ModelOD-8
Pixel Pitch8mm
Pixel Density15625 pixels/m2
LED TypeSMD3535
LED Configuration1R1G1B
Cabinet Dimension1024mm*768mm
Cabinet Resolution128*96pixels
Cabinet Weight51kg
Cabinet Materialcold steel
Ingress Protection
(front/rear)		IP65/IP54
Brightness>6500nits
Viewing Angle(H/V)140°/140°
Driving Method1/8 scan
Frame Refresh≥ 60Hz
Data Refresh Rate>1500Hz
Gray Scale16bit
Power Consumption(avg.)275w/m2
Input VoltageAC 110/220±10%
50~60Hz
Temperature
(operating/storage)		-20~50°C / -40~60°C
Humidity(operating/storage)10%~90%RH
/ 10%~85%RH
MTBF≥1000hrs
Life Span≥100000hrs
Pixel Failure<0.0003
