Front / Rear Servicing Outdoor Electronic Signage Boards SMD 2727 P6.25
Front / Rear Servicing Outdoor Electronic Signage Boards SMD 2727 P6.25
Front / Rear Servicing Outdoor Electronic Signage Boards SMD 2727 P6.25
Front / Rear Servicing Outdoor Electronic Signage Boards SMD 2727 P6.25
Front / Rear Servicing Outdoor Electronic Signage Boards SMD 2727 P6.25
Front / Rear Servicing Outdoor Electronic Signage Boards SMD 2727 P6.25
Specifications
Pixel Pitch :
6.25mm
Pixel Configuration :
SMD 2727
Pixel Density :
25,600pixels/m²
Average Power Consumption :
75 / 100W -165 W / panel
Brightness :
≤5,500nits
Servicing :
Front / Rear
Refresh Rate :
>1,920Hz
Brand Name :
BAKOVISION
Model Number :
BOR-Ⅱ-6
Certification :
CE/LCC/RoHS
Place of Origin :
CHINA
MOQ :
1 square meter
Price :
$399~999
Payment Terms :
L/C, T/T, ,Visa,e-checking,Visa
Supply Ability :
6000㎡/Month
Delivery Time :
20-25days
Packaging Details :
Wooden Case or Flight Case
Description

P6.25 Outdoor Billboard LED Display, Front / Rear Servicing High Brightness LED Screen

Description

One person can do installation and disassembly

Handle design on top enable fast and convenient

Installation and disassembly, one person is one working group

Fast Assembly

Adopting quick buckle system and horizontal positioning device for fast and accurate assembling

Friendly Maintenance

Handle design,easy and rear access for maintenance

Modular design,hot-swapping,simple wiring

Front / Rear Servicing Outdoor Electronic Signage Boards SMD 2727 P6.25

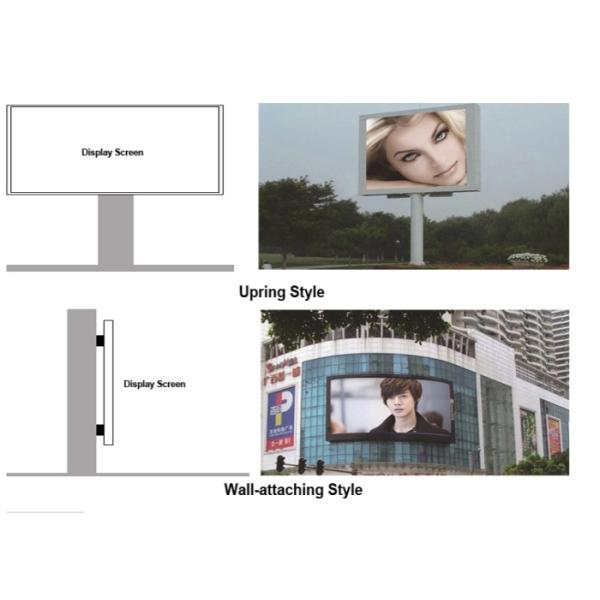

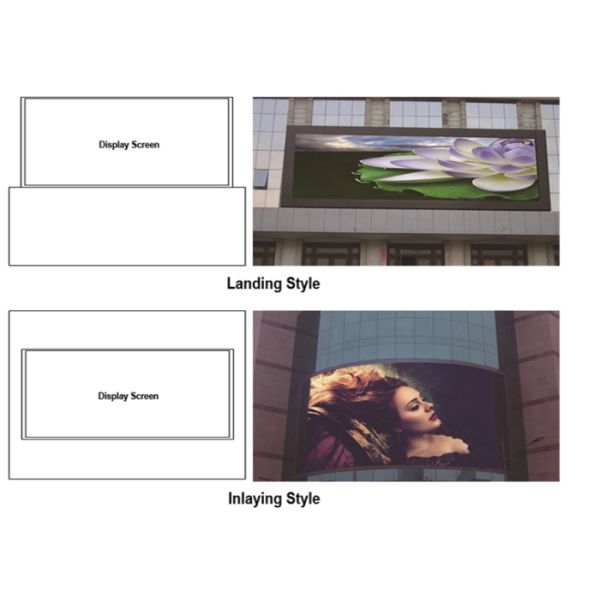

Hang Type

Front / Rear Servicing Outdoor Electronic Signage Boards SMD 2727 P6.25

Front / Rear Servicing Outdoor Electronic Signage Boards SMD 2727 P6.25

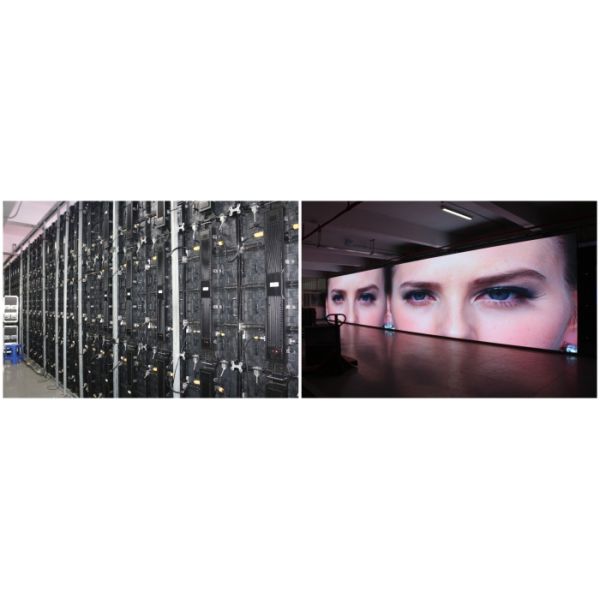

Aging Test

Front / Rear Servicing Outdoor Electronic Signage Boards SMD 2727 P6.25

Application

Front / Rear Servicing Outdoor Electronic Signage Boards SMD 2727 P6.25

Q1: When is the delivery time?
A1: we will accomplish manufacturing within 20-25 days after receiving the deposit(Exclude time of weekend). If you need urgent, please kindly let me know, in guaranteed of quality. we will try our best to make faster.

Q2: What's the Payment terms?
A2: 30% deposit to start production, and 70% balance to be clear before delivery.

Q3: what is the Delivery guarantee?
A3: Guarantee time: 2 years. Within 2 years, if any part failed, we send new parts or repair for free, we will undertake shipping cost from your city to China and from China to your city. After 2 years, we only charge cost price for parts and repairs, and you need to pay shipping cost go and back.

Q4: What's the controlling system?
A4: Control system could be Linsn, Nova-star, Color light...Usually client use Linsn for fixed installation led screens, and Nova-star system

Physical Pitch 6.25 mm
Pixel Configuration SMD2727
Pixel Density 25,600 pixels/m²
6,400 / 12,800 pixels/panel
Module Dimensions (W × H)(mm) 250 × 250 /250 × 500
Panel Dimensions (mm) 500 × 500 × 80 / 500 × 1000 ×80
NO .of Modules Per Panel (W × H) 2 × 2
Physical Resolution of Module (W × H) 40 × 40 / 40 × 80
Physical Resolution of Panel (W × H) 80 × 80 / 80 × 160
Panel Material Die-casting aluminum
Single Cabinet Weight 7.8 / 16 kg/panel
Processing 14 - 16 bit
Colours 281 trillion
Contrast Ratio 4000 : 1
Average Power Consumption 75 / 100-165 w/panel
Max Power Consumption 185 / 330 w/panel
Operating Temp/Humidity -20℃ - 60℃ / 10% - 60%
Storage Temp/huminity -30℃ - 60℃ / 10% - 60%
Refresh Rate ≥1920Hz
Brightness ≤5500nits
Horizontal Viewing Angle 140°
Vertical Viewing angle 140°
Expected Lifetime 100, 000 hours
Max Stacking 20
Max Hanging 18
Servicing Front / Rear
IP Rating (Front/Rear) IP 65/IP 54
Certification CCC, CE, ETL, FCC
