P10.4 Outdoor Rental LED Display High Brightness High Gray Scale 500*1000mm Cabinet IP65/IP54
Product advantages
- Ultra Slim and lightweight design:13kg per Cabinet Weight (500*1000mm) ,Convenient transportation.
- High refresh rate and gray Scale : make the LED display more realistic.
- High resolution and high pixel density for true reproduction of high definition images.
- With brightness, color correction technology.
- Lower power Consumption : average power consumption is 300w/m²,energy saving and environmental protection.
- Pixel Failure <0.0003.

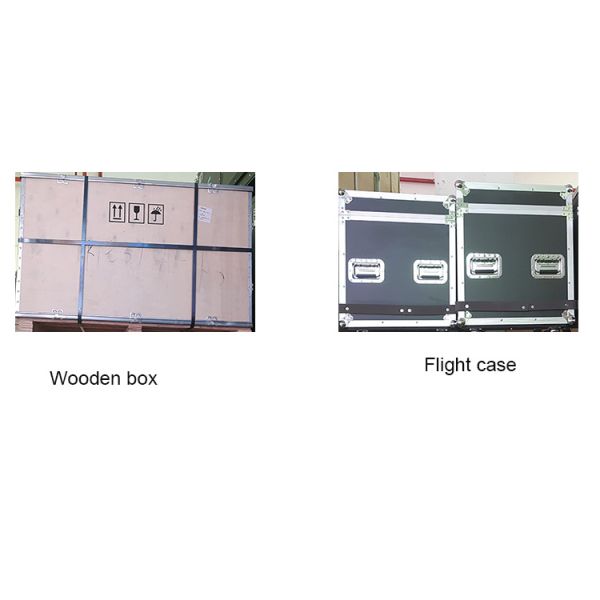

- Equipped with a variety of air boxes, it is convenient for storage and transportation of the cabinet, and it has a good protection for the LED display.
- High transparence.
- Excellent heat-sinking : prevents excessive temperature when the display is working.
- High brightness : >5500nits, the image is also clear in time under direct sunlight.
- Wide viewing Angle : Vertical viewing angle and horizontal viewing angle are both 140 degrees, wide audience.
- Waterproof effect, IP65 waterproof rating, can adapt to outdoor climate.
- Die-cast aluminum housing, high strength, not easily deformed.
- Truly seamless design : better viewing experience.
- multi-angle splicing : can be spliced into any size according to your needs.
Application

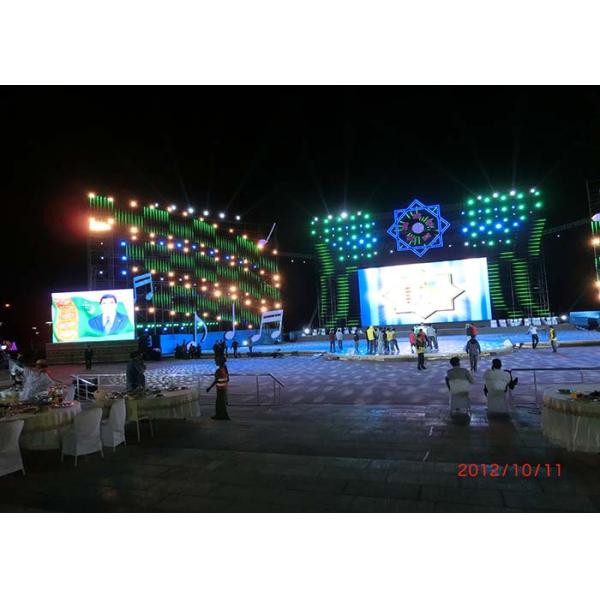

Widely used in stage rental, singing and dancing events, various conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-purpose halls, conference rooms, interpretation halls, dibars, nightclubs, high-end entertainment discos, etc.
Service
- Our goal is not only to provide high quality steel structure building, but also to maintain a personalized and professional relationship with each customer.
- No matter how big or small your requirement we will do our best to meet your demand.
- One stop service from design, manufacture,deliver to installation and after-service.
- We can manufacture strictly according to your drawings and request.
- We can design product to supply you a most suitable proposal to you.
Technological Parameters
| Model | ORD-10.4 |
| Pixel Pitch | 10.416mm |
| Cabinet Dimension | 500*1000mm |
| Cabinet Resolution | 48*96px |
| Cabinet Weight | 13kg |
| Cabinet Material | aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >5500nits |
| Viewing Angle(H/V) | 140°/140° |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 300w/m2 |
| Input Voltage | AC110/220±10%,50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
