P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental
P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental
P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental
P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental
P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental
P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental
Specifications
Brand Name :
Bako Vision
Model Number :
BOR-III
Certification :
CCC.CE.ETL.FCC
Place of Origin :
China
MOQ :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 m²/month
Delivery Time :
20 days
Packaging Details :
Flight Case
Pixel Pitch :
3.91mm
Panel Material :
Die-casting Aluminum
Processing :
16 bit
Refresh Rate :
>1920 Hz
Brightness :
≥6000 nits
Servicing :
Front/Rear
Colors :
281 trillion
Contrast Ratio :
4000:1
Price :
Negotiation
Description

P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental

BOR-III Series

High Bright, High Definition,

Outdoor Rental LED Display


Specification

BOR-III-3 BOR-III-4 BOR-III-5 BOR-III-6
Physical Pitch 3.91mm 4.81 mm 5.95mm 6.25 mm
Pixel Configuration SMD 1921 SMD 2727 SMD 2727 SMD 2727
Pixel Density

65536pixels/m²

43264 pixels/m²

28224 pi

xels/m²

25600 pixe

ls/m²
Module Dimensions (W × H) (mm) 250 × 250 250 × 250 250 × 250 250 × 250
Panel Dimensions (mm)

500 × 500 ×

80 / 500 × 1000 × 80

500 × 500 ×

80 / 500 × 1

000 × 80

500 × 500 × 80 /

500 × 10

00 × 80

500 × 500 ×

80

/ 500 × 1

000 × 80
NO .of Modules Per Panel (W × H) 2 × 2/2×4 2 × 2 /2×4 2 × 2/2×4 2 × 2/2×4
Physical Resolution of Module (W × H) 64×64 52×52 42×42 40×40
Physical Resolution of Panel (W × H) 128×128/128×256 104×104/104×208 84×84/84×168 80×80/80×160
Panel Material Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum
Single Cabinet Weight 9/ 15 kg/panel 9/ 15 kg/panel 9/ 15 kg/panel 9/ 15 kg/panel
Processing 16 bit 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1
Average Power Consumption 75 /150 W/panel 75 /150 W/panel 75 /150 W/panel 75 /150 W/panel
Max Power Consumption 225 /550 W/panel 225 /550 W/panel 225 /550 W/panel 225 /550 W/panel
Operating Temp/Humidity -20℃ - 60℃ / 10% - 60% -20℃ - 60℃ / 10% - 60% -20℃ - 60℃ / 10% - 60% -20℃ - 60℃ / 10% - 60%
Storage Temp/Humidity -30℃ - 60℃ / 10% - 60% -30℃ - 60℃ / 10% - 60% -30℃ - 60℃ / 10% - 60% -30℃ - 60℃ / 10% - 60%
Refresh Rate ＞1,920 Hz ＞1,920 Hz ＞1,920 Hz ＞1,920 Hz
Brightness ≥6000 nits ≥6000 nits ≥6000 nits ≥6000 nits
Horizontal Viewing Angle 160° 160° 160° 160°
Vertical Viewing angle 140° 140° 140° 140°
Expected Lifetime 100, 000 Hrs 100, 000 Hrs 100, 000 Hrs 100, 000 Hrs
Max Stacking 20/10 20/10 20/10 20/10
Max Hanging 20/10 20/10 20/10 20/10
Servicing Front / Rear Front / Rear Front / Rear Front / Rear
IP Rating (Front/Rear) IP 65/ IP 54 IP 65/ IP 54

IP 65/ IP 54

 IP 65/ IP 54
Certification

CCC, CE,

ETL, RoHS

CCC,

CE, ETL, RoHS

CCC,

CE, ETL, RoHS

CCC, CE,

ETL, RoHS


User Friendly and Fast Installation

Feature
Outdoor Rated

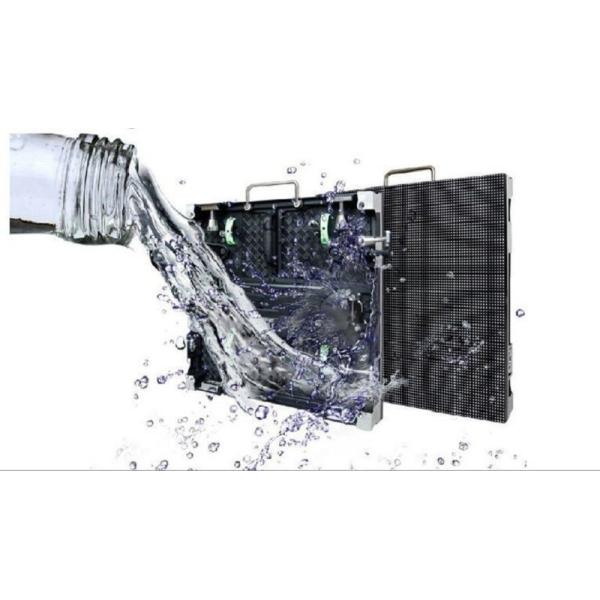

→ IP65 rating for front and rear
→ Suitable brightness adjustable for outdoor day and night
→ Deep black level, contrast ratio 4000:1

→ Truss hanging and ground support both available
→ Fast lock and handle designed user friendly
→ Front and rear access
→ Tools free installation

P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental

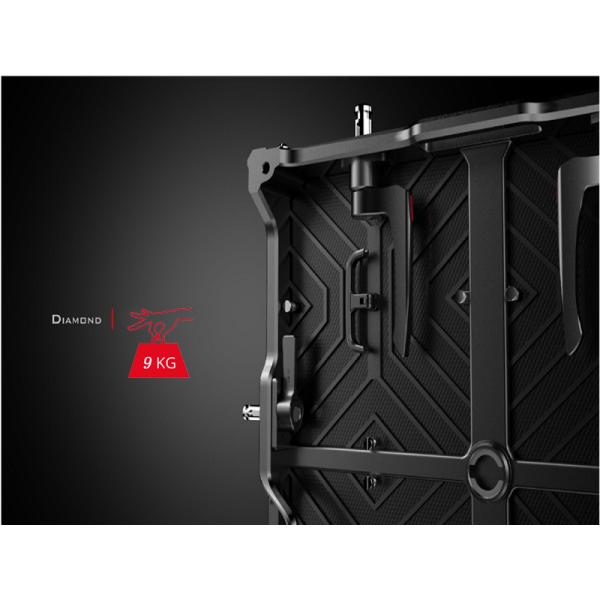

Slim,Light Weight and Quiet
→ 500mm×500mm or 500×1000mm options
→ 80mm thickness
→ 1 person job
→ Fanless design


Smart Concave and Convex
→ Both 500mm×500mm and 500mm×1000mm cabinets are arc-able
→ 0°-10° concave and convex degree

P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental


COMPANY INTRODUCTION

Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!

P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental

FAQ

Q1. Are you trading company or manufacturer?

A: We are a professional LED screen manufacturer,specialize in this industry for more than ten years.

Q2. Do you provide samples?is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3. Do you offer guarantee for the products?

A: Yes,we offer 2-5 years warranty to our products.
