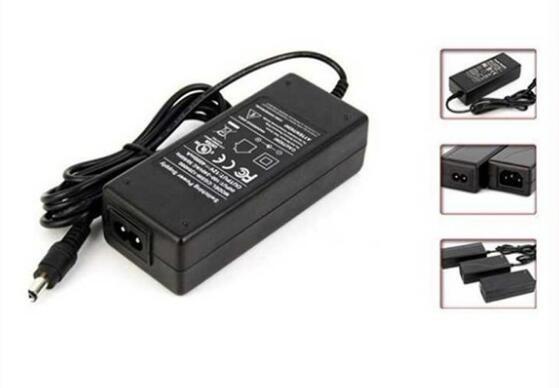

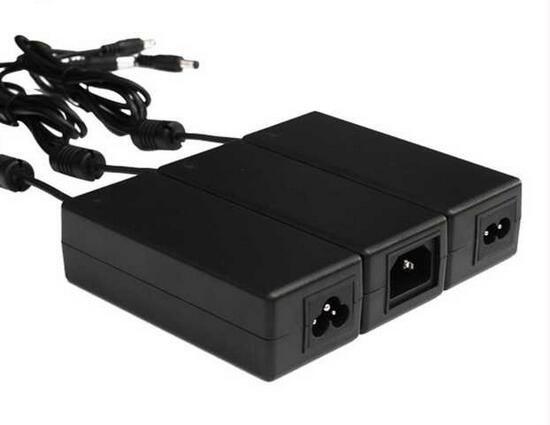

High Efficiency 120mvpp 12v Power Adapter Portable With 50-60Hz Frequency
High Efficiency 120mvpp 12v Power Adapter Portable With 50-60Hz Frequency
High Efficiency 120mvpp 12v Power Adapter Portable With 50-60Hz Frequency
High Efficiency 120mvpp 12v Power Adapter Portable With 50-60Hz Frequency
High Efficiency 120mvpp 12v Power Adapter Portable With 50-60Hz Frequency
High Efficiency 120mvpp 12v Power Adapter Portable With 50-60Hz Frequency
High Efficiency 120mvpp 12v Power Adapter Portable With 50-60Hz Frequency
High Efficiency 120mvpp 12v Power Adapter Portable With 50-60Hz Frequency
Specifications
Brand Name :
OEM/Anenerge
Model Number :
AE-12v30W
Certification :
CE Rohs FCC UL TUV GS CB SAA KC
Place of Origin :
Shenzhen
MOQ :
1pcs
Price :
1-3usd/pcs
Payment Terms :
Western Union,Paypal,T/T
Supply Ability :
1000000pcs/month
Delivery Time :
3-5days
Packaging Details :
Neutral white box packaging
Output :
12volt 3amp
Power :
30Watt
Available :
LCD machine CCTVs
Ripple Noise :
120mvpp
Warranty :
2 years
Packaging :
Neutral packaging
Description

12v power adapter 3Amp 36Watt AC Dc adapter charger for LED strips CCTVs with CE UL SAA

Description:
1. input voltage range of AC90-264V. wide voltage input, comply with the global standard.
2. input voltage frequency: 47-63Hz
3. output voltage: according to customer requirements
4. output voltage adjustable rate: 1%
5. rated output current can be customized
6. current output range 0-5A


Applications:

100-240Vac 50-60Hz AC DC Adapter 12V 3.5A KC
can be applied in security equipments, portable equipments, telecommunication equipments, consumer equipments, and other equipments.

  • Security equipment: monitoring camera, hard disk video recorder, security system, control equipment, monitoring equipment, etc.
  • Portable equipment: portable DVD, radio, mobile hard disk box, portable tools, charger, lithium ion battery, game machine, language repeater, walkman, digital products, tablet PC, etc.
  • Telecommunication equipment: router, microprocessor system, ADSL equipment, telephone composite aircraft, hub, telecommunications terminal equipment, cell phone, etc.
  • Consumer equipment: LCD TV, HD player, DVD players, digital photo frame, electronic refrigerator, acoustics, LED lamps and lanterns, small power electric appliances, electric tools, audio-video products, mini TV, decorative lighting, massager, LED lighting, electric bicycle battery charger, small size LCD TV and set top box, air cleaner, LCD, computer monitor, etc.
  • Other equipment: industrial automation control, military equipment, scientific research equipment, industrial control equipment, electric power equipment, medical equipment, semiconductor refrigeration and heating, computer chassis, instrument power supply, printer, testing equipment, and almost any other portable type equipment.
Product Description:

Input parameter Input voltage AC100V---240V
Input frequency 50-60Hz
Input surge 20A@120VAC 40A@230VAC
Output parameter Output voltage can be adjusted ±10%
Start-up time <1S(input230V Io=100%)
keep time >20mS (input230V,Io=100%)
Voltage regulation (Full load) <0.5%
Protection function Overload protection 105% - 150% rated power, automatic recovery
Over-voltage protection 105% - 150% of the rated voltage
Insulation intensity Input---output 1500VAC/1min
Input---ground 1500VAC/1min
Input---ground 500VAC/1min
Safety standards According with GB4943, UL60950-1,EN60950-1 standards.
EMC standards According with GB9254, EN55022 class A EN61347-2-13:2008 standards
Environmental working temperature - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
Storage temperature - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
Product model output specification ripple, noise efficiency
AE-1203000 12V 3A about 35mV

>86%

Output

 DC output voltage 5V 12V 24V
Output voltage tolerance ±5% ±5% ±5%
Rated output current 5A 3A 1.5A
Output current 0~5A 0~3A 0~1.5A
Output power 25W 36W 36W
Ripple and noise mVp-p 100mVp-p 240mVp-p
Line regulation ±1% ±1% ±1%
Load regulation ±5% ±5% ±5%
Voltage adj. range Fixed
Setup rise hold up time 500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load

Input

 Input voltage range 90~264VAC 135~370VDC
AC input current 0.7A/100VAC
Efficiency 75% 80% 83%
AC inrush current 45A/230VAC
Leakage current 0.75mA/240VAC
Frequency range 47~63Hz

Protection

characteristic

 Over load protection 110%~150%rated output power
Protection mode: Hiccup mode, auto-recovery after fault condition is removed.
Environment Working temperature 0℃~+50℃
Working humidity 20%~90% RH non-considering
Storage Temp,humidity -20℃~+85℃,10~95%RH
Temp.coefficient ±0.03% /℃(0~50℃)
Vibration

10~500Hz, 2G 10min./1 cycle ,period for 60 min. each along

X Y Z axes
Safety Withstand voltage I/P-O/P:3000 VDC
Safety standards EN60950
Insulation resistance I/P-O/P:100M Ohms/500VDC/25℃/70%RH
EMI conduction&radiation Compliance to EN55024, EN61000-3-3
EMS immunity Compliance to EN61000-3-3
Harmonic current Compliance to
Others Weight/Packing 0.22kg/50PCS/12.5kg
Dimension 115*48*30MM
Connector Plug 5.5X2.1mm 5.5X2.5mm
Cable 1.2m

Remark:

1. All parameters are specified at 230VAC input, rated load, 27℃ 70%RH ambient

2. Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor

3. Tolerance: includes set up tolerance, line regulation, load regulation

4. DC voltage : the output voltage set at point measure by plug terminal &50% load

5.Line regulation is measured from low line to high line at rated load

6. Load regulation is measured from 20% to 100% rated load

7. The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives

1. 8years professional factory, ISO9001: 2008, GMC, BV,TUV,SGS quality system certified
2. 6 years exporting experience, OEM/ODM service is welcome
3. AC Input 100-240V, world wide use voltage
4. Compact size and easy to carry with
5. Grade A quality, 100% brand new electronic components; good quality PC+ABS fireproofing raw material
6.100% full load burning test, every aging test lasts more than 2 hours; 4 times full quality check; 6 times drop test; tin sweat test
7. Competitive wholesale price
8. Low defective rate, 0.3-0.5%

Protections
1) over voltage protection: 120%min
2) over current protection: 120%min
3) over protection
4) Short-circuit protection: automatic recovery ­
5) Load regulation: ±5%
Environmental requirement
1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum) ­
5Insulation resistance: DC 500V 100MΩ (minimum) ­
Advantages
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
6. Installed with EMI filter ,minimum wave

Our Services

1.100% more than 2 Hour Burn-In Test
2.100% 4 times electrical performance test
3.100% dropping test from 6 surface
4.100% Solder ball vibration test
5.100% Hi-Pot Test
6.0.3% RMA F.O.C
