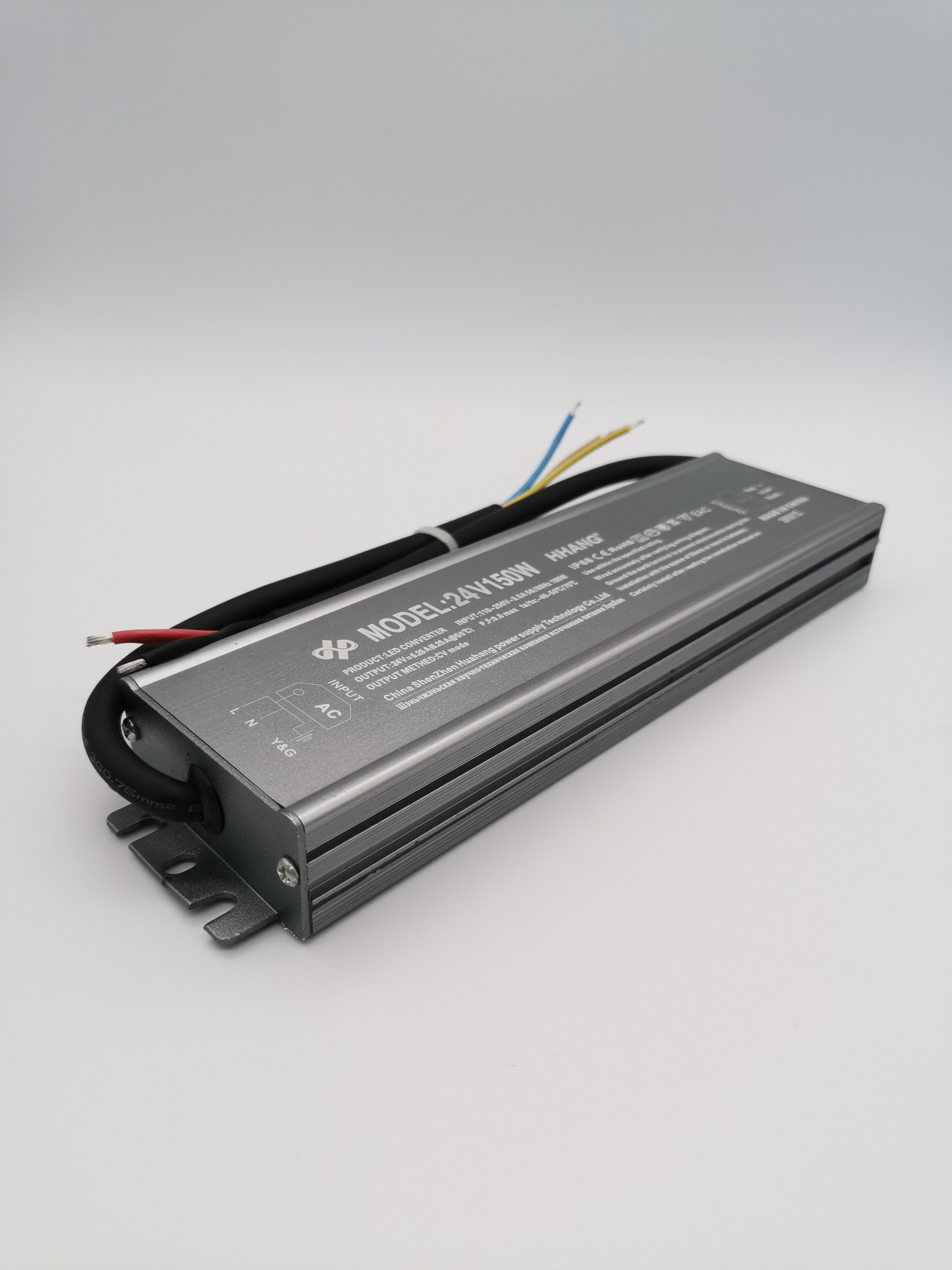

Meanwell LED Driver LED Power Supply200w 240w 300w 600w 24v 12v Waterproof IP67 for lighting
Meanwell LED Driver LED Power Supply200w 240w 300w 600w 24v 12v Waterproof IP67 for lighting
Meanwell LED Driver LED Power Supply200w 240w 300w 600w 24v 12v Waterproof IP67 for lighting
Meanwell LED Driver LED Power Supply200w 240w 300w 600w 24v 12v Waterproof IP67 for lighting
Meanwell LED Driver LED Power Supply200w 240w 300w 600w 24v 12v Waterproof IP67 for lighting
Meanwell LED Driver LED Power Supply200w 240w 300w 600w 24v 12v Waterproof IP67 for lighting
Specifications
Brand Name :
Miracle Bean
Model Number :
XH-100W-B
Certification :
CE ROHS
Place of Origin :
Guangdong,China
MOQ :
50
Price :
negotiate
Payment Terms :
T/T In advance,Western Union,Paypal,LC
Supply Ability :
50000PCS per month
Delivery Time :
Within 3-5 working days
Packaging Details :
390*265*265 23kg
Dimension :
225*53*19mm
Output Voltage :
12v/24v
Output Power :
100W
Input Voltage :
170-265V
Efficiency :
90%
Color :
Dark grey
Keyword :
led driver
Protection :
Short circuit/Over temperature/Over load
Description

Meanwell LED Driver LED Power Supply200w 240w 300w 600w 24v 12v Waterproof IP67 for

lighting

LED power supply description

An LED power supply—commonly referred to as an LED driver—is an essential component that ensures LED lighting runs safely and efficiently. It
converts incoming AC or DC power into the stable voltage and current required by LEDs.
By regulating power output, it protects LEDs from voltage fluctuations, overheating, and early burnout. Depending on the application, LED power
supplies come in constant voltage or constant current models, and many are designed with added features such as dimming capability,
waterproof housing, or surge protection for enhanced performance and reliability.
Key Functions of an LED Driver:
Voltage Conversion
An LED driver transforms incoming AC power into the precise DC voltage required for LEDs to operate safely.
Current Regulation
It maintains a steady current flow, ensuring LEDs run at peak performance while preventing overheating or damage.
Protection from Power Fluctuations
Built-in safeguards protect LEDs against overvoltage, undervoltage, and other irregularities in the power supply, extending their lifespan.
Advanced Features
Many modern LED drivers include dimming functionality and additional options not available in standard power supplies, allowing for greater
control and flexibility.

LED power supply specificatoion

Model XH-100W-B XH-24100-B
DC output voltage 12V 24V
Rated output current 33.3A 16.6A
Output current range 0~33.3A 0~16.6A
DC output power 100W 100W
Efficiency 90% 90%
Input voltage AC 170-265V
Waterproof level IP67
Working temperature and humidity -30~+50 centigrades 20-99% RH non-condensing(waterproof)
Store temperature and humidity -40~+80centigrades 10-99% RH
Weight 0.4kg
Dimension 225mm*53mm*19mm

LED power supply Protections:
1. Short Circuit: protection mode(revocers automatically after fault condition is removed.) So,if your power supply not work,please wait for 30 seconds,then start it again.Maybe its self-protection worked.

2. Overload Protection

3. Overtemperature:Protection model(shut down output votlage,work again after re-started.

Our Services

♦♦ Our led power supply Service

1. Replied in 24hrs
2. Answer all your enquires in fluent English
3. OEM & ODM are welcome
4. Distributoership are offered for your unique design and some our current models;
5. Protection of your sales area, ideas of design and all your private informaton
6. Provide lifelong warranty
7. After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.

Applications

♦♦Led power supply Applications

1. Power For led strips,led modules,led pixel lights,
2. Power For outdoor lamps,led street lamps,led downlight,led flood light and so on
3. Power For CCTV,
4. Office lighting, Artwork lighting, Display case
5. Home lighting
6. Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
7. Hotel, Restaurant lighting
8. Other public lighting

Company Information

♦♦ Shenzhen Xinhe Lighting Optoelectronics Co., Ltd.

  • Specialized in semiconductor illumination and lighting products, and is an integral companyintegrating designing, developing, manufacturing, and sale.
  • We focus on the appliance products in advertising and lighting area, and establish the long term business relationship with large advertisement material distributors.
  • With topping technology talented persons, advanced management, efficient staff team, our company tries our best to create well-known brand in semiconductor illumination field.
  • Our company bases on LED encapsulation, making the best lighting deploying projects in allusion to different LED appliance field.
  • Our company captured the chance of revolution of world illumination industry, and formed application department.
  • Our extended series products are as: the LED modules for advertising lighting, specialized LED switch power supply, LED RGB controllers, LED open signs, super LED straight lighting words and other related products.
