Specifications
Place of Origin :
Shaanxi, China
Brand Name :
Razorlux
Model Number :
RGL2-400P
Certification :
ce, LVD, RoHS, Saa
Packaging Details :
1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*560mm
3.One 20'' Container can accept 250 Units
Price :
$787.00/Pieces
Color Temperature(CCT) :
6000K (Daylight Alert), Cool White
Lamp Luminous Efficiency(lm/w) :
120, 120
Color Rendering Index(Ra) :
80
Lighting solutions service :
DIALux evo layout, Agi32 layout, auto CAD layout
Working Time (hours) :
50000
Product Weight(kg) :
15
Input Voltage(V) :
80~315Vac, (347Vac available on request)
Beam Angle(°) :
15° 20° 30°
Lamp Body Material :
Aluminum Alloy
IP Rating :
IP67
Application :
Sports Stadiums
Lamp Luminous Flux(lm) :
48000, 48000lm
Working Temperature(℃) :
-40 to 60, -40 - 60
Warranty(Year) :
5-Year
Product Name :
Stadium Lighting
IP Class :
IP 65 (Upgradeable to IP 67)
LED Driver :
Meanwell
Description

Factory Price Waterproof IP67 400W Stadium Lighting for Football Stadium, Baseball Stadium

Description of LED sport stadium court lights:

LED sport court lights design is mainly to meet the needs of football, track and field, rugby, hockey and other sports. Football is not only on the ground, but also in the space of 10-30 m away from the ground.

Therefore, to maintain a certain brightness in all directions of a certain space height, the light distribution in the space below 15m above the football field should be very uniform.

Track and field competitions are mostly held in the range of about 3M above the ground. The LED sport court lighting of such sports facilities mainly meets the requirement of uniform light distribution on the ground.

Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 400W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

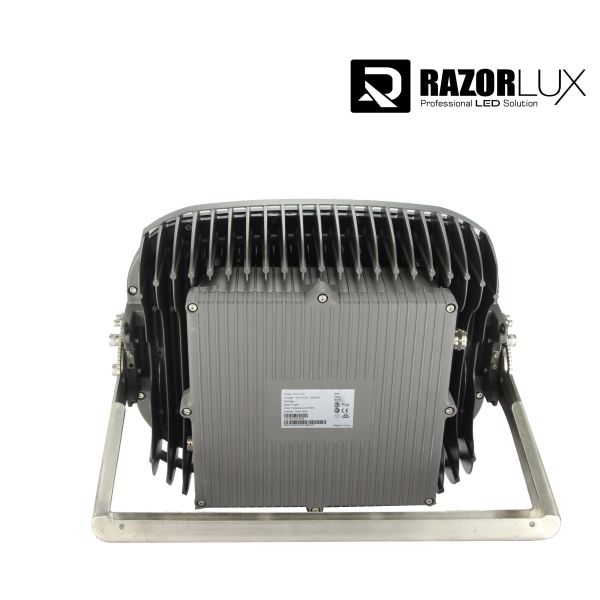

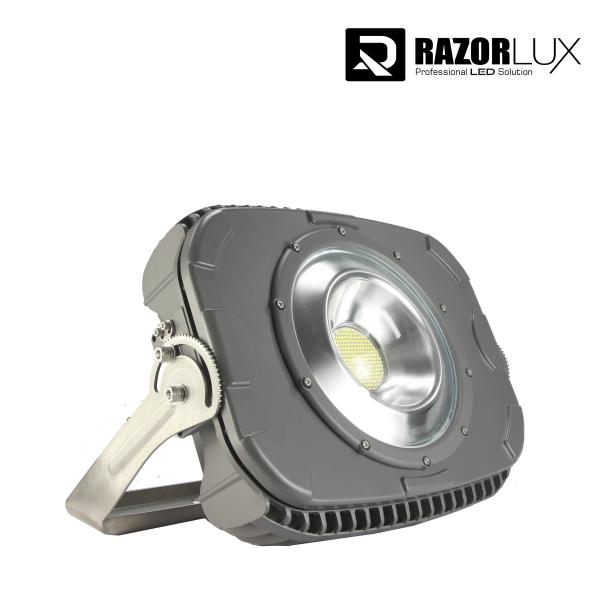

Photos of Stadium Lighting:

Saa 6000K Led Outdoor Sports Lighting Gymnasium IP67 400WSaa 6000K Led Outdoor Sports Lighting Gymnasium IP67 400WSaa 6000K Led Outdoor Sports Lighting Gymnasium IP67 400W

Parameter of Razorlux Stadium Lighting:

Model RGL2-400P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

48000lm
Dimension (mm) 466*388*487
LEDs 360W
Power Driver 40W
Consumption Total 400W
Replace HID Lamp 400~600W
Net Weight 19kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year

Lighting Distribution of Razorlux Stadium Lighting:

For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

Features & Specifications of 1-10V Dimmable led flood light 400Watt

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC90-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 15KG
  • Warranty: 5 Years

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.

2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.

3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.

4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.

5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.

6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
