Amber Color PMMA TYPE2-M SMD5050 Street Light Lens 60x155 Degree

Specifications

Brand Name :

Spark

Model Number :

XH04T2M-SMD50-5050-OS4967

Certification :

CE, SGS, ROHS

Place of Origin :

Zhejiang, China

MOQ :

100pcs

Price :

Negotiable

Payment Terms :

T/T, Western Union, MoneyGram, Paypal

Supply Ability :

100000pcs/per week

Delivery Time :

2-5 wks

Packaging Details :

In Carton Box

Material :

PMMA

Beam Angle :

60*155 Degree

Efficiency :

93%

Dimension :

50*50mm

LED Chips :

SMD5050

Application :

LED Street lighting

Color :

Amber

Description

Amber color PMMA 60 x 155 Degree LED Street Light Lens TYPE2-M For SMD 5050

A simple Lens consists of a single piece of material, while a compound Lens consists of several

simple lenses (elements), usually along a common axis.

1. In general, when talking about lens optics the larger the optic the easier it is to collimate light into a tighter pattern.

2. Another consideration when trying to achieve a tight spot is the size of the LED die.

3. The smaller the size of the die the tighter the spot. For example, to get the tightest spot with our LEDs you would want to use the Cree XP-E LED (smallest size die) and the 26mm plain tight lens (largest diameter optic).

Part Number	XH04T2M-SMD50-5050-OS4967
Beam angle	60*155 Degree
Dimension	50*50mm
Lens Material	Amber Color PMMA
Transmittance	93%
Working Temperature	Lens ≤ 90℃
Application	LED Street lighting

Delivery and Shipping:

Trade Terms	EXW , FOB , CNF , CIF
Payment Terms	T/T , PayPal , Western Union, Moneygram
Lead Time	1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms	By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc

(1), Lenses are often designed for use with specific LEDs. Check the manufacturer data for compatible LED options.

(2), Some manufacturers pre-mount LEDs onto a board ready for the lens/reflector to sit over, saving

you having to solder and line the LEDs up accurately.

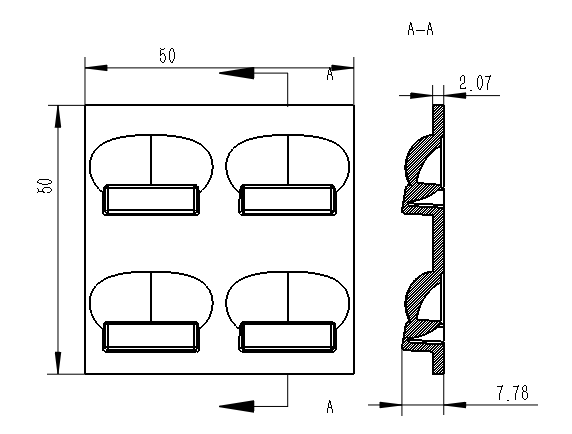

LED lens Dimension:
