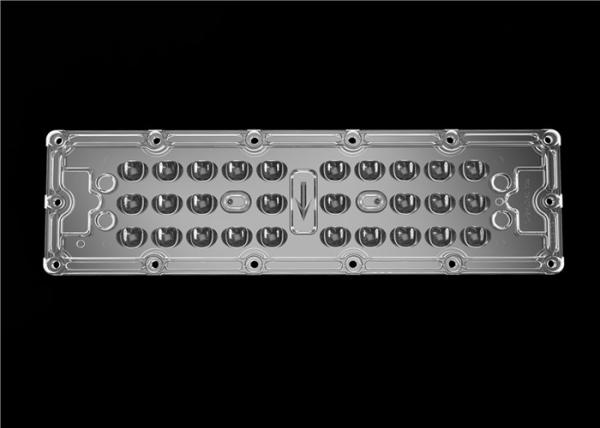

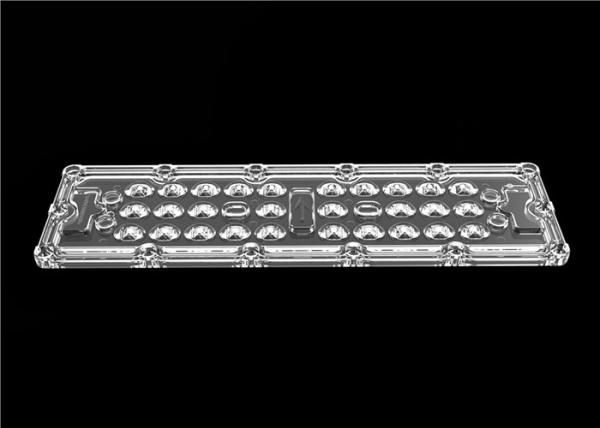

5050 LED Lens ROHS Certificated Lightweight For Outdoor IP65 Road Lamp
5050 LED Lens ROHS Certificated Lightweight For Outdoor IP65 Road Lamp
5050 LED Lens ROHS Certificated Lightweight For Outdoor IP65 Road Lamp
5050 LED Lens ROHS Certificated Lightweight For Outdoor IP65 Road Lamp
Specifications
Brand Name :
Spark
Model Number :
JY-BAF2880150P-23670
Certification :
CE, SGS, ROHS
Place of Origin :
Zhejiang, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100000pcs/per week
Delivery Time :
2-5 work days
Packaging Details :
In Carton Box
Material :
PC
Beam Angle :
80*150 Degree
Efficiency :
93%
Dimension :
L236*W70
LED Chips :
5050
Accessory :
AL PCB+ Silicone Gasket+ Heat Sink
Application :
LED Road Lamp
Description

28 in 1 LED Lens LED Street Light Module For Outdoor IP65 Road Lamp

LEDs generally emit light at a 120-degree viewing angle.

LED applications that require more focused light often use a secondary optic that is placed over the

LED, which internally reflects light into a spot, medium spot, wide spot or elliptical spot pattern.

Most optics are cone shaped and need an optic holder to hold the lens in place over the LED. The lens itself clips securely into the holder, but the holder does need to be externally adhered.

In the case of LED stars, optic holders have four legs that sit down into the grooves of the star board. Triple LED stars are built with three holes in the star board for the legs of the optic.

Part Number

JY-BAF2880150P-23670

Beam angle

80*150 Degree

Dimension

L236*W70

Lens Material

PC / PMMA

Transmittance

93%

Working Temperature

Lens ≤ 90℃

Application

LED Road Lamp

Delivery and Shipping:

Trade Terms EXW , FOB , CNF , CIF
Payment Terms T/T , PayPal , Western Union, Moneygram
Lead Time 1-2 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc

***There are a wide array of standard optics available to order with many being stocked items in the

UK and USA. Sizes available from 10mm – 60mm with a full range of beam angels and surface finishes suitable for any application.

***The large product range includes specialised optics with ultra narrow, ultra wide, asymmetric and freeform light distribution. We have small form factor arrays, cluster holders, linear strip and IP rated optics – all of which are optimised for a wide range of LEDs.

LED lens Drawing:

5050 LED Lens ROHS Certificated Lightweight For Outdoor IP65 Road Lamp

IES:

5050 LED Lens ROHS Certificated Lightweight For Outdoor IP65 Road Lamp

Gasket Size:

5050 LED Lens ROHS Certificated Lightweight For Outdoor IP65 Road Lamp

5050 LED Lens ROHS Certificated Lightweight For Outdoor IP65 Road Lamp
