1. SMD5050 Tri-Chip LED Light Source

• Brightness advantage: ~3× higher luminous output per meter than 3528 strips (14.4W/m config delivers ~1400 lm/m), with no "dotty" LED hotspots
• Color accuracy: Tri-chip design enables tighter color mixing (no visible color fringing on dynamic effects) and supports 16-million-color RGB tuning via DMX512/SPI controllers
• Efficiency: 90% energy savings vs. traditional glass neon (12V/24V low-voltage drive, <30℃ surface temp)

2. Consistent & Stringent Wavelength Control (±3nm Tolerance)

• Incoming LED batch testing: Every SMD5050 reel is spectrograph-tested for wavelength deviation before production
• Rejected batches: Any lot with >±3nm deviation is scrapped (no exceptions for cost savings)
• Result: Identical glow across 10/50/100+ location rollouts, even years apart — critical for brand consistency

3. FPCB Protective Circuit Design

• 2oz thickened copper foil​ (vs. standard 1oz): Minimizes voltage drop on long runs (up to 10m per power feed) — no "bright head / dim tail" effect
• Parallel circuit segmentation: Every 3 LEDs (12V) / 6 LEDs (24V) form an independent parallel branch. If one LED fails, the rest of the run stays lit (no total strip failure like cheap series-only strips)
• ESD & surge protection: Built-in electrostatic discharge protection on FPCB pads, plus optional overcurrent protection for outdoor installs
• UL94-V0 flame-retardant FPCB substrate: Meets commercial building code requirements for public-space installs

4. First-Class Eco-Friendly UV-Resistant PVC Jacket

• RoHS/REACH compliant: Zero lead, mercury, or phthalates — safe for indoor public spaces (schools, hospitals, retail) and outdoor environments
• UV stabilizer additive: Resists photodegradation for 18–24 months of light outdoor exposure (covered patios, sign boxes, walkway outlines) without yellowing or brittleness
• Food-grade PVC formulation: Optional for hospitality/food retail installs where indirect food contact is a concern
• Note: For extreme outdoor (coastal, direct rain, 3+ years exposure), we recommend upgrading to our silicone co-extruded series — this PVC line is optimized for cost-conscious light outdoor/indoor-first projects.

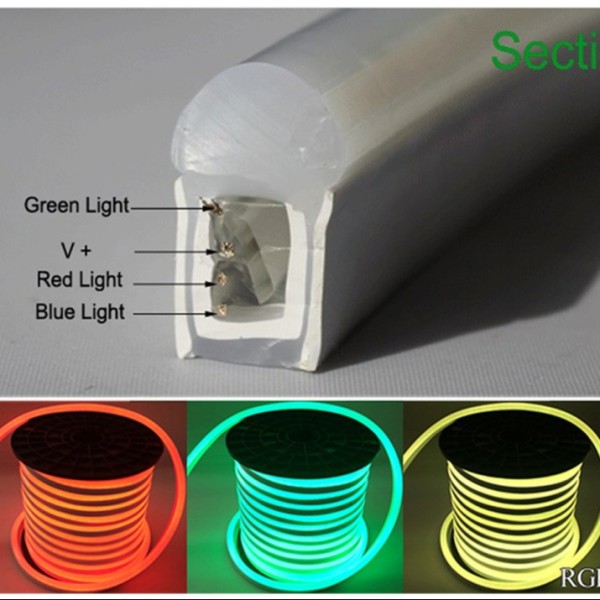

5. Dome Surface Profile: High Brightness + Even Color Mixing

• Built-in diffusion: The dome shape acts as a secondary diffuser, breaking up LED point sources into 120° uniform, continuous glow — zero visible LED dots, even on close inspection
• Optimized for tri-chip mixing: The rounded inner surface reflects and blends light from the 3 dies per SMD, eliminating color fringing (e.g., no red "halo" around green text) — critical for crisp brand logos and dynamic chase/gradient effects
• High luminous efficacy: 105–115 lm/W, so you get bright output without excessive power draw

6. Tool-Free Install, Cuttable & Reconnectable

• Marked cut points: Black cut lines every 5cm (12V) / 10cm (24V) along the strip — cut only at these points to avoid damaging circuits
• IP65 waterproof reconnect accessories: Matching nylon connectors + silicone sealant kits available — cut, connect, reseal in <5 minutes, retain full waterproof rating
• Mounting flexibility:
  • Indoor: 3M VHB double-sided tape pre-applied to FPCB backside
  • Outdoor: Compatible with standard aluminum extrusion channels (sold separately) for added protection and heatsinking
• Bend radius: 20mm minimum — follows curved building outlines, round signage, column wraps, and irregular landscape features without kinking

7. 100% Unbreakable & 100% Waterproof (IP65)

• Unbreakable: PVC jacket + flexible FPCB construction absorbs impacts that would shatter glass neon — survives shipping knocks, jobsite handling, and accidental kicks in high-traffic areas (retail aisles, event venues) with zero damage
• IP65 waterproof rating:
  • Injection-molded nylon end caps + potted silicone sealant at both strip ends
  • Jacket-to-FPCB bonding prevents water ingress at cut points when reconnected with our accessories
  • Tested to IP65 spray standards: Resists light rain, sprinkler overspray, and outdoor humidity — suitable for covered patios, sign boxes, and walkway outlines (not submersible — for immersion use, upgrade to our IP68 silicone series)

Typical Applications (PVC SMD5050 Series)

• Retail chain storefront outlines & logo backlighting
• Café/bar interior accent strips (under counters, shelf edges)
• Municipal park walkway guidance lighting
• Event/trade show temporary decor (reusable, shatterproof)
• Light-duty commercial facade outlines (covered entries)

Vasten Quality Backing

• 100% FPCB/LED incoming inspection
• 48–72hr mandatory burn-in per production batch
• 2-year pro-rata warranty
• CE / RoHS / EMC certified for global customs clearance
• Project pedigree: Supplied to Disneyland, Happy Valley, and British royal wedding installs (same QC bar across all product tiers)
