Specifications
Model Number :
GL-WF02
Place of Origin :
China
Brand Name :
Green lighting
Delivery Time :
10-15days
MOQ :
2piece
Payment Terms :
L/C,T/T,Western Union
Packaging Details :
A package contains a light, an instruction manual and a charger.
Supply Ability :
Ten thousand per month
Price :
Negotiable price
Description

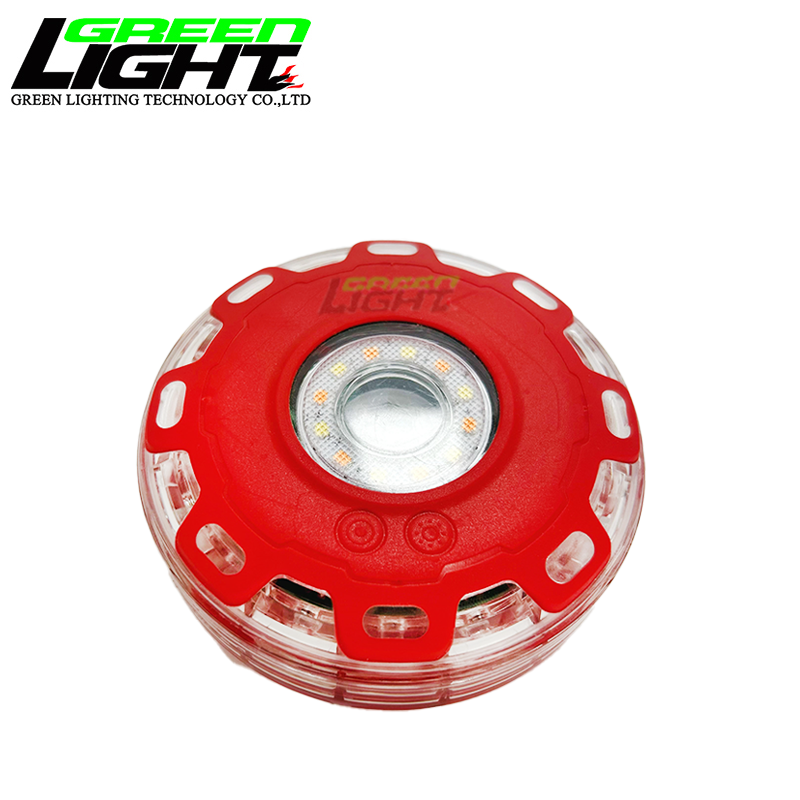

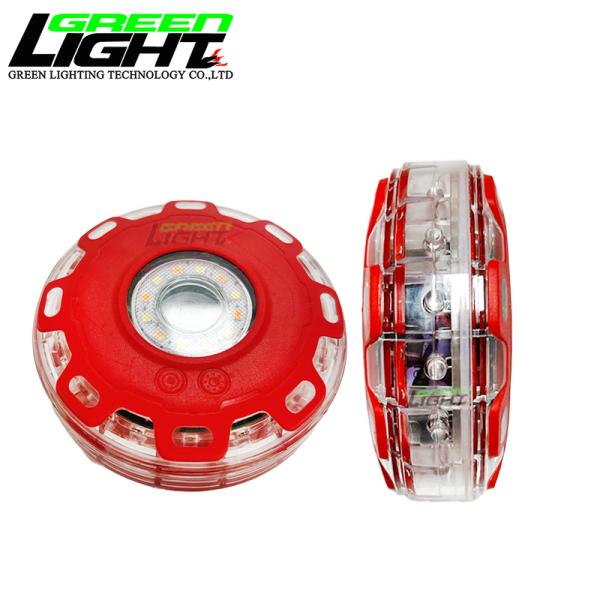

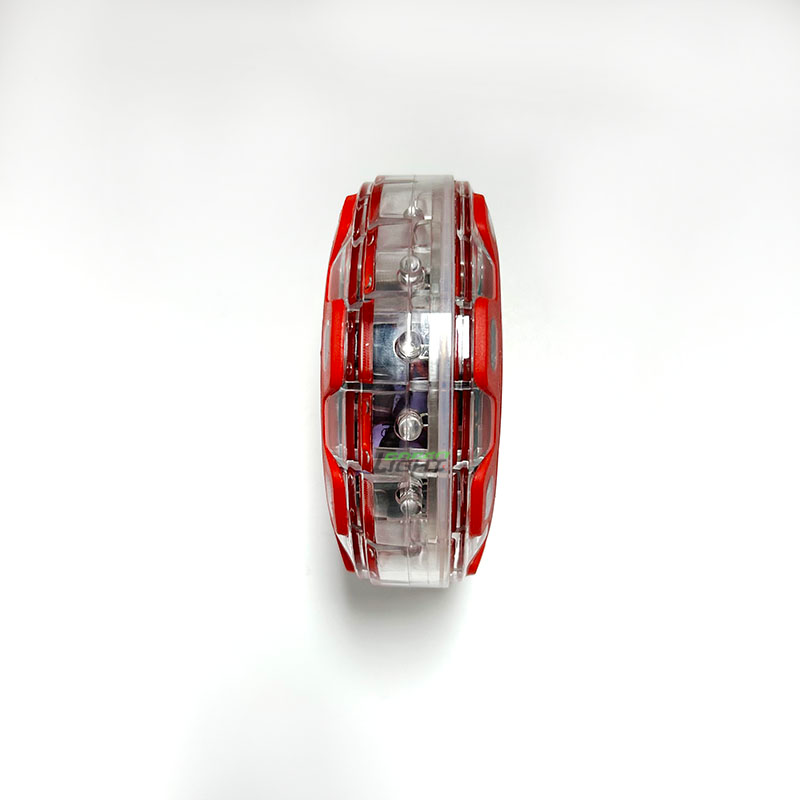

LED Rechargeable Warning Light for Traffic Road
High-visibility LED warning light designed for traffic and road safety applications with multiple lighting modes to satisfy different lighting requirements. Features a 2600mAh rechargeable Li-Ion battery and IP68 waterproof rating.
LED Warning Light designed for high visibility up to 1600 meters underwater with rechargeable battery and multiple colors LED Warning Light designed for high visibility up to 1600 meters underwater with rechargeable battery and multiple colors LED Warning Light designed for high visibility up to 1600 meters underwater with rechargeable battery and multiple colors LED Warning Light designed for high visibility up to 1600 meters underwater with rechargeable battery and multiple colors LED Warning Light designed for high visibility up to 1600 meters underwater with rechargeable battery and multiple colors LED Warning Light designed for high visibility up to 1600 meters underwater with rechargeable battery and multiple colors
Key Features
  • Built-in 2600mAh rechargeable Li-ion battery
  • Multiple color options available for different applications
  • Multiple lighting modes for versatile use cases
  • High protection grade: shatter-proof, crush-proof, waterproof, anti-explosive
  • Exceptional visibility: 300m daytime, 1000m evening, 1600m underwater
  • Compact size and lightweight (236g) for easy portability

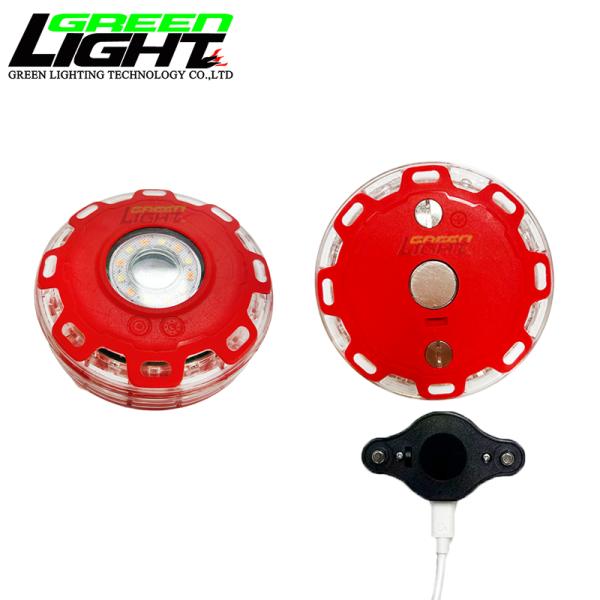

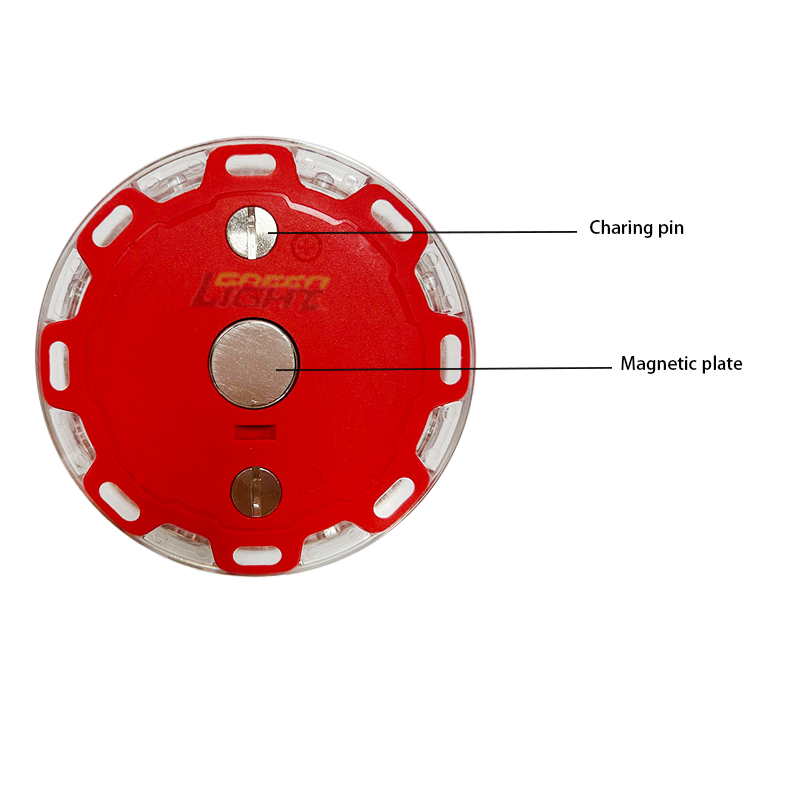

  • Magnetic adsorption capability for flexible mounting

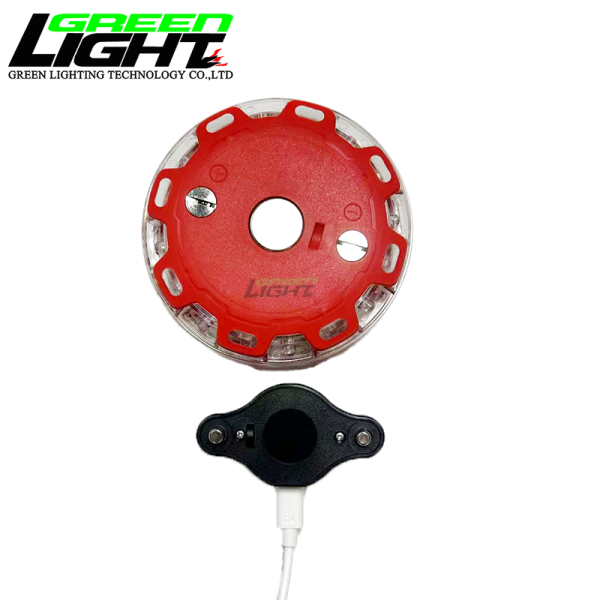

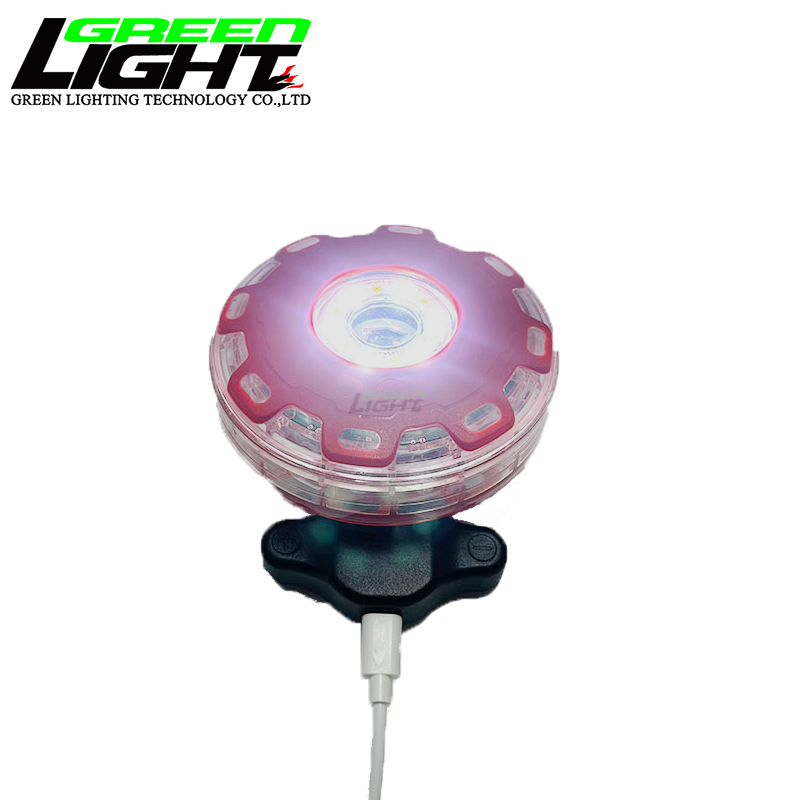

  • Optional charging box available
Technical Specifications
Model GL-WF02 Side Warning Lighting Center Work Lighting
Light Source 16 LEDs single color 12 white auxiliary lights
Light Current 7mA*16 LEDs=112mA 60mA - 120mA - 180mA

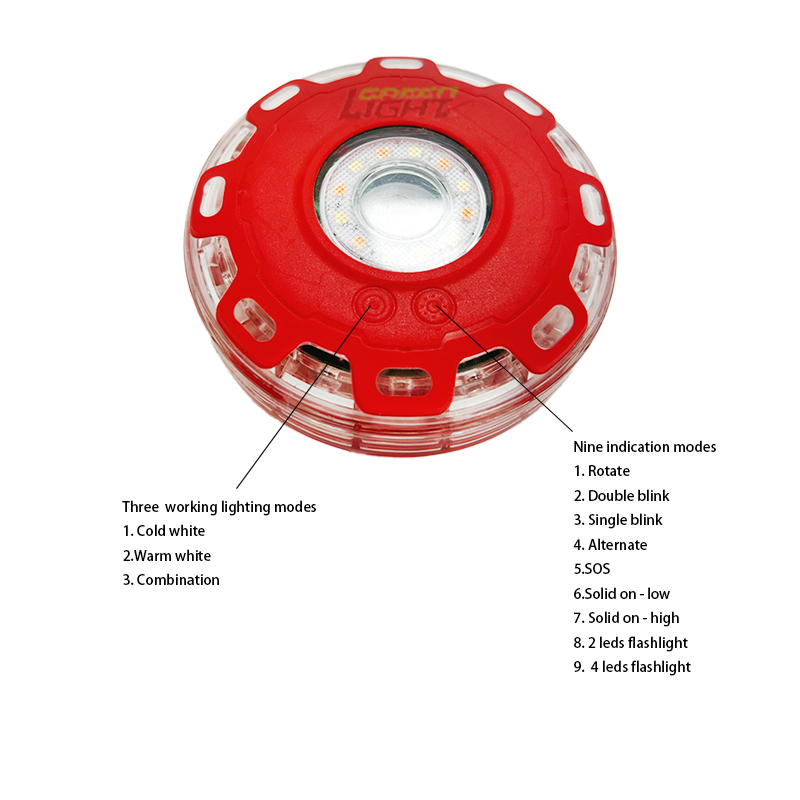

Light Modes 9 indication modes: Rotate, Double blink, Single blink, Alternate, SOS, Solid on (low), Solid on (high), 2 LEDs flash, 4 LEDs flash 3 work lighting modes: Cold white, Warm white, Combination
Wave Length R: 630 / G: 525 / B:465
Luminous Intensity R: 1500cd / G: 8000cd / B: 4000cd 35 Lm - 60 Lm - 90 Lm
Brightness 1500 Lux - 2200 Lux - 3000 Lux
Light Power 0.08W 0.25W - 0.45W - 0.67W
Working Time 100H 40H - 20H - 15H
Materials PC + silicone
Storage Temperature -20~+80 ℃
Rated Voltage 3.7V
Battery Capacity 2600mAh rechargeable 18650 Li-Ion battery
Battery Cycles 1000 Cycles
Dimension 105mm(Diameter) * 39mm(Height)
Weight 236g
Charging Current 1.5A
Charging Time 2H
Waterproof Grade IP68
Company Introduction

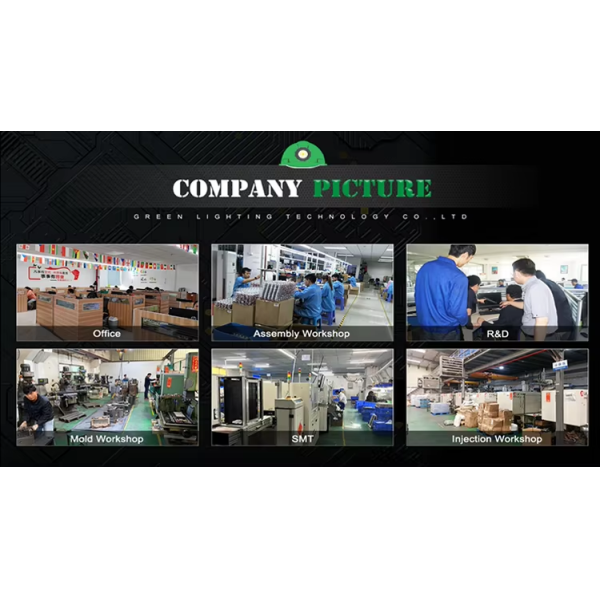

Green Lighting Technology Co., LTD (GLT) is an original manufacturer specializing in LED mining lights, explosion-proof flashlights, underground mining LED strip lights, charging racks, Miner belts, and portable emergency power stations. Our company is located in Shenzhen, and we have a professional R&D team to support customers' special customized requirements, providing complete after-service. Our products have been sold to around 60 countries, and we have obtained patents and certifications on the invention of several products.
LED Warning Light designed for high visibility up to 1600 meters underwater with rechargeable battery and multiple colors LED Warning Light designed for high visibility up to 1600 meters underwater with rechargeable battery and multiple colors LED Warning Light designed for high visibility up to 1600 meters underwater with rechargeable battery and multiple colors
Our Services
  • OEM/ODM services available for special mining lamps (LOGO, color, appearance, function, structure etc.)
  • High quality products with competitive pricing
  • Custom design services to suit your market requirements
  • One year warranty on all products
Customization Options
Appearance
Custom product shape, pattern and color based on market positioning
Electronic Circuit
Custom PCB design, LED drivers, charging circuits, and battery protection
Structural Design
IP68 Waterproof, ATEX explosion-proof, Dust-proof solutions
Optical Design
Custom light beam patterns based on LED luminous flux and requirements
Applications
LED Warning Light designed for high visibility up to 1600 meters underwater with rechargeable battery and multiple colors
Packing & Delivery
LED Warning Light designed for high visibility up to 1600 meters underwater with rechargeable battery and multiple colors LED Warning Light designed for high visibility up to 1600 meters underwater with rechargeable battery and multiple colors
Frequently Asked Questions
Q1. Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What is the lead time?
A: Sample needs 7-10 days, mass production time needs 25-30 days.
Q3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs (Depends on different type battery/battery pack).
Q4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.
Q5. How to proceed the order when customer order products?
A: Inquiry → Confirmation → Send Proforma Invoice → Customer make payment → Arrange production → Ship the goods to customers → Confirmation → Finish.
Q6. How to make this payment?
A: TT, Paypal, Western Union.
Q7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q8. Do you accept OEM/ODM?
A: Yes, it's available.
