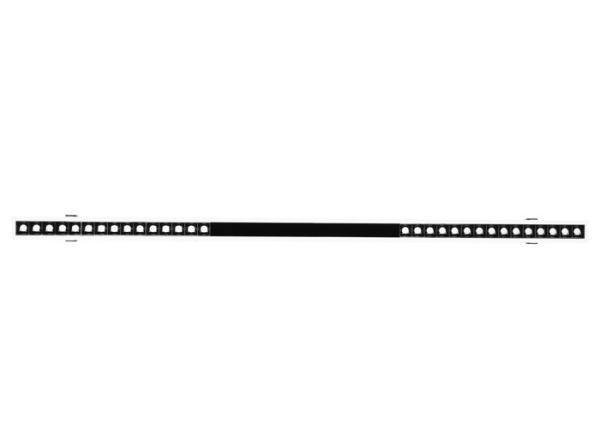

60 Hz Aluminium Strip LED Recessed UGR19 3000 - 6000k DALI Dimming IP20
60 Hz Aluminium Strip LED Recessed UGR19 3000 - 6000k DALI Dimming IP20
60 Hz Aluminium Strip LED Recessed UGR19 3000 - 6000k DALI Dimming IP20
60 Hz Aluminium Strip LED Recessed UGR19 3000 - 6000k DALI Dimming IP20
60 Hz Aluminium Strip LED Recessed UGR19 3000 - 6000k DALI Dimming IP20
60 Hz Aluminium Strip LED Recessed UGR19 3000 - 6000k DALI Dimming IP20
60 Hz Aluminium Strip LED Recessed UGR19 3000 - 6000k DALI Dimming IP20
60 Hz Aluminium Strip LED Recessed UGR19 3000 - 6000k DALI Dimming IP20
Specifications
Brand Name :
LEDFULGOR
Model Number :
FG03-4835-3L3C3L
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
40 PCS
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
40,000 pcs per month
Delivery Time :
8-12 work days
Packaging Details :
Inner Box: L130*W13*H7cm Outter Box: L132*W26.5*H15.5cm 8pcs/CTNS
Dimming :
No dimming, 0-10Vdimmer, DALI dimmer selectable
UGR :
<16
CRI (Ra>) :
≥80
Luminous Flux :
2200lm
Color :
White/Black
Warranty :
3 Years
Installation :
Recessed
Description

3000-6000k DALI Dimming IP20 LED Aluminium Profile Light 60 Hz Led Aluminum UGR19

Description:

Model Number FG03-4835-3L3C3L
Brand Name LED Fulgor
Voltage 220-240VAC 50/60Hz
Material Aluminum
LED Source SMD3030
LED Driver Lifud
Power 30w
dimming No dimming, 0-10Vdimmer, DALI dimmer selectable
Lighting Effect 70-80lm/w
Color Temperature(CCT) 3000K/4000K/5700K selectable
CRI (Ra>) ≥80
UGR <16
Luminous Flux 2200lm
Housing Aluminum White/Black
Beam Angle 15°30°45°selectable
Working Temperatue -20℃ to 55℃
IP Rating IP20
Working Lifetime 50000h
Warranty 3-years
Dimension L1209*W48*H35mm
Cut-out L1197*W43mm
Packing Size Inner Box: L130*W13*H7cm Outter Box:L132*W26.5*H15.5cm 8pcs/CTNS

Feature:


1. 48mm slim recessed linear lighting solution, designed to provide beautiful, dotless lighting.
2. High end and minimalist design, extrusion aluminum construction.
3. No dimming, 0-10v dimming or DALI dimming for optional.
4. Beam angle: 15°, 30°, 45° selectable.
5. Certificated external Lifud driver and famous branded LED chips.
6. Low glare less than 20.
7. Easy Installation: Recessed mounted.
8. Light can be Combine freely among Spotlight, Floodlight, Track light and Blind cover for different applications.
9. Applications: office, gallery, hotel, restaurant, school, warehouse, shop, market, etc.

Precautions:

1: Please check the lamp carefully before installing it.
2: Ensure the power is offer before wiring and installation.
3: To help ensure it's longevity, please do not use this lamp in corrosive conditions.
4: If there is any damage to the lamp cord, please cut off the power and stop using it immediately.
5: Please do not retrofit the lamp within the warranty period.
6: To ensure the normal work of the lamp, please use the voltage indicated on the packing.

Routine maintenance:

1: To ensure better lighting, please clean LED lights once a year.
2: Please make sure the power is off before your maintenance work.
3: To avoid any damage to the lamp, please do not use a chemical solvent during routine maintenance.
4: If you need to replace any components or cords of the lamp, please choose those having the same specifications.
