221x70mm LED Street Light Module SMD 5050 Waterproof For Parks
221x70mm LED Street Light Module SMD 5050 Waterproof For Parks
Specifications
Brand Name :
ChenMu
Model Number :
CM-SZ22170-XX-40W
Certification :
CE,RoHS
Place of Origin :
Zhejiang,China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000PCS/Per week
Delivery Time :
7-10 working days
Packaging Details :
In Carton Box
Light source :
LED
Ip rating :
IP65,IP66/IP67/IP65
Item type :
Street Lights
Working lifetime(hour) :
50000
Warranty(year) :
5
Lamp luminous efficiency(lm/w) :
130
Color temperature(cct) :
Cool White,Warm White,5000K,2700K-6500K,3000-7500
Led light source :
Lumileds,SMD3030,SMD,LED
Application :
ROAD,highways,parks,Square,Residential
Description

40W SMD 5050 Led 221*70mm Waterproof IP66 For LED Tunnel Lighting Moudle

Detailed

Distribution Module Size
(mm)		 Lens Size
(mm)		 Power LED LED
QTY		 Warranty
CM-S220-XX-30W 250x70x40 221x70 30W 2835&3030 30 5years
CM-S220-XX-40W 250x70x40 221x70 40W 2835&3030 40 5years
CM-S220-XX-50W 250x70x45 221x70 50W 2835&3030 50 5years
CM-S220-XX-60W 250x70x45 221x70 60W 2835&3030 60 5years
CM-S220-XX-64W 250x70x45 221x70 60W 2835&3030 64 5years
CM-S220-XX-5050-28P 250x70x45 221x70 30-60W 5050 28 5years
CM-S220-XX-5050-40P 250x70x45 221x70 30-60W 5050 40 5years
CM-S220-XX-5050-50P 250x70x45 221x70 30-60W 5050 50 5years

Description

  • 40W SMD 5050 Led 221*70mm Waterproof IP66 For LED Tunnel Lighting Moudle
  • This is a technical specification describing an LED module. The module uses SMD 5050 LED chips, with a power output of 40W to provide high brightness lighting.
  • 5050 LED chips are surface mount LEDs with high efficiency and low power consumption, suitable for various indoor and outdoor applications.
  • the module includes a driver circuit and heatsink for efficient and safe operation.
  • The product has the function to change the ray of light, it is made of optical material, the effect shall be influenced once pollute. Please do not open the packing before use it,to avoid the dust pollution.

Specifications

Product Name: CM-SZ22170-XX-40W
Beam Angle: 90°/80*150/90*120
Temperature: 4500~5700
Ambient temperature range: -40℃～+50℃
Lumen s Flux(Type.) >130lm/W
Heat sink AL Extrusion 6063
LIFE SPAN ≥50000 小时 @Ta=25℃
Application: Flood Lighting,Led Street Lighting ,Tunnel lighting
WARRANTY: 5 Years
Quatity Guarantee: If you receive a defective item, please
email us a picture of the defective part. We will arrange for a reshipment or refund to you.
Main Maket Europe,South America,North America,Asia ect

Shipping and Delivery


Trade Terms:		 EXW , FOB , CNF , CIF
Payment Terms: T/T , PayPal , Western Union, Moneygram
Delivery time: 2-3 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc

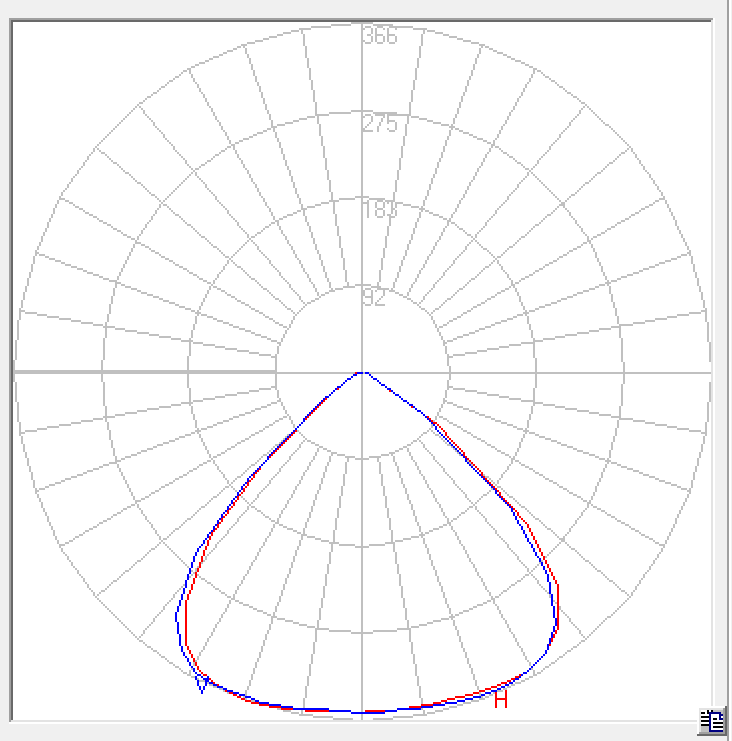

IES

221x70mm LED Street Light Module SMD 5050 Waterproof For Parks

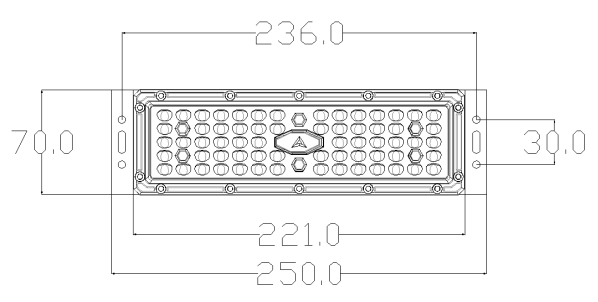

Drawing

221x70mm LED Street Light Module SMD 5050 Waterproof For Parks

Notices

  • It is strictly forbidden to squeeze during transportation, and it is forbidden to be subjected to violentmechanical impact and exposure to rain.
  • Store in a cool, dry, clean environment.
  • Read the product specifications carefully before use to avoid accidents or damage.
  • Please check carefully before use. If you find any abnormality during use, please contact us.
  • When using, the surface of the module has a certain temperature rise, which is a normal phenomenon. It is strictly forbidden to touch the light source by hand.
  • Before installation, you must ensure that the module is intact and ready for installation.
  • Do not apply external force or throw to the module.
  • Select the drive power, pay attention to the voltage range and drive current, and use it with the module.
  • When installing the module, pay attention to the direction of the arrow, and the arrow should point
    to the side of the road.

FAQ

1) Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Mixed samples are acceptable.

2) When can I get the quotation?

A: We usually give you an offer within 12 hours after we get your inquiry. But if you want to get the offer ASAP,please call us or email us that we can reply to you in time.

3) What is the lead time?

A:Sample needs about 3-5 days prepared; mass production time needs 7-10 days normally.

4) What are your main products?

A: Our main products are outdoor lenses and indoor lenses .such as:Street &AREA Light lens ,Single lenses,High Bay Light ,ect.
