High Quality 135lm/w 100W 150W 200W LED Gas Station Lights Support SKD Lamp Kit Canopy Lights for Petrol Stations
High Quality 135lm/w 100W 150W 200W LED Gas Station Lights Support SKD Lamp Kit Canopy Lights for Petrol Stations
Specifications
Brand Name :
VIKSTARS
Model Number :
VS-FB94-B
Certification :
CE, CB, ROHS, AS Required
Place of Origin :
Guangdong, China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
16000pcs per Month
Delivery Time :
15-25 days
Packaging Details :
ITEM: VS-FB94-B10 QTY/CTN : 1pc/ctn, CTN SIZE: 46.5*46*11.5cm
Lamp Power :
100W/150W/200W
Efficiency :
Die-casting Aluminum + PC
PF :
>0.95
Voltage :
85-265Vac
Waterproof :
IP65 Waterproof
Warranty :
2 Years Warranty
Description

High Quality 135lm/w 100W 150W 200W LED Gas Station Lights Support SKD Lamp Kit Canopy Lights for Petrol Stations

​PARAMETERs​
LAMP NAME
LED Gas Station Lights
MODEL NO.
VS-FB94-B10
 VS-FB94-B15
VS-FB94-B20
POWER 100W 150W
200W
BEAM ANGLE
100-120°
VOLTAGE
85-265Vac
C.R.I.
70Ra
LIFESPAN
＞50000hrs
PF
＞0.95
CCT
Default: Cold White (Warm White / Neutral White for option)
WORK TEMP -20 - 50℃
IP RATING
IP65
MATERIAL
Die-casting Aluminum heat sink + Tempered glass/ White
INSTALL HEIGHT 1-20m
INSTALL WAY
Ceiling Install
LAMP SIZE
 380*380*70mm
420*420*67mm
PACKING
Export Neutral Carton Packing / VIKSTARS Brand Packing / Customizing Packing

SOLUTIONs

SOLUTION
Project Solution
 Top-level Solution
LUMEN EFFICIENCY 135lm/w
＞135lm/w
LEDs TYPE
Big chip 3030
 Brand 3030
DRIVER VIKSTARS Self-Developed Driver Global Certified Brand Driver
WARRANTY 3 Years 5 Years
REAL PHOTOs​
INSTALLATIONs

Ceiling Installation Steps:
1. Drill a hole larger than 40mm in the ceiling.
2. Mount the fixture on the ceiling, mark the four mounting holes, and drill the four holes.
3. Connect the wires properly, ensuring they are well protected to avoid potential safety accidents.
4. Insert rubber plugs into the four holes, align the mounting kit with the rubber plugs, and fix the fixture to the ceiling with screws, ensuring no wires are pinched during installation.
5. After installation, seal the lamp and the mounting surface with waterproof glue.
​ SIZEs​
Manually Measured, Tolerances Is Possible
PACKING

Item
 Carton Size QTY/CTN G.W.
Packing
100W
465*460*115mm
1pc/ctn
4.40kg
Export Neutral Carton Packing
/VIKSTARS Brand Packing
/ Customizing Packing
150W
7.10kg
200W
DETAILs
High Quality 135lm/w 100W 150W 200W LED Gas Station Lights Support SKD Lamp Kit Canopy Lights for Petrol Stations
High Quality 135lm/w 100W 150W 200W LED Gas Station Lights Support SKD Lamp Kit Canopy Lights for Petrol Stations

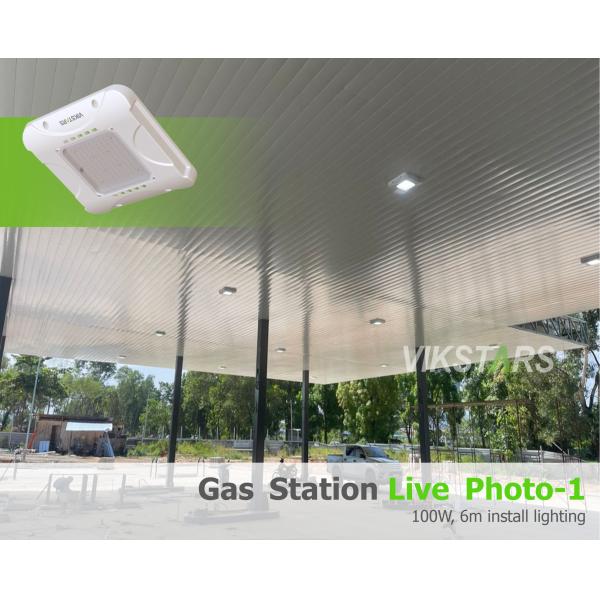

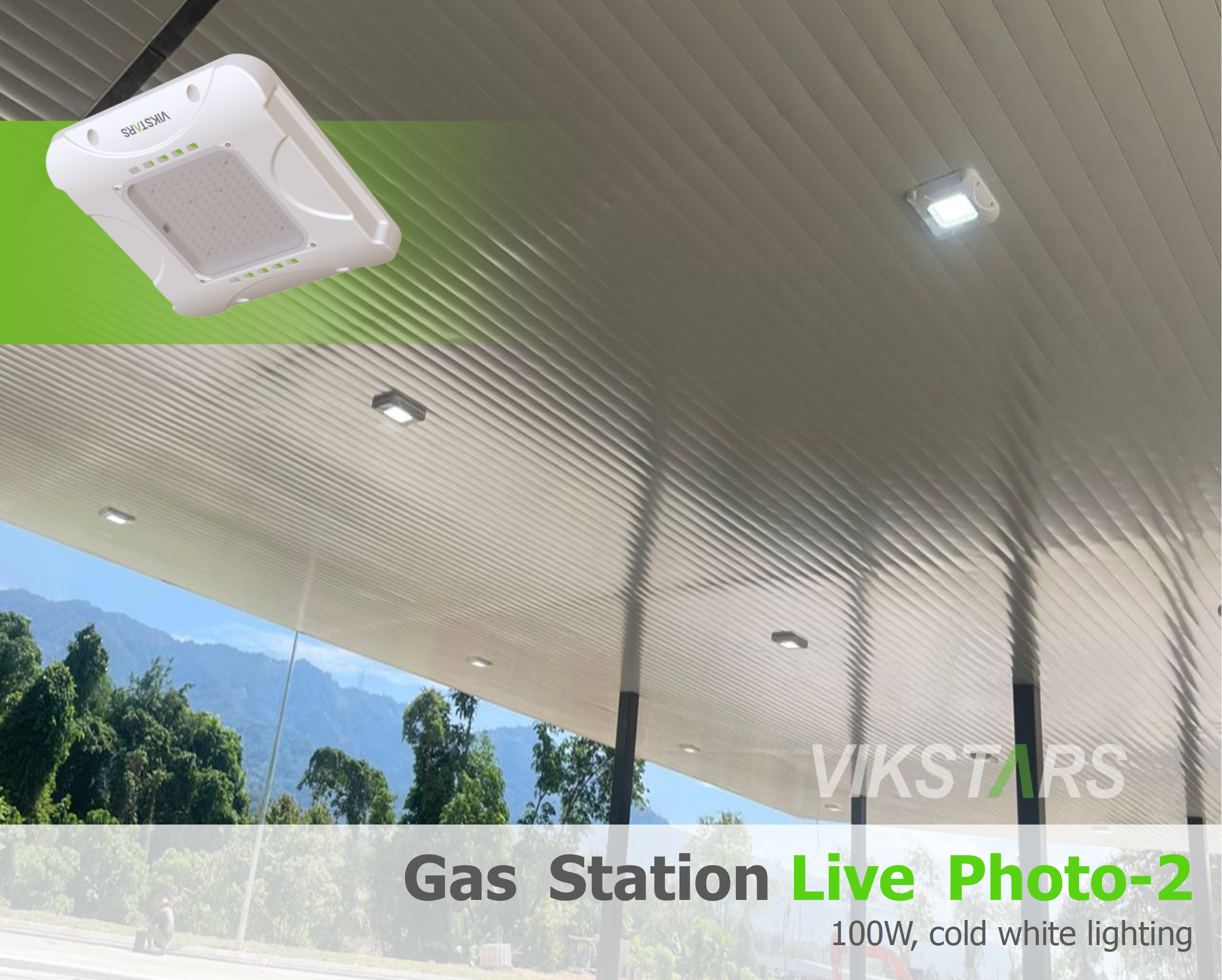

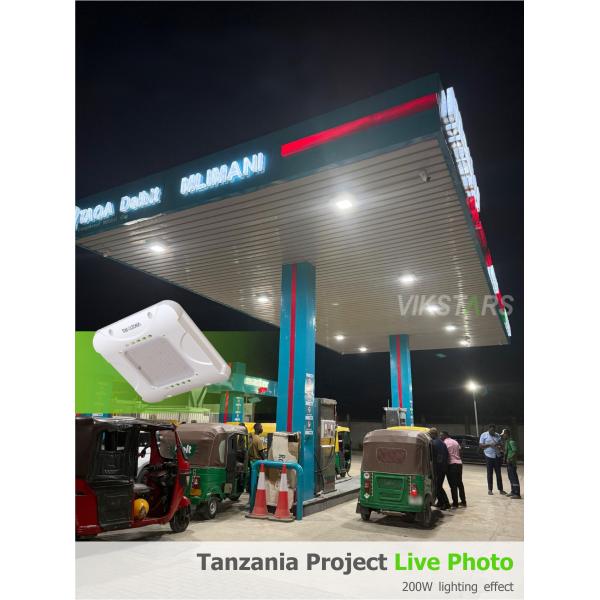

PROJECTs Live Photos
High Quality 135lm/w 100W 150W 200W LED Gas Station Lights Support SKD Lamp Kit Canopy Lights for Petrol Stations
High Quality 135lm/w 100W 150W 200W LED Gas Station Lights Support SKD Lamp Kit Canopy Lights for Petrol Stations
High Quality 135lm/w 100W 150W 200W LED Gas Station Lights Support SKD Lamp Kit Canopy Lights for Petrol Stations
