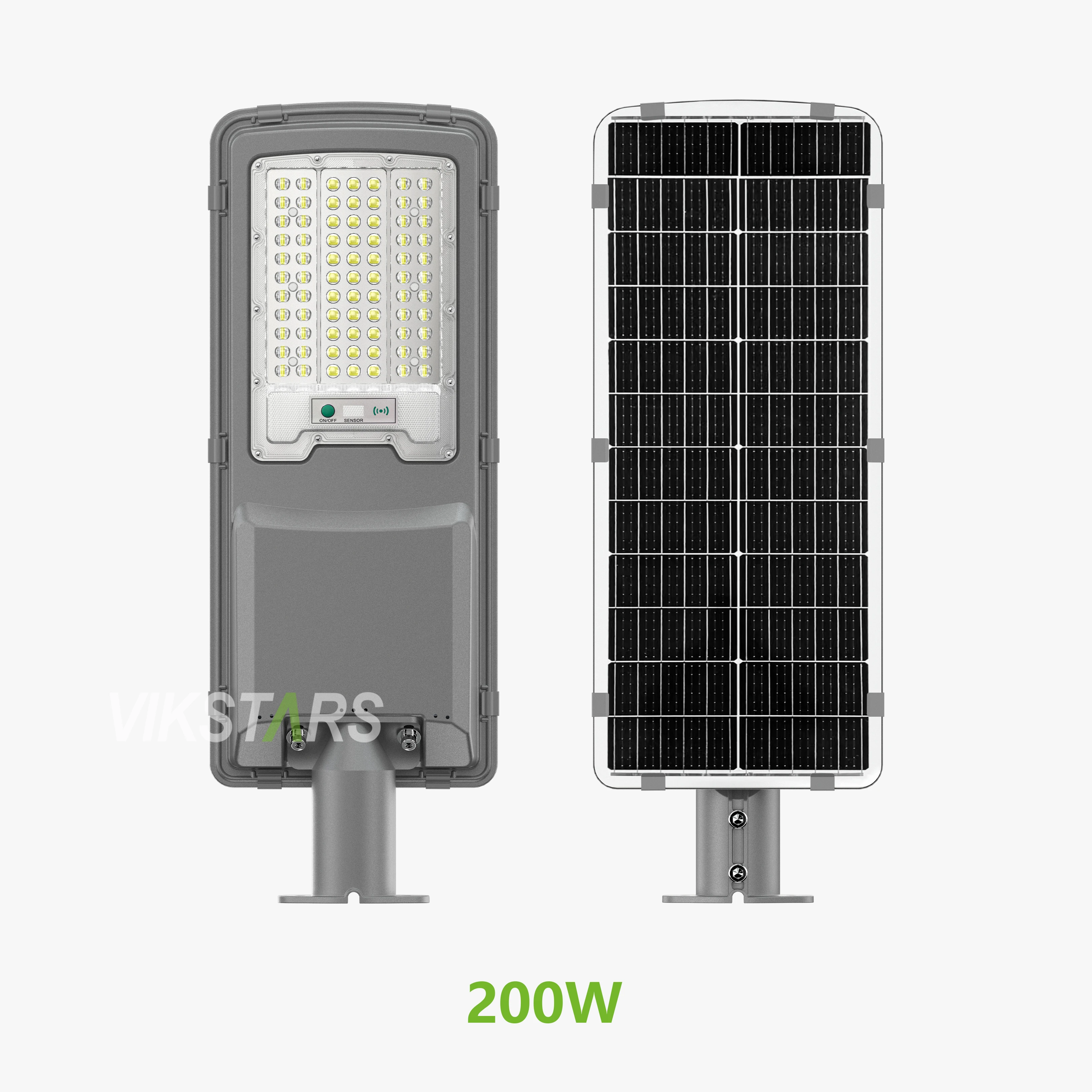

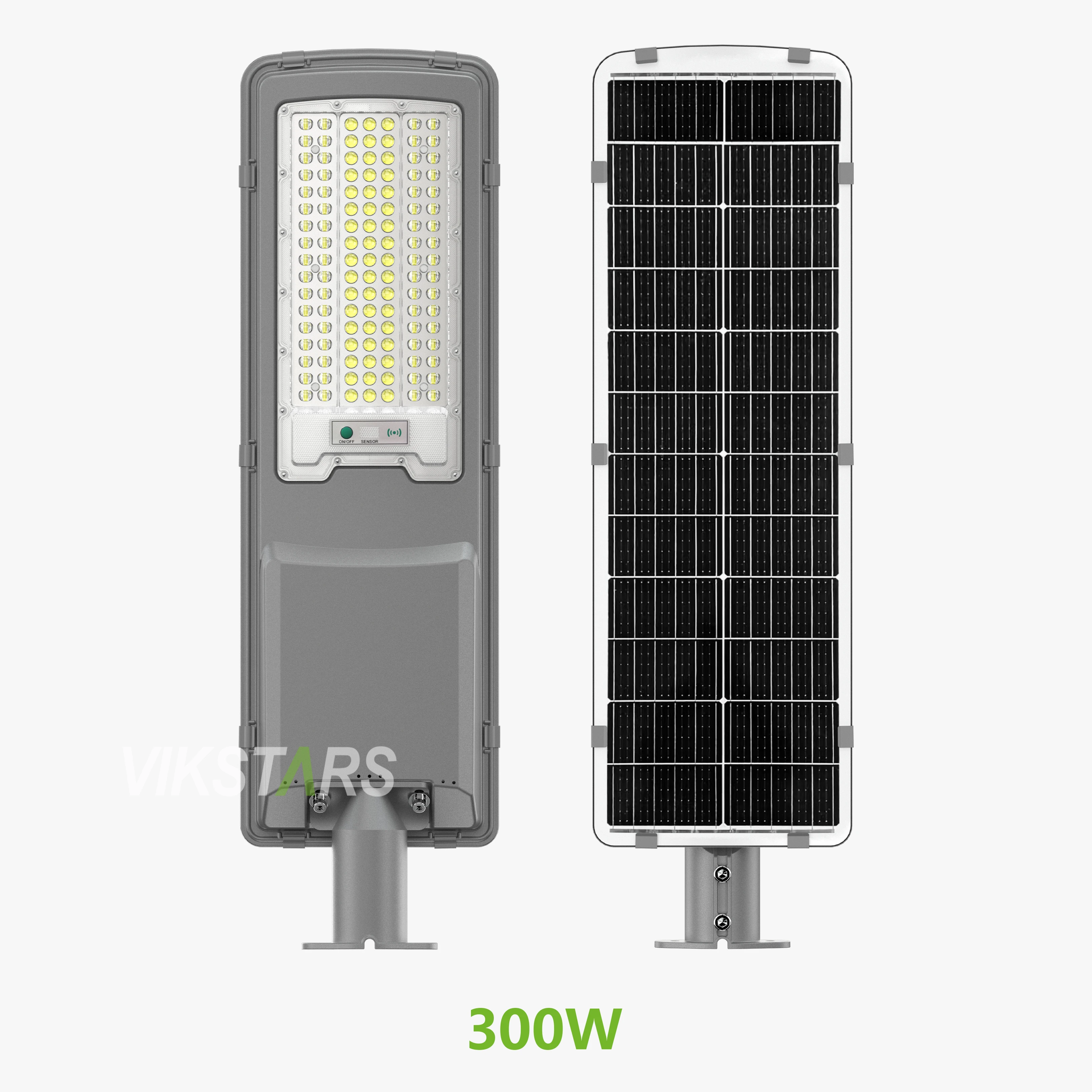

Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Specifications
Brand Name :
VIKSTARS
Model Number :
VS-LH-F
Certification :
CE, CB, ROHS, AS Required
Place of Origin :
Guangdong, China
MOQ :
20pcs
Payment Terms :
T/T, Western Union
Delivery Time :
15-25 days
Packaging Details :
VS-LH-F20, Lamp Size: 66.3*24*9cm, QTY/CTN: 5pcs/ctn, CTN SIZE: 67.5*50*26.5cm
Power :
200W/300W
Solar Panel :
Mono 5V 25W / Mono 5V 35W
Battery :
3.2V 20AH / 3.2V 35AH
Material :
Galvanized steel + pc
Last Time :
16-18 hours
Install Height :
3-6m
Description

Latest Integrated Solar Street Lights Outdoor 600W 800w 1000w 1200w Lamp for Road Lighting with Light Sensor Solar Lamps

Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole

PARAMETERs
LAMP NAME
INTEGRATED SOLAR STREET LIGHT
MODEL NO.
VS-LH-F20
 VS-LH-F30
POWER
200W
 300W
BATTERY 3.2V 20AH 3.2V 35AH
SOLAR PANEL Mono 5V 25W Mono 5V 35W
LUMEN
1300lm
 2340lm
LED QUANTITY 5054*77pcs 5054*119pcs
BEAM ANGLE 70*140°
CCT
Default: Cold White
C.R.I. >70Ra
CHARGE TIME
4-6 hours
LASTING TIME 3-5 rainy days
INSTALL HEIGHT 3-4m 5-6m
LIGHTING AREA 20-30㎡ 30-40㎡
WORKING MODE
Light Sensor + Motion Sensor / Light Sensor + Time Control

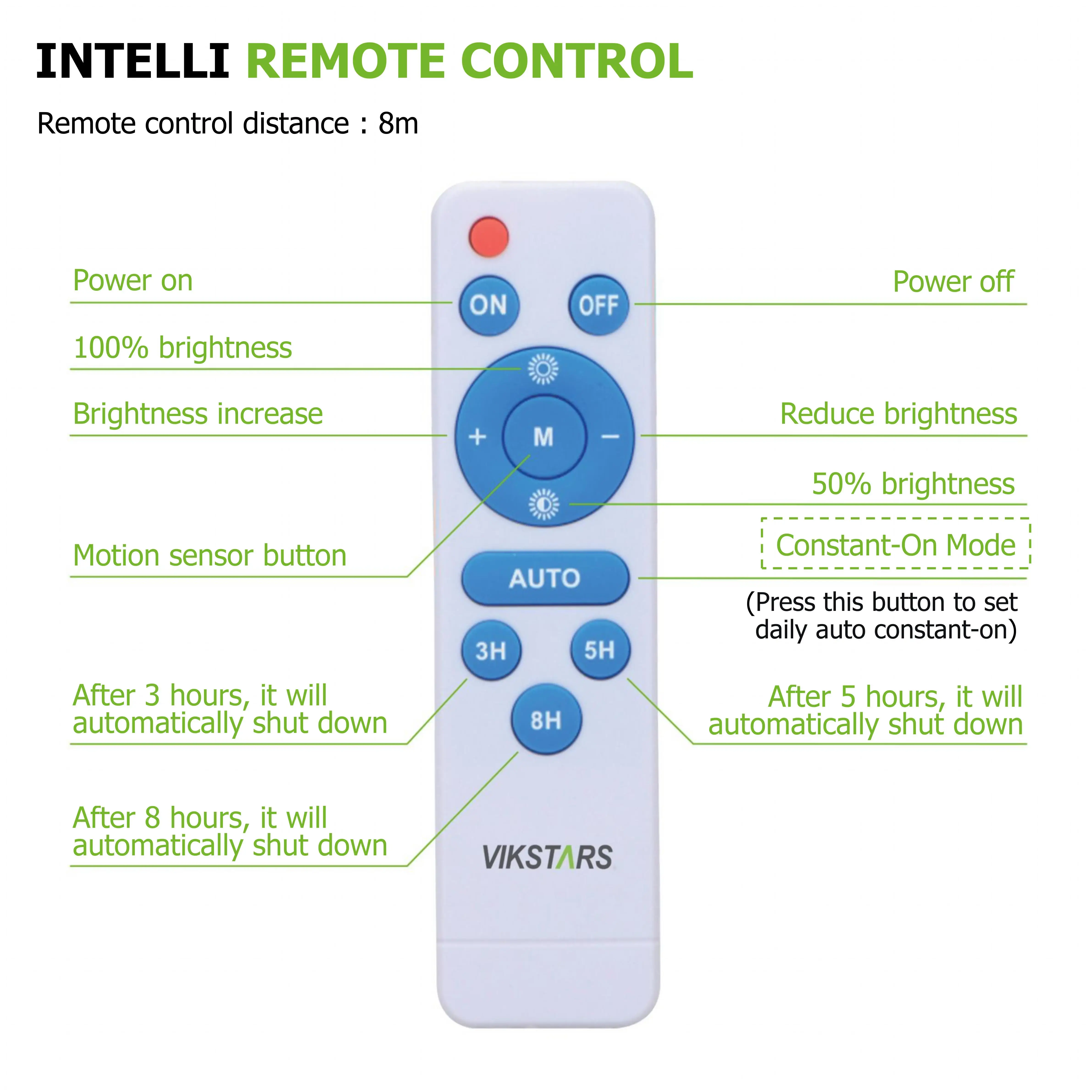

( Supports two modes at the same time, switch via remote control )
INSTALL WAY Horizontal Install / Vertical Install
WATERPROOF IP66
MATERIAL Galvanized Steel Heat Sink + PC Lens / Sand Grey
LAMP SIZE 663*240*90mm 835*240*90mm
SOLAR PANEL SIZE 566*236mm 736*236mm
PACKING
Individual inner color box packaging
(not include lamp pole, need to buy additionally )
WARRANTY 5 years

​WORKING MODE​

Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole

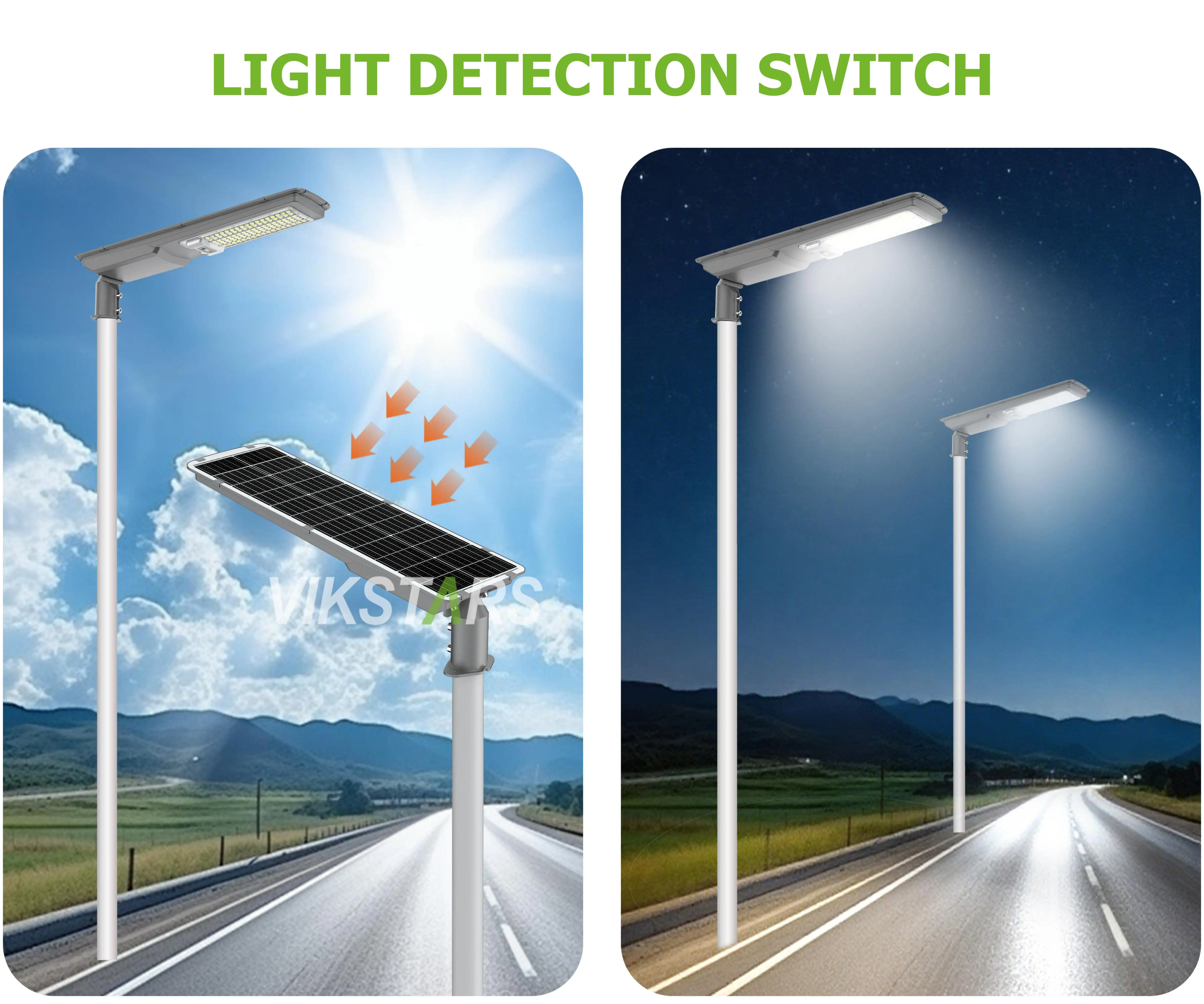

AT DAY - AUTO CHARGE
Indicator light flashes, auto charges,
fully charged in 4-6 hours,
can also be charged in the cloudy / rainy days
AT NIGHT - AUTO LIGHT UP
When built-in Light sensor detects darkness,
the lamp auto lights up,
can last 3-5 rainy days after fully charged

Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole

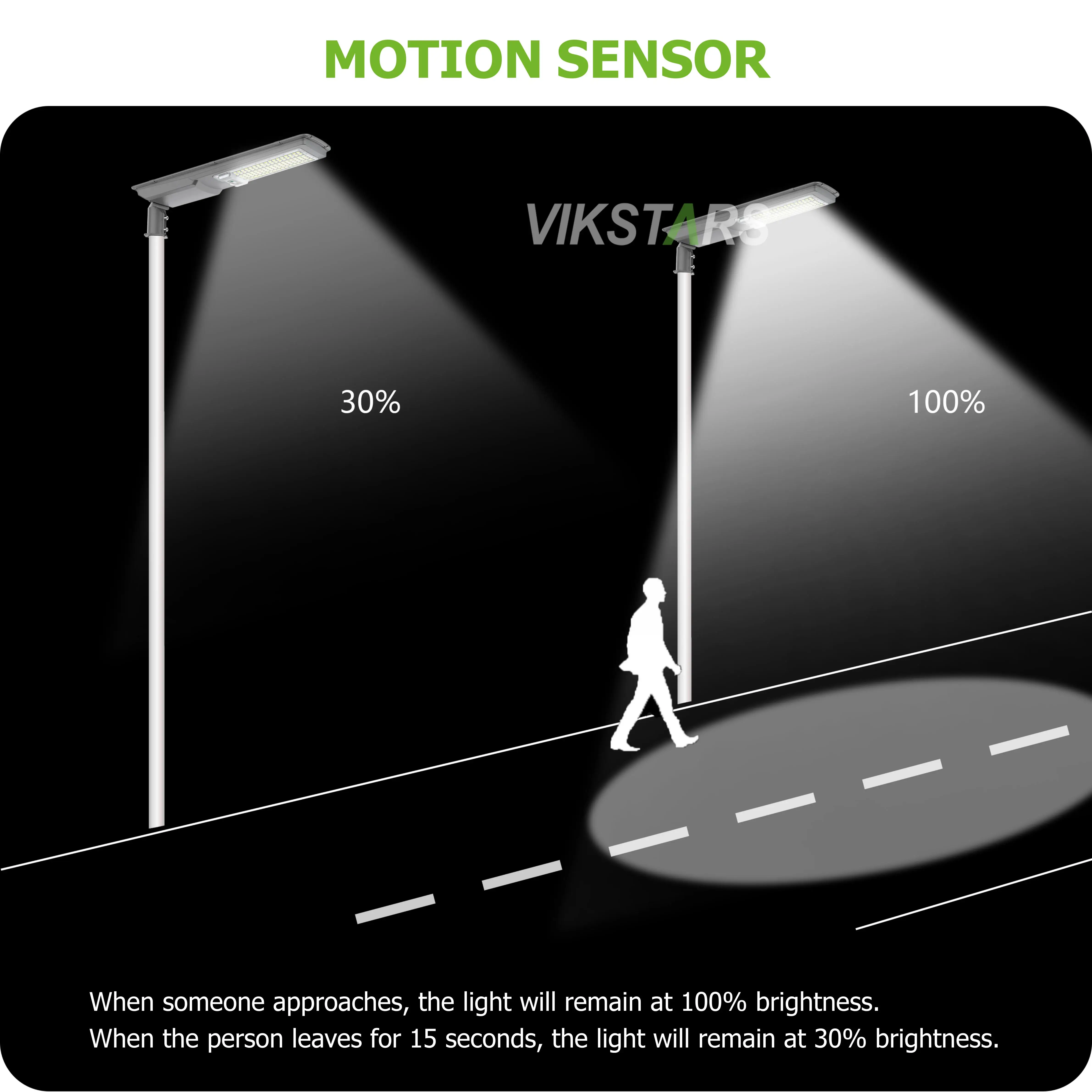

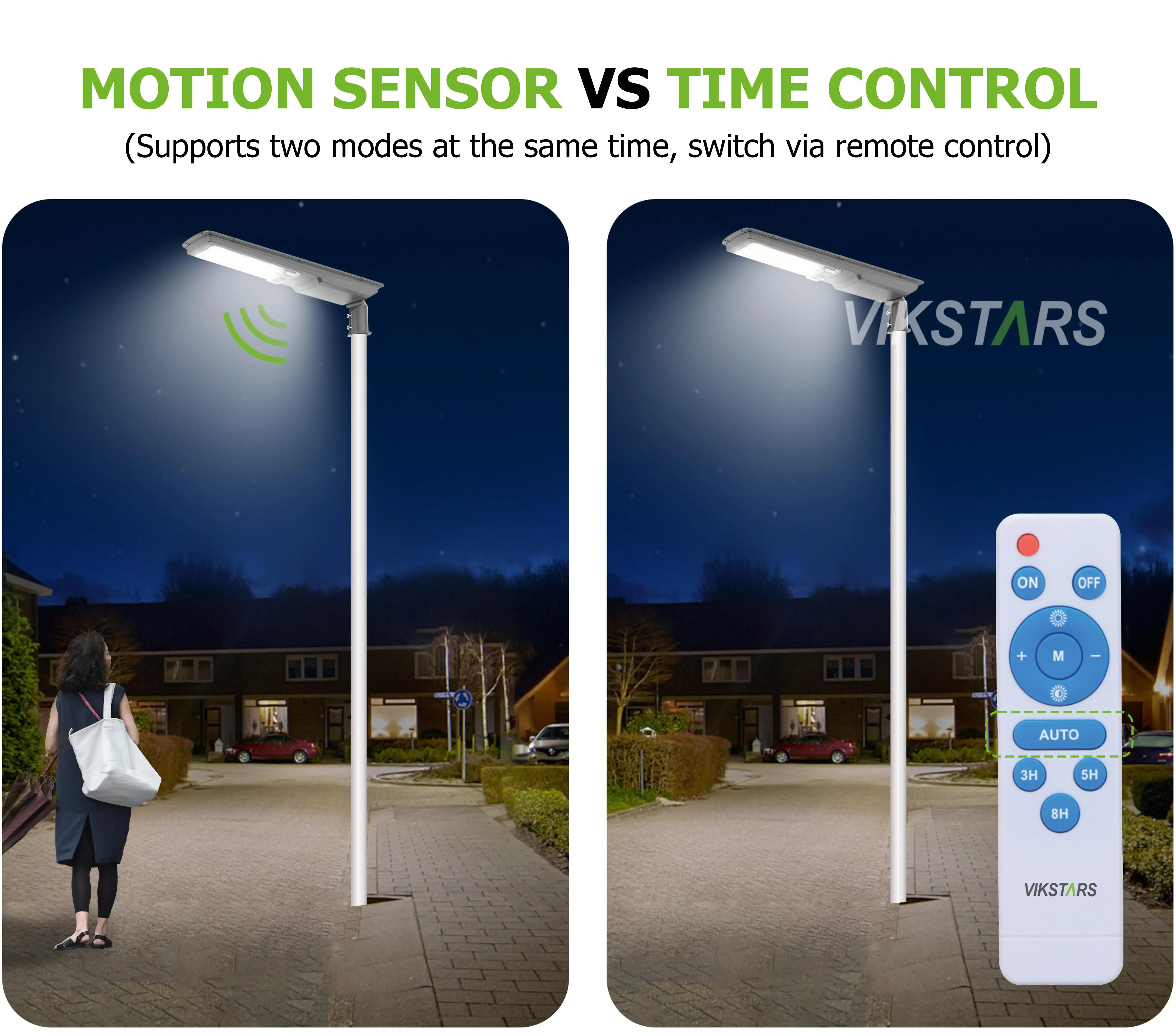

MOTION SENSOR
People come, 100% brightness
People leave after 15s, 30% brightness
TIME CONTROL
Constant-on mode dimming schedule:
100% brightness (30min) → 70% (1.5h) →
50% (4h) → 40% (1h) → 25% (1h) → 20% (4h),
daily cycle.

The above are default settings, for customization, pls comfirm with us in advance,
as it can be reconfigured before shipment)

Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole

Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole

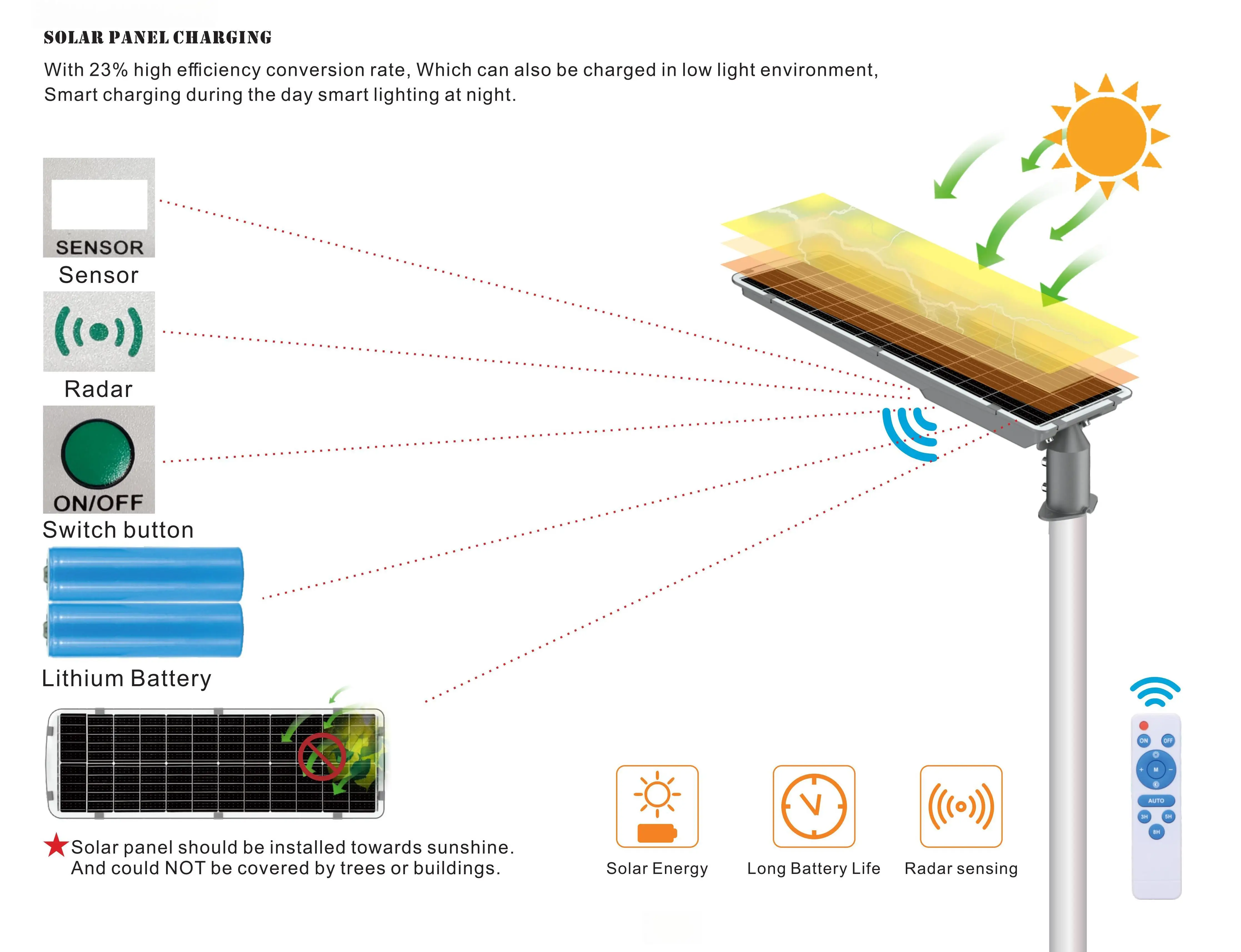

WORKING PRINCIPLE
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole

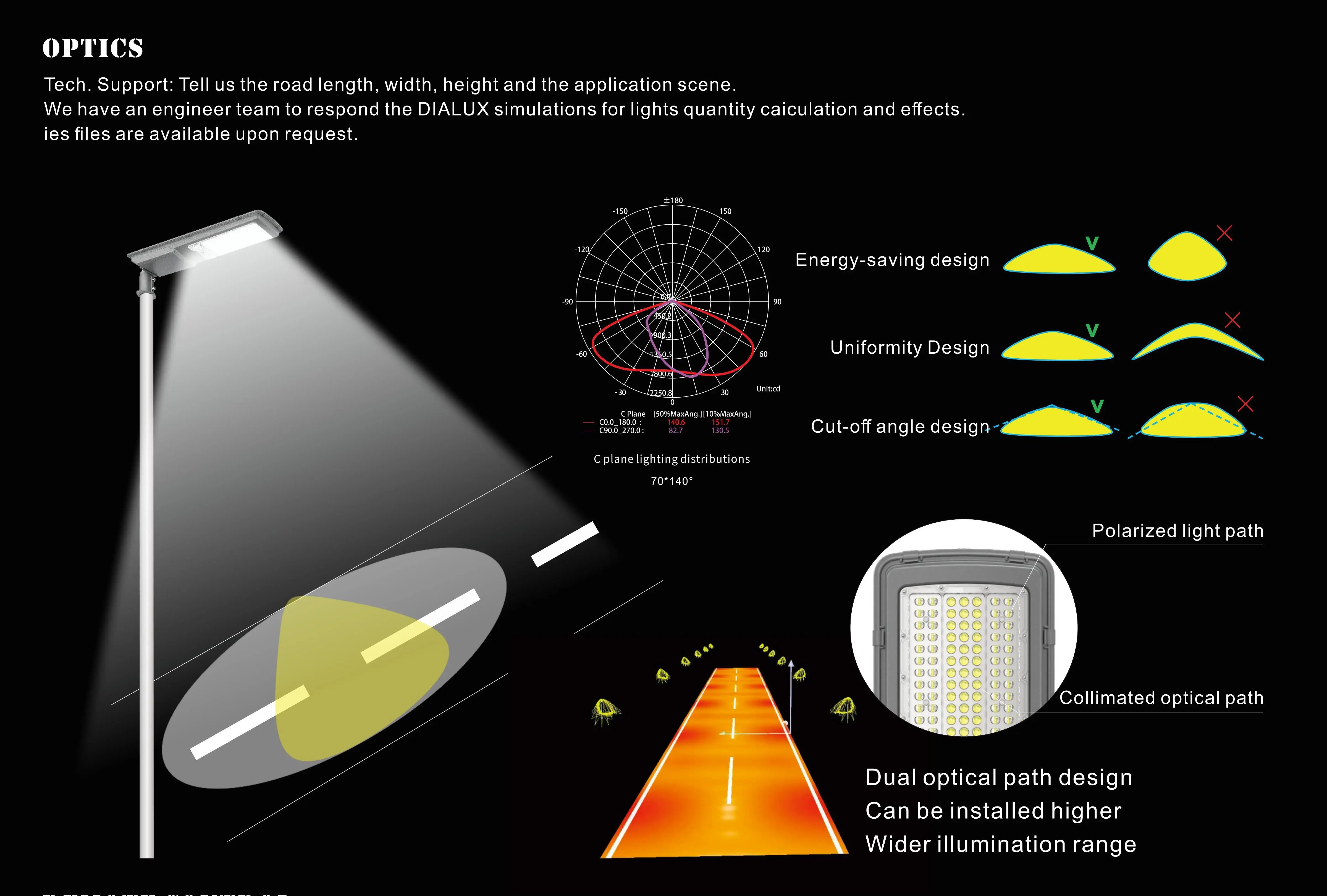

DESIGN PHILOSOPHY
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole

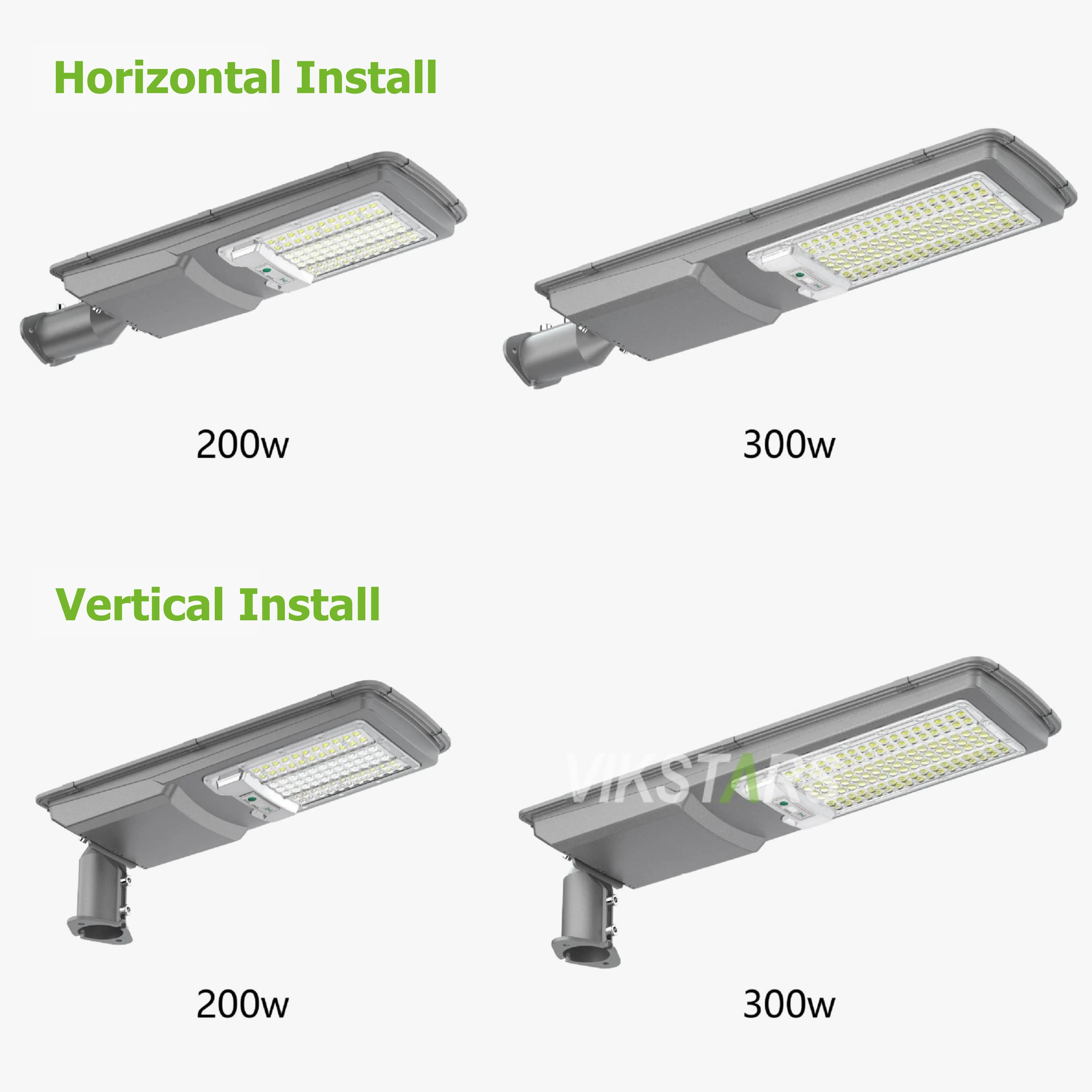

INSTALLATIONs
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole

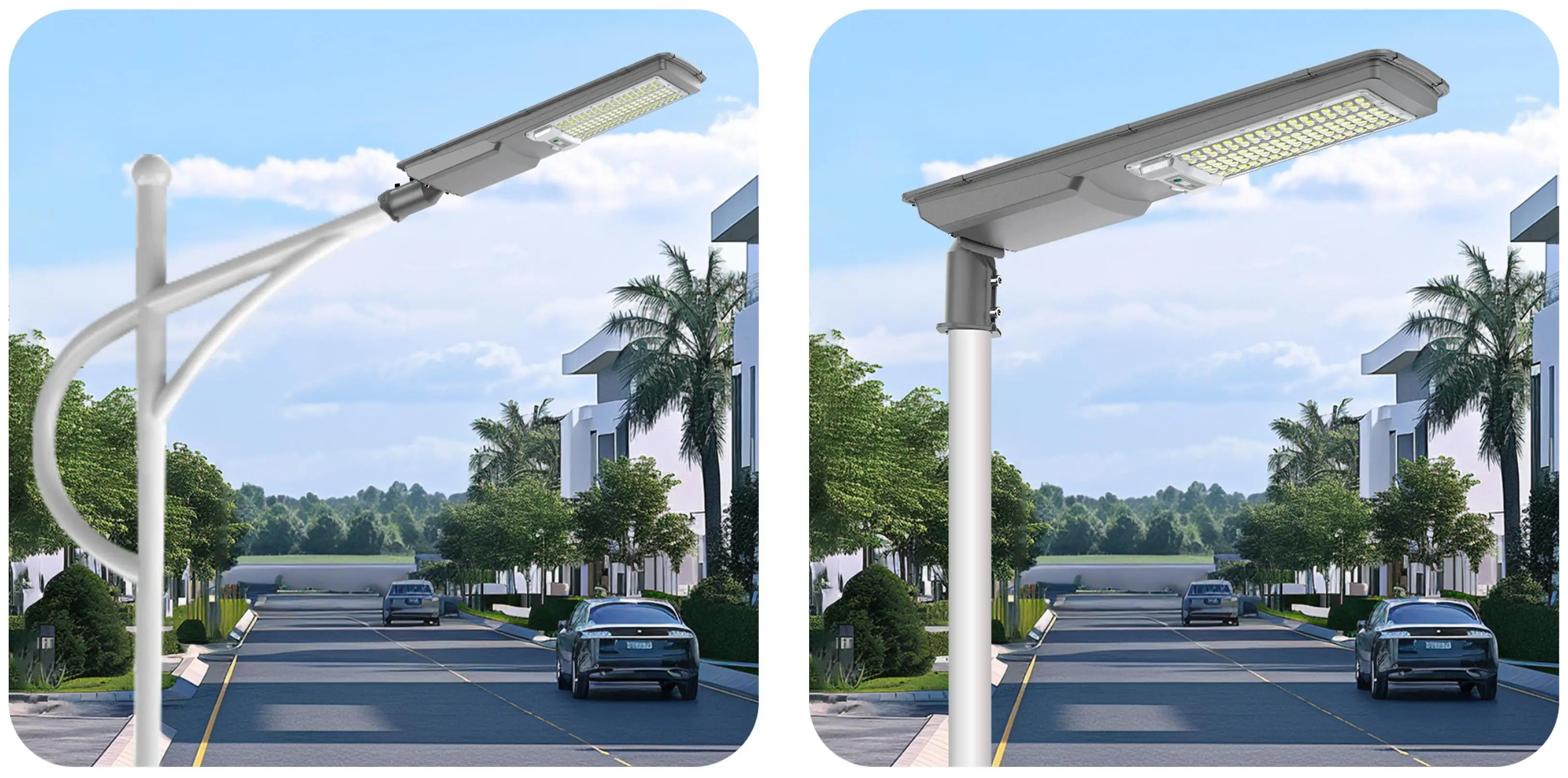

Straight Arm Install

Horizontal Installation

Adjustable Arm Install

Horizontal / Vertical Installation

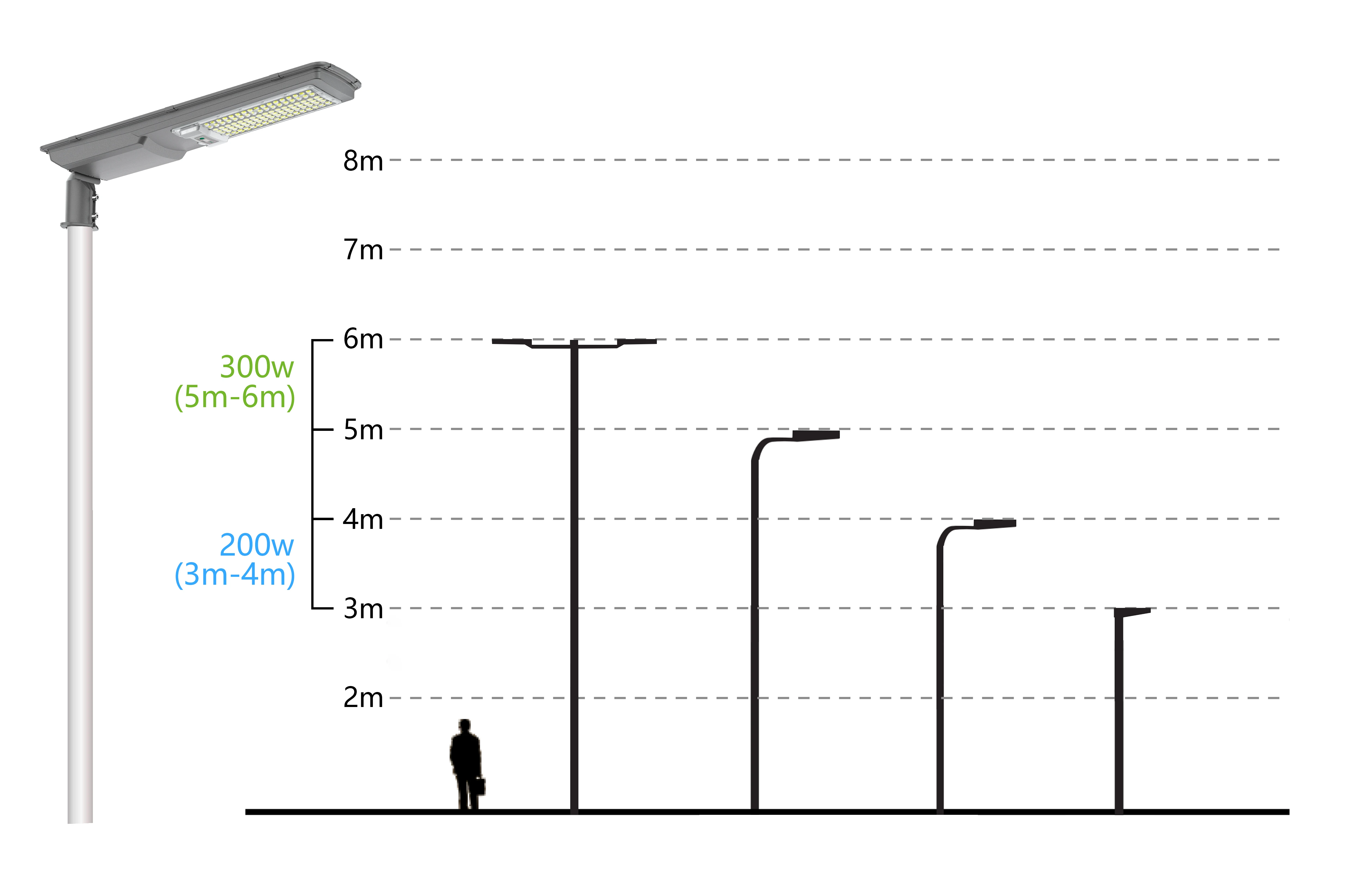

INSTALL HEIGHT

Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole

​REAL PHOTOs​

Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole

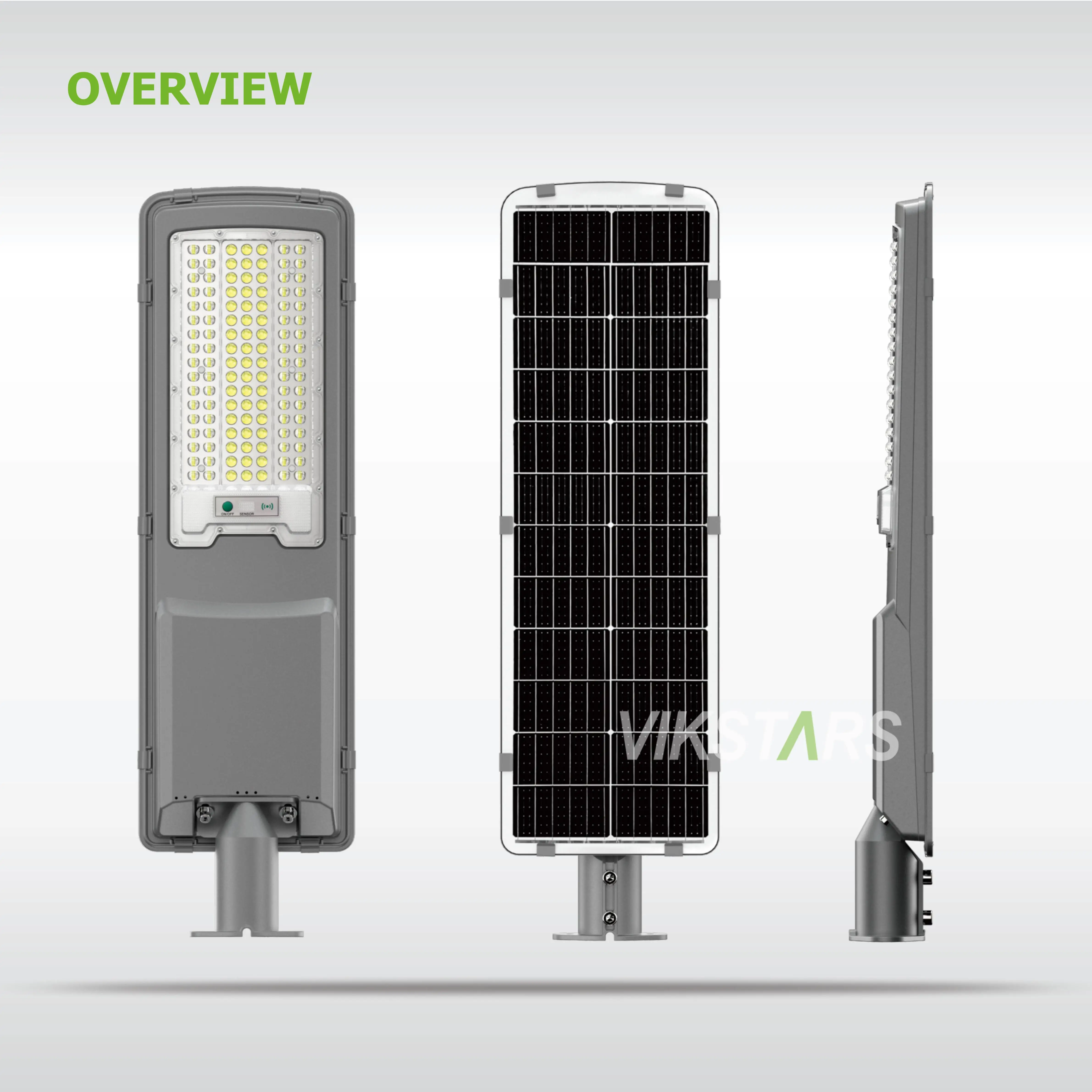

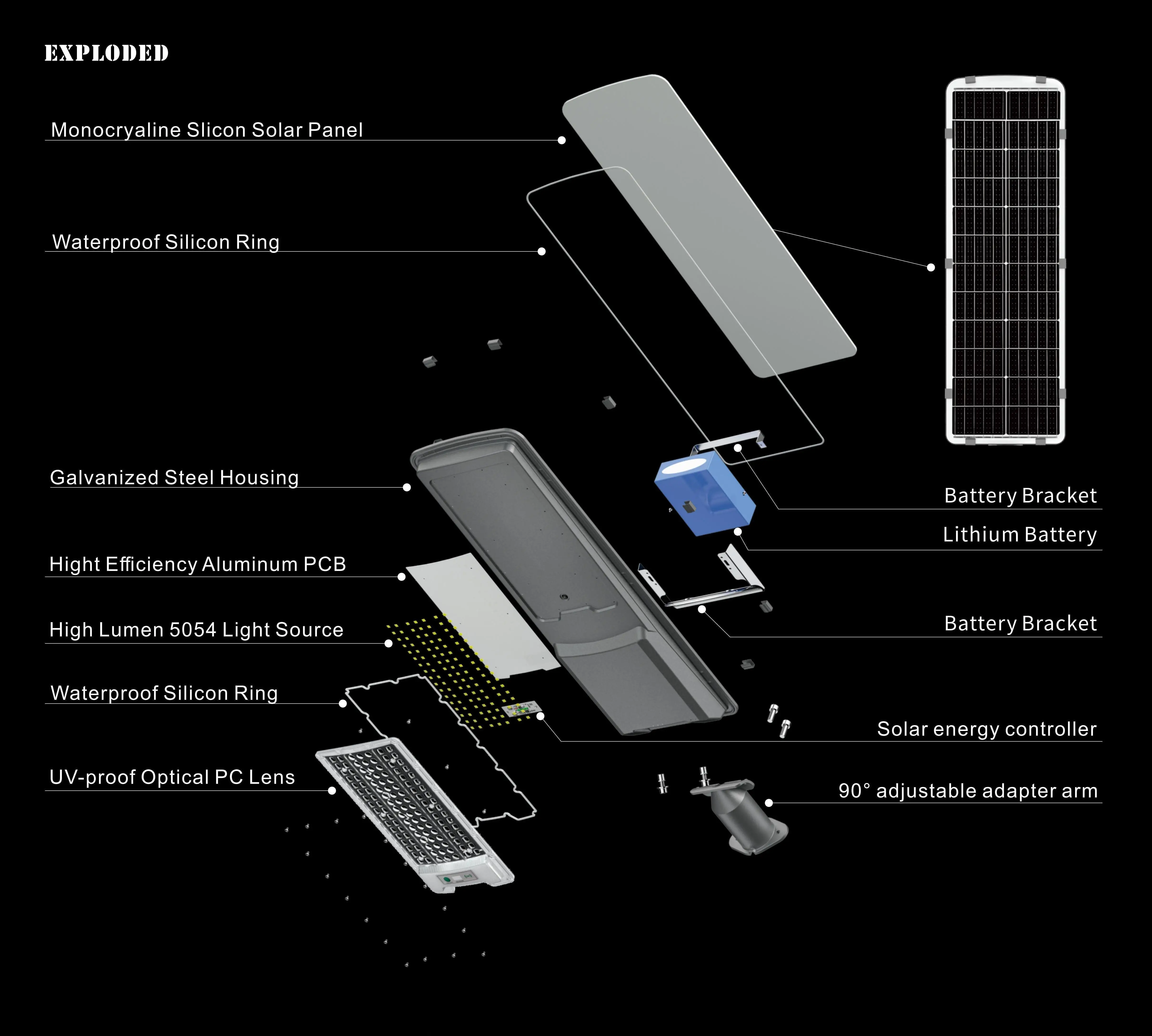

STRUCTURE
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole

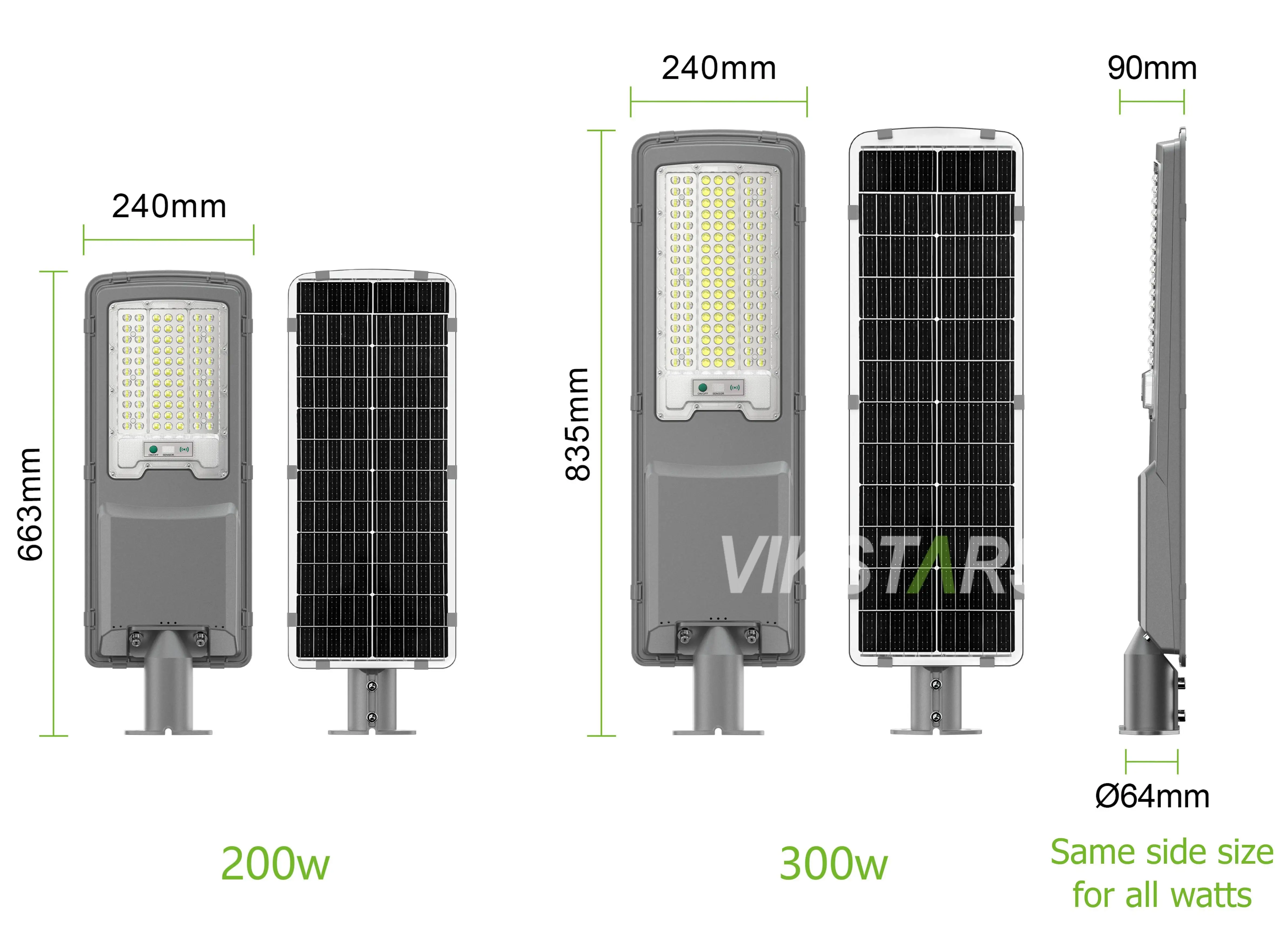

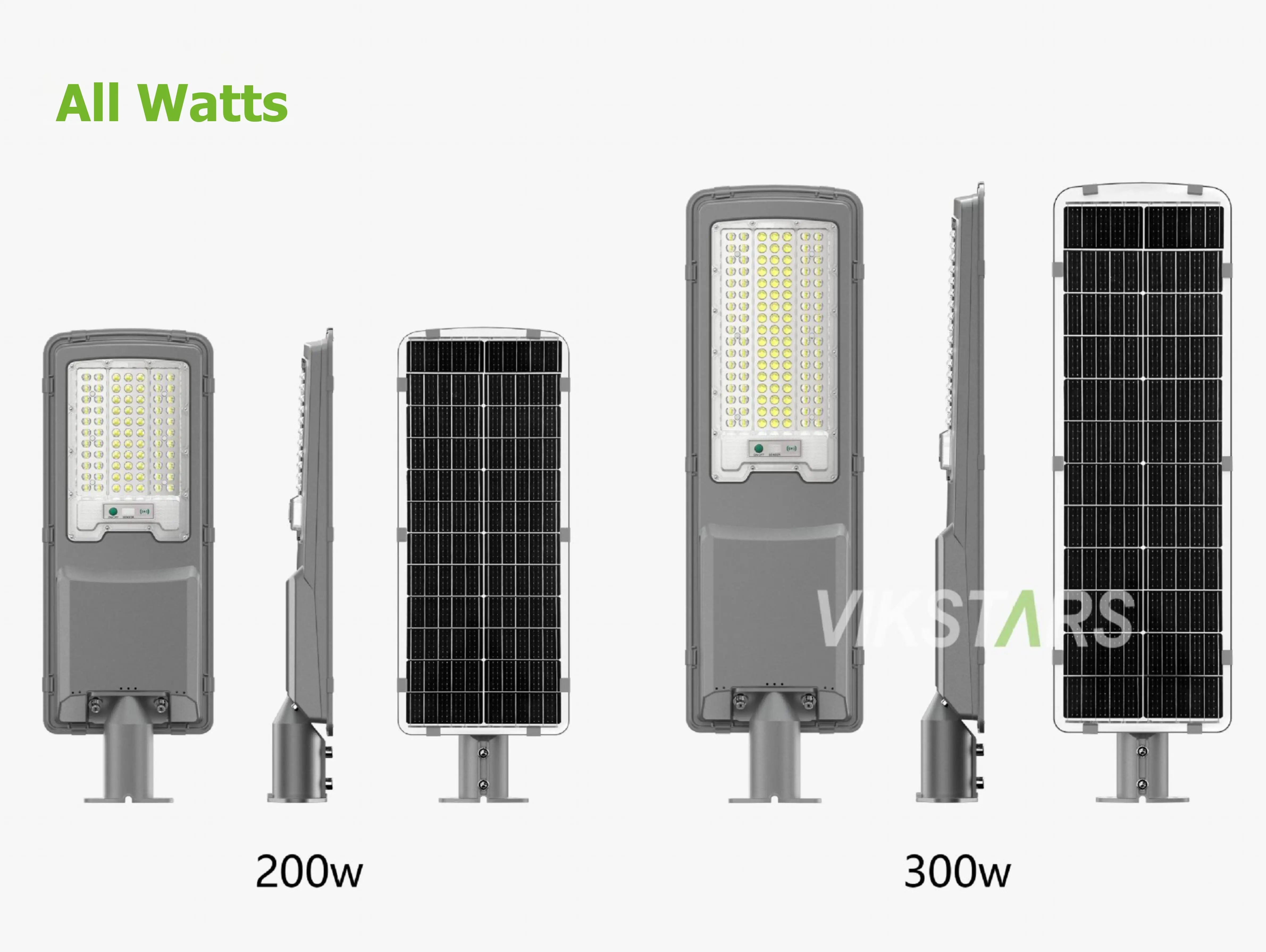

​ SIZEs​
Manually Measured, Tolerances Is Possible
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole

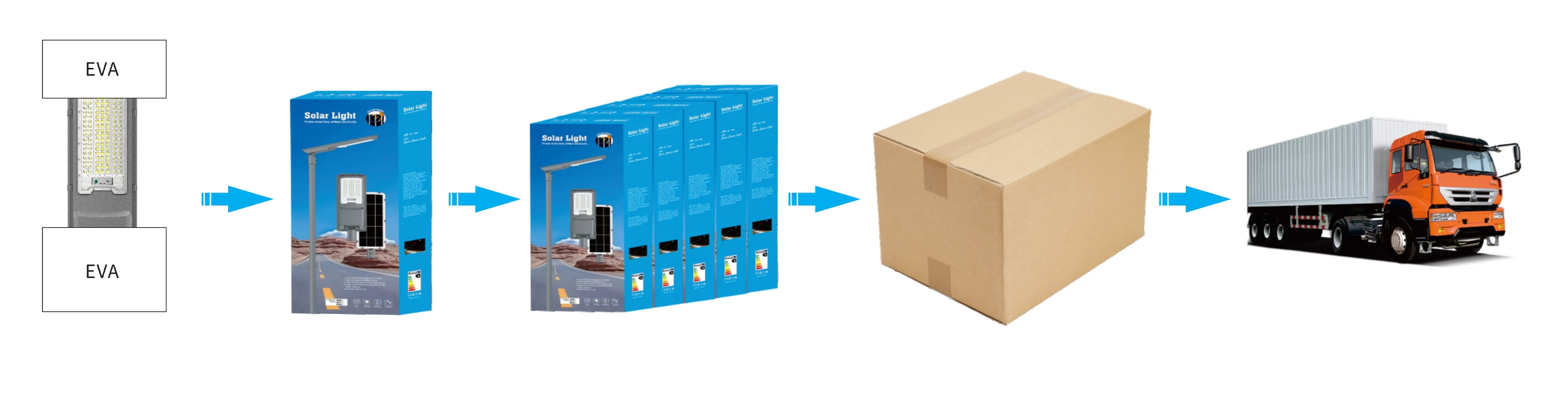

PACKING
Power
 Color box size Carton Size
Qty/ctn
 G.W. Packing
200W 250*95*640mm 675*500*265mm
5pcs/ctn
Export Neutral Carton
/ VIKSTARS Brand
/ Customizing Packing
300W 250*95*810mm 845*500*265mm
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
PROJECTs Live Photos
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
Outdoor Integrated Solar Street Lights Outdoor 200w 300w Lamp for Road With Light Sensor Remote Control Pole
