Specifications
Brand Name :
DOUBLE LIGHT
Model Number :
DL-509SRGCA-C
Certification :
RoHS
Place of Origin :
China (mainland)
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
8,000,000pcs per Day
Delivery Time :
10-15 working days after received your payment
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:5.1 Kilograms • Units per Export Carton:3000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:10.2 Kilograms
Price :
Negotiated
Light source :
Hyper Red&Yellow Green
Application :
TV set
Lens Colorl :
Water Clear
Product name :
5mm Standard T-1 3/4 Type
Luminous Intensity :
160~300mcd
Power Dissipation :
60~75mW
Viewing Angle :
30deg
Description

5mm Standard T-1 3/4 Type Bi-Color Hyper Red & Yellow Green LEDs


DL-509SRGCA-C.pdf

Features:

  1. 5mm standard T-1 3/4 type.
  2. Bi-color: Hyper Red & Yellow Green.
  3. Uniform light output.
  4. Low power consumption.
  5. I.C. Compatible.
  6. Long life-solid state reliability.
  7. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The Hyper Red source color devices are made with AlGaInP on N-GaAs substrate Light Emitting Diode.
  2. The Pure Green source color devices are made with Gap on Sapphire substrate Light Emitting Diode.

Applications:

  1. TV set.
  2. Monitor.
  3. Telephone.
  4. Computer.
  5. Circuit board, etc

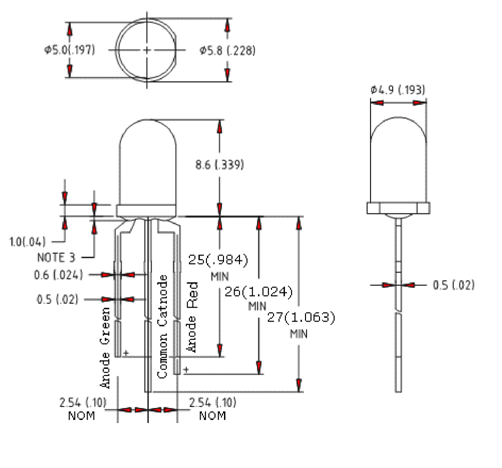

Package Dimension:
5mm Standard T-1 3/4 Type Bi Color LED Hyper Red / Yellow Green LEDs For TV Set

Part No. Chip Material Lens Color Source Color
DL-509SRGCA-C SR AlGaInP Water Clear Hyper Red
G GaP Yellow Green

Notes:

  1. All dimensions are in millimeters (inches).
  2. Tolerance is ± 0.25mm (.010″) unless otherwise noted.
  3. Protruded resin under flange is 1.00mm (.039″) max.
  4. Specifications are subject to change without notice.


Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation Hyper Red PD 60 mW
Yellow Green 75

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current Hyper Red IF 25 mA
Yellow Green IF 25 mA
Reverse Voltage VR 5 V

Electrostatic Discharge

(HBM)		 Hyper Red ESD 2000 V
Yellow Green 2000
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃

Lead Soldering Temperature

[4mm (.157″) From Body]

 Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity* IV Hyper Red 200 300 --- mcd IF=20mA (Note 1)
Yellow Green 80 160 ---
Viewing Angle* 2θ1/2 Hyper Red --- 30 --- Deg IF=20mA (Note 2)
Yellow Green --- 30 ---
Peak Emission Wavelength λp Hyper Red --- 623 --- nm IF=20mA
Yellow Green --- 570 ---
Dominant Wavelength λd Hyper Red --- 624 --- nm

IF=20mA

(Note 3)
Yellow Green --- 568 ---
Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
Yellow Green --- 35 ---
Forward Voltage VF Hyper Red 1.80 2.20 2.80 V IF=20mA
Yellow Green 1.80 2.30 2.80
Reverse Current IR Hyper Red --- --- 10 µA VR=5V
Yellow Green --- --- 10

Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Choose DOUBLE LIGHT, your expert LED components nearby!

Advantage:

  • Over 10 years work experience technical service team
  • Manufacturer direct sale,high quality product and competitive price
  • Mix order accepted and free sample
  • Make double check strictly and packing carefully.
  • We will refund you in case of bad quality issue happens due to our product itself.
