Specifications
Brand Name :
DOUBLE LIGHT
Model Number :
DL2-562XRB
Certification :
ISO9001:2008/ROHS
Place of Origin :
China (mainland)
MOQ :
2000pcs
Price :
US$ 0.165-0.35per unit (Pieces) depends on the quantity
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
5,000,000pcs per Day
Delivery Time :
7-10 working days after payment received
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Product Name :
0.56" Dual Digit Numeric Displays
Package :
0.56 Inch 7 Segment
Emitted Color :
Super Bright Red
Peak Emission Wavelength :
660nm
Chip Material :
GaAlAs
Face color :
Black Surface
Forward Voltage @20ma :
1.6-2.8V
Luminous Intensity :
25-40mcd

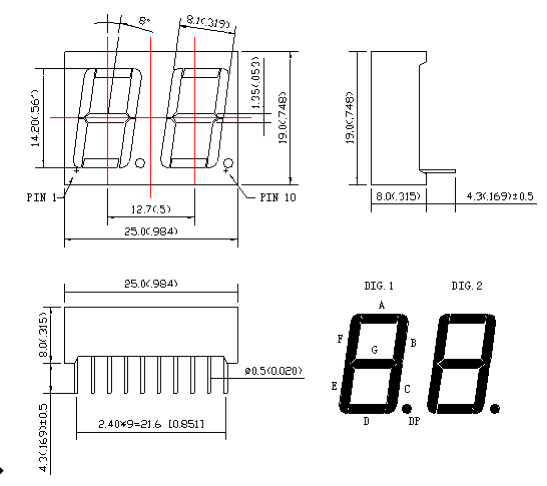

Screen dimension :
25.0*19.0*8.0mm
Power Dissipation Per Segment :
100mW
Description
Datasheet: DL2-562XRB.pdf Emitting color:Super bright red

0.56" Dual Digit Numeric Displays

0.56 Inch 1 Bit Dual Digit 7 Segment LED Displays 2.8V 660nm Wavelength 10 pin 7 segment display cathode led screen

0.56 Inch 1 Bit Dual Digit 7 Segment LED Displays 2.8V 660nm Wavelength 10 pin 7 segment display cathode led screen

0.56 Inch 1 Bit Dual Digit 7 Segment LED Displays 2.8V 660nm Wavelength 10 pin 7 segment display cathode led screen

Features:

  1. 0.56″ (inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The DL2-562XRB series is a lager 14.20mm (0.56″) high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.

Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.

Device Selection Guide:

Model No. Chip Material Source Color Description
DL2-562ARB GaAlAs Super Bright Red Common Anode
DL2-562CRB Super Bright Red Common Cathode
Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 100 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃ 0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds
Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 25.0 40.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1 IF=10mA
Peak Emission Wavelength λp --- 660 --- nm IF=20mA
Dominant Wavelength λd --- 640 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF --- 2.20 2.80 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V


Notes:

  • Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
