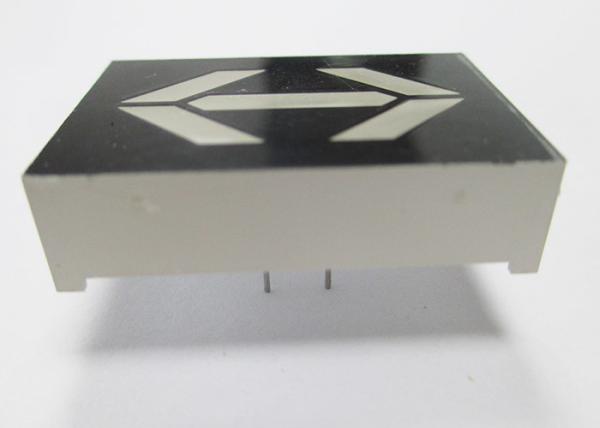

Arrow LED displays 1.26 Inch 5 segment led display white five segment direction Indicator display for digital light

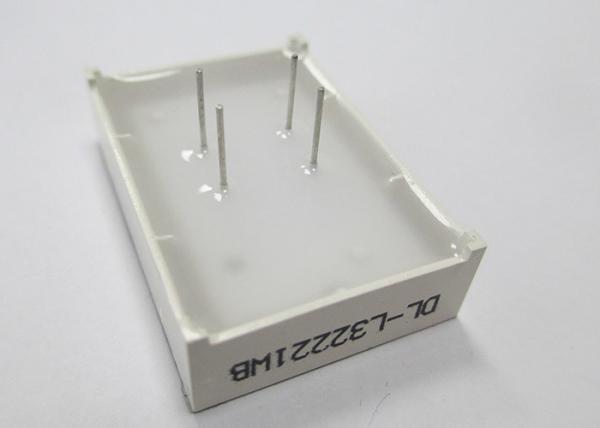

DL-L32221WB.pdf

Features:

1. Industrial standard size.
2. Low power consumption.
3. Categorized for luminous intensity.
4. The product itself will remain within RoHS compliant Version.

Descriptions:

1. The DL-L32221 series is 32mm (1.26") direction indicator display, designed for viewing distances up to 7 meters.
2. These devices are made with white segment and black surface.

Applications:

1. Audio equipment.
2. Instrument panels.
3. Digital read out display.

Device Selection Guide:

Package Dimension:



Notes:

1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
3. Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Electrical Optical Characteristics at Ta=25℃

Notes:

1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

• Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

Why choose DOUBLE LIGHT?
1. Well-known chip material
2. 99.99% gold wire bonding
3. 3 years warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
6. Free Sample is available
7. Fast delivery
8.100% QC inspection Before Shippment
9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.

Please contact with me to help you find your right product and get your best price.
