6 Pins Diode Full Color Led Rgb Smd Low Current 3 Color Indicator Wide Viewing Angle
6 Pins Diode Full Color Led Rgb Smd Low Current 3 Color Indicator Wide Viewing Angle
6 Pins Diode Full Color Led Rgb Smd Low Current 3 Color Indicator Wide Viewing Angle
6 Pins Diode Full Color Led Rgb Smd Low Current 3 Color Indicator Wide Viewing Angle
Specifications
Brand Name :
Double Light
Model Number :
DL-TOP5050RGBC-XY.
Certification :
ISO9001:2008/ROHS
Place of Origin :
China (mainland)
MOQ :
3,000pcs/Real
Price :
US$ 0.06-0.08. per unit (Pieces)
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
10,000,000pcs per Day
Delivery Time :
5-7 working days after payment received
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Product Name :
5050 RGB led
Package :
TOP 5050 SMD LED
Emitted Color :
Red Green Blue with 6 pins
Color Temperature :
R624-632nm G520-525nm B 468-470
Luminous Intensity :
460-770mcd(R) 780-1400(G) 210-400Mcd(B)
Forward Voltage @20ma :
1.8-2.4v 3.0-3.8v 3.0-3.8v
Datesheet :
Update
Description

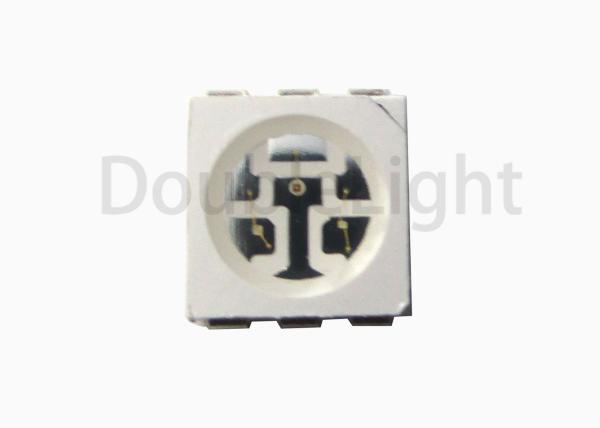

Datesheet: DL-TOP5050RGBC-XY.pdf LIGHT SOURCE: RGB

1.50mm Height Top View Full Color Chip LEDs


Features:

  1. P-LCC-6 package.
  2. White package.
  3. Optical indicator.
  4. Colorless clear window.
  5. Ideal for backlight and light pipe application.
  6. Inter reflector.
  7. Low current (2mA) operation.
  8. Wide viewing angle.
  9. Suitable for vapor-phase reflow, infrared reflow and wave solder processes.
  10. Computable with automatic placement equipment.
  11. Available on tape and reel (12mm Tape).
  12. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The 5050 is available in soft red, orange, yellow, green, blue and white. Due to the Package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Applications:

  1. Automotive: Backlight in dashboards and switches.
  2. Telecommunication: Indicator and backlight in telephone and fax.
  3. Indicator and backlight for audio and video equipment.
  4. Indicator and backlight in office and family equipment.
  5. Flat backlight for LCD’s, switches and symbols.
  6. Light pipe application.
  7. General use.

Part No. Chip Material Lens Color Source Color
DL-TOP5050RGBC-XY R AlGaInP Water Clear Hyper Red
G InGaN Pure Green
B InGaN Blue

Mechanical Dimensions

6 Pins Diode Full Color Led Rgb Smd Low Current 3 Color Indicator Wide Viewing Angle

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol MAX Unit
Power Dissipation PD Hyper Red 60 mW
Pure Green 95
Blue 95

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP Hyper Red 100 mA
Pure Green 100
Blue 100
Continuous Forward Current IF Hyper Red 25 mA
Pure Green 25
Blue 25
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD Hyper Red 2000 V
Pure Green 1000
Blue 1000
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity IV Hyper Red 460 720 --- mcd

IF=20mA

(Note 1)
Pure Green 780 1300 ---
Blue 210 350 ---
Viewing Angle 2θ1/2 Hyper Red --- 120 --- Deg

IF=20mA

(Note 2)
Pure Green --- 120 ---
Blue --- 120 ---
Peak Emission Wavelength λp Hyper Red --- 632 --- nm

IF=20mA

(Measurement

@Peak)
Pure Green --- 520 ---
Blue --- 468 ---
Dominant Wavelength λd Hyper Red --- 624 --- nm

IF=20mA

(Note 3)
pure Green --- 525 ---
Blue --- 470 ---
Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
Pure Green --- 35 ---
Blue --- 25 ---
Forward Voltage VF Hyper Red 1.80 2.30 2.40 V IF=20mA
Pure Green 3.00 3.30 3.80
Blue 3.00 3.30 3.80
Reverse Current IR Hyper Red --- --- 10 µA VR=5V
Pure Green 50
Blue 50

Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

For more details, please contact us.
