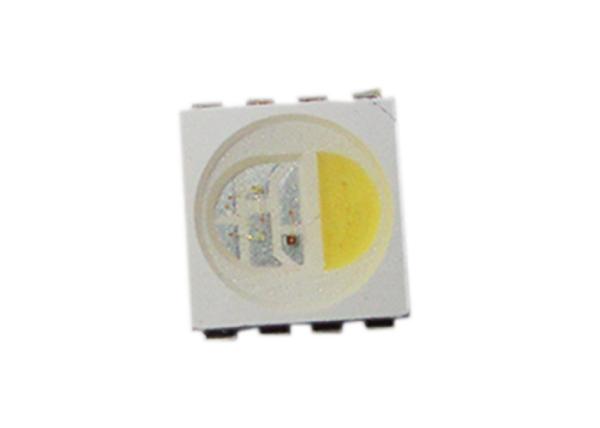

Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe
Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe
Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe
Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe
Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe
Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe
Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe
Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe
Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe
Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe
Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe
Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe
Specifications
Brand Name :
Double Light
Model Number :
DL-TOP5050RGBW
Certification :
ISO9001:2008/ROHS
Place of Origin :
China (mainland)
MOQ :
3,000pcs/Real
Price :
US$ 0.06-0.08. per unit (Pieces)
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
10,000,000pcs per Day
Delivery Time :
5-7 working days after payment received
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Product Name :
5050 RGBW SMD led
Emitted Color :
Red Green Blue White
Package :
P-LCC-8 package
Continuous Forward Current :
25mA
Viewing Angle :
120Deg
Reverse Voltage :
5V
Reverse Current :
10µA
Luminous Intensity :
Red 720mcd,Green1900mcd,Blue650mcd,White2300mcd
Peak Emission Wavelength :
Red 632nm,Green520nmBlue468nm
Forward Voltage :
Red 1.8-2.4v,Green/Blue /white:3.0-3.8
Description

Datesheet: DL-TOP5050RGBW.pdf LIGHT SOURCE: Red+Green+Blue+White 4 colors

Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe


Features:

  1. P-LCC-8 package.
  2. White package.
  3. Optical indicator.
  4. Colorless clear window.
  5. Ideal for backlight and light pipe application.
  6. Inter reflector.
  7. Low current (2mA) operation.
  8. Wide viewing angle.
  9. Suitable for vapor-phase reflow, infrared reflow and wave solder processes.
  10. Computable with automatic placement equipment.
  11. Available on tape and reel (12mm Tape).
  12. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The 5050 is available in soft red, orange, yellow, green, blue and white. Due to the Package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Applications:

  1. Automotive: Backlight in dashboards and switches.
  2. Telecommunication: Indicator and backlight in telephone and fax.
  3. Indicator and backlight for audio and video equipment.
  4. Indicator and backlight in office and family equipment.
  5. Flat backlight for LCD’s, switches and symbols.
  6. Light pipe application.
  7. General use.

Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe

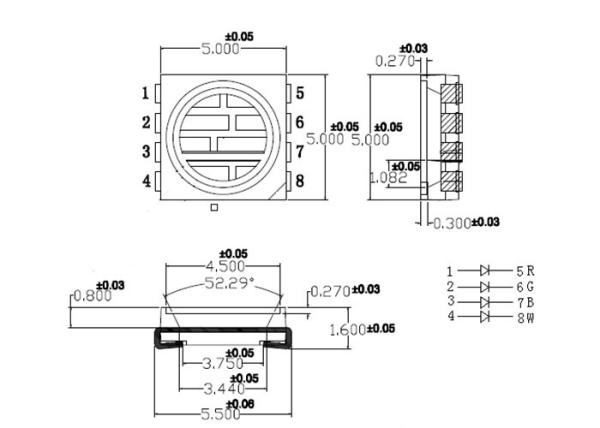

Mechanical Dimensions

Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe

Part No. Chip Material Lens Color Source Color
DL-TOP5050RGBW R AlGaInP Water Clear Hyper Red
G InGaN Pure Green
B InGaN Blue
W InGaN Yellow Diffused White

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol MAX Unit
Power Dissipation PD Hyper Red 60 mW
Pure Green 95
Blue 95
White 105

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP Hyper Red 100 mA
Pure Green 100
Blue 100
White 100
Continuous Forward Current IF Hyper Red 25 mA
Pure Green 25
Blue 25
White 25
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD Hyper Red 2000 V
Pure Green 1000
Blue 1000
White 1000
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity IV Hyper Red 460 720 --- mcd

IF=20mA

(Note 1)
Pure Green 1380 1900 ---
Blue 410 650 ---
White 1500 2300
Viewing Angle * 2θ1/2 RGBW --- 120 --- IF=20mA
Peak Emission Wavelength λp Hyper Red --- 632 --- nm

IF=20mA

(Measurement

@Peak)
Pure Green --- 520 ---
Blue --- 468 ---
Dominant Wavelength λd Hyper Red --- 624 --- nm

IF=20mA

(Note 3)
pure Green --- 525 ---
Blue --- 470 ---
Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
Pure Green --- 35 ---
Blue --- 25 ---
Correlated Colour Temperature --- CCT 6000 --- 7000 K IF=20mA
Forward Voltage VF Hyper Red 1.80 2.30 2.40 V IF=20mA
Pure Green 3.00 3.30 3.80
Blue 3.00 3.30 3.80
White 3.00 3.30 3.80
Reverse Current IR RGBW --- ---- 10 µA VR=5V

Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located
in Shenzhen, China. We mainly produce a wide range of products with automatic production lines,
which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and
LED lighting fixtures.

Our factory:

Full Color Rgb SMD LED 5050 Top View 1.60mm 25mA Large Viewing Angle Optical Indicator for light pipe

Please contact with me to help you find your right product and get your best price.

Tel: 86-755-82853859
Fax: 86-755-83229774
Email:wendy@doublelight.com.cn
Wechat:13423609933
Skype:wendy@doublelight.com.cn
Whatsapp:+86 134 1706 9378
Facebook:Wendy Doublelight
