3.00mm Round Type Housing LED Lamps Blue&Super Red bi color led
3.00mm Round Type Housing LED Lamps Blue&Super Red bi color led
3.00mm Round Type Housing LED Lamps Blue&Super Red bi color led
3.00mm Round Type Housing LED Lamps Blue&Super Red bi color led
3.00mm Round Type Housing LED Lamps Blue&Super Red bi color led
3.00mm Round Type Housing LED Lamps Blue&Super Red bi color led
3.00mm Round Type Housing LED Lamps Blue&Super Red bi color led
3.00mm Round Type Housing LED Lamps Blue&Super Red bi color led
Specifications
Brand Name :
DOUBLE LIGHT
Model Number :
DL-H30D-1BSRD
Certification :
ISO9001:2008/ROHS
Place of Origin :
China (mainland)
MOQ :
1000PCS
Price :
Negotiation
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000pcs per Day
Delivery Time :
5-7 working days after received your payment
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Package :
DIP 3MM
Emitted Color :
Blue& Red
Peak Emission Wavelength :
620nm & 465nm
Chip material :
InGaN& GaAlAs
Lens Color :
Diffused
Forward Voltage @20ma :
Typ:2.0/3.20V
Viewing Angle :
30Deg
Luminous Intensity :
300/280mcd
Description

3.00mm Round Type Housing LED Lamps Blue Super Red bi color led​

DL-H30D-1BSRD.pdf

Features:
1. Low Power consumption.
2. High efficiency and low cost.
3. Chip material: InGaN& GaAlAs
4. Emitted color : Blue& Red
5. Good control and free combinations on the colors of LED lamps.
6. Good lock and easy to assembly.
7. Stackable and easy to assembly.
8. Stackable vertically and easy to assembly.
9. Versatile mounting on P.C board or panel.
10. Stackable horizontally and easy to assembly.
11. The product itself will remain within RoHS compliant version.

Descriptions:
1. ARRAY=Plastic Holder + Combinations of Lamps.
2. The array will easily mount be applicable on any panel up to.


Applications:
1. TV set
2. Monitor
3. Telephone
4. Computer
5. Circuit board
6. Used as indicators of indicating the Degree, Functions, Positions etc, in electronic instruments.

3.00mm Round Type Housing LED Lamps Blue&Super Red bi color led

Part No. Chip Material Lens Color Source Color
DL-H30D-1BSRD InGaN Diffused Blue
GaAlAs Super Red

Notes:

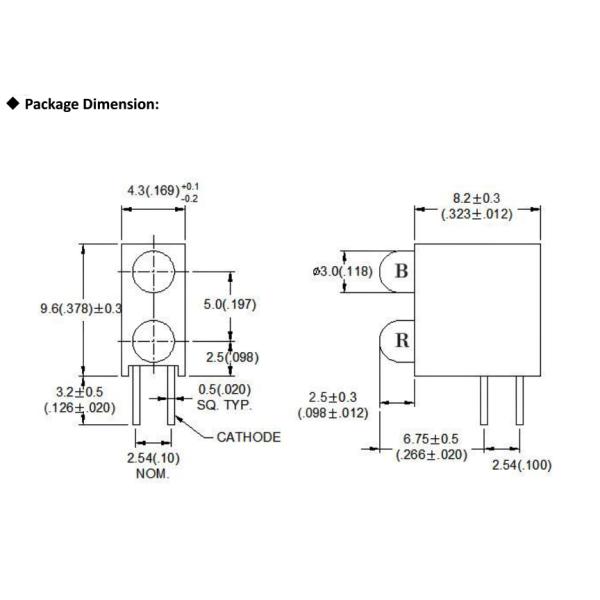

1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm (.010″) unless otherwise noted.
3. Protruded resin under flange is 1.00 mm (.039″) max.
4. Specifications are subject to change without notice.

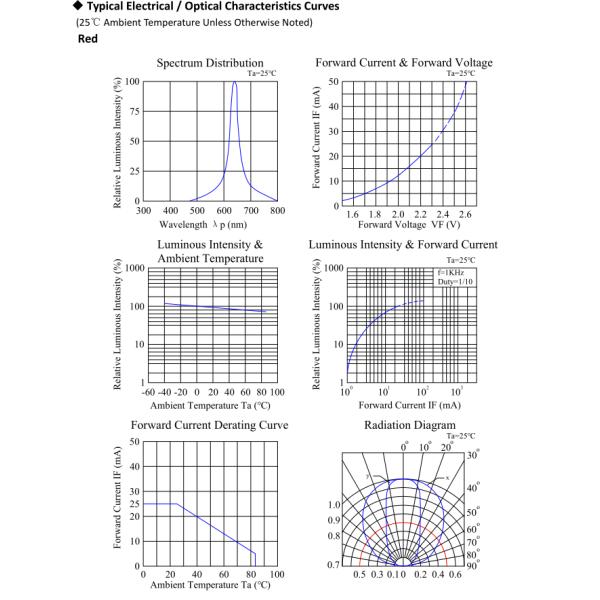

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 75 mW
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)		 IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Lead Soldering Temperature
[4mm (.157″) From Body]		 Tsld 260℃ for 5 Seconds

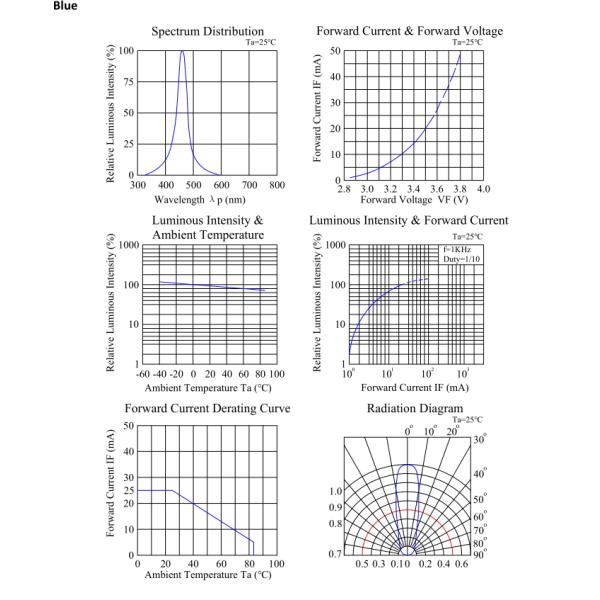

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity IV Super Red 150 300 --- mcd

IF=20mA

(Note 1)
Blue 140 280 ---
Viewing Angle 2θ1/2 Super Red --- 30 --- Deg

IF=20mA

(Note 2)
Blue --- 30 ---
Peak Emission Wavelength λp Super Red --- 620 --- nm Measurement
@Peak
Blue --- 465 ---
Dominant Wavelength λd Super Red --- 630 --- nm

IF=20mA

(Note 3)
Blue --- 470 ---
Spectral Line Half-Width △λ Super Red --- 25 --- nm
Blue --- 10 ---
Forward Voltage VF Super Red 1.80 2.00 2.40 V IF=20mA
Blue 2.80 3.20 4.00
Reverse Current IR Super Red --- --- 10 µA VR=5V
Blue --- --- 10

3.00mm Round Type Housing LED Lamps Blue&Super Red bi color led

3.00mm Round Type Housing LED Lamps Blue&Super Red bi color led
