Specifications
Brand Name :
Double Light
Model Number :
DL-509SRPGCE-C
Certification :
ISO9001:2008/ROHS
Place of Origin :
China (mainland)
MOQ :
1000pcs/pack
Price :
Negotiated
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000pcs per Day
Delivery Time :
10-15 working days after received your payment
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Source Color :
Hyper Red & Pure Green
Lens Color :
Water Clear
Reverse Voltage :
5V
Viewing Angle :
50Deg
Peak Forward Current :
100mA
Forward Current :
25mW
Description

5mm Cylindrical Flat Lens Type Bi-Color Hyper Red & Pure Green LEDs led light components

Features:
1. 5mm standard T-1 3/4 type.
2. Bi-color: Hyper Red & Pure Green.
3. Uniform light output.
4. Low power consumption.
5. I.C. Compatible.
6. Long life-solid state reliability.
7. The product itself will remain within RoHS compliant Version.


Descriptions:
1. The Hyper Red source color devices are made with AlGaInP on N-GaAs substrate Light Emitting Diode.
2. The Pure Green source color devices are made with InGaN on Sapphire substrate Light Emitting Diode.


Applications:
1. TV set.
2. Monitor.
3. Telephone.
4. Computer.
5. Circuit board, etc.

5mm Cylindrical Lens 50Deg 100mA 25mW Light Emitting Diode

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation Hyper Red PD 60 mW
Pure Green 95
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)		 IFP 100 mA
Forward Current Hyper Red IF 25 mA
Pure Green 25
Reverse Voltage VR 5 V
Electrostatic Discharge(HBM) Hyper Red ESD 2000 V
Pure Green 400
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃
Lead Soldering Temperature
[4mm (.157″) From Body]		 Tsld 260℃ for 5 Seconds

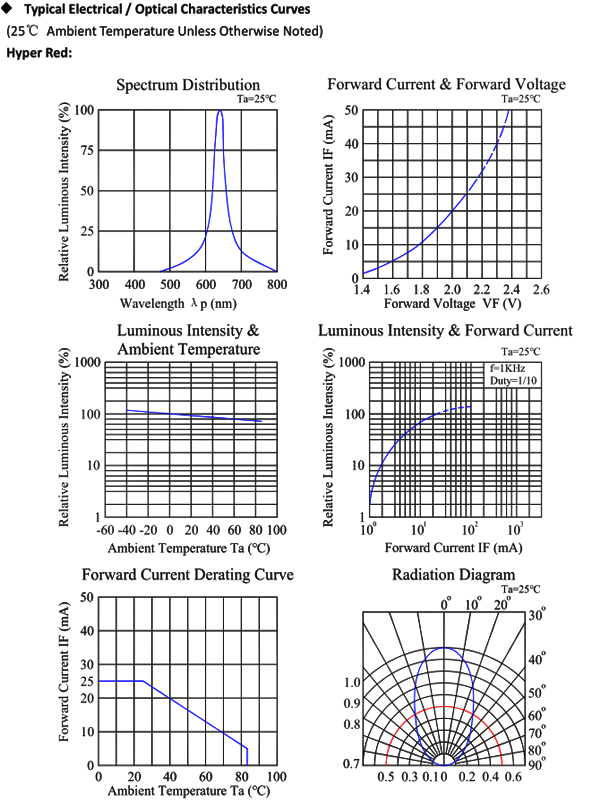

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting
Color		 Min. Typ. Max. Unit Test Condition
Luminous Intensity* IV Hyper Red 1000 2000 --- mcd IF=20mA(Note 1)
Pure Green 2000 3500 ---
Viewing Angle* 2θ1/2 Hyper Red --- 50 --- Deg IF=20mA(Note 2)
Pure Green --- 50 ---
Peak Emission Wavelength λp Hyper Red --- 632 --- nm IF=20mA
Pure Green

--
520 ---
Dominant Wavelength λd Hyper Red --- 624 --- nm IF=20mA (Note 3)
Pure Green --- 525 ---
Spectral Line Half-Width △λ Hyper Red --- 20 --- nm I F =20mA
Pure Green --- 35 ---
Forward Voltage VF Hyper Red 1.80 2.20 2.80 V IF=20mA
Pure Green 2.80 3.30 3.80
Reverse Current IR Hyper Red --- --- 10 µA V R =5V
Pure Green --- --- 10

Notes:
1. Luminous Intensity Measurement allowance is ± 10%.
2. θ 1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single
wavelength which defines the color of the device.

5mm Cylindrical Lens 50Deg 100mA 25mW Light Emitting Diode

5mm Cylindrical Lens 50Deg 100mA 25mW Light Emitting Diode

Company Introduction

Double Light Electronics Technology Co. Ltd was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.
