Specifications
Brand Name :
Double Light
Model Number :
DL-506SRC-F1
Certification :
ISO9001:2008/ROHS
Place of Origin :
China (mainland)
MOQ :
1000pcs/pack
Price :
Negotiated
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000pcs per Day
Delivery Time :
10-15 working days after received your payment
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Product Name :
5mm Round Standard T-1 3/4 Type With Flange
Source Color :
Hyper Red
Reverse Voltage :
5V
Viewing Angle :
15Deg
Continuous Forward Current :
30mA
Peak Emission Wavelength :
632nm
Power Dissipation :
180mW
Description

5mm Round Standard T-1 3/4 Type With Flange Blinking Hyper Red LED

Features:
1. Popular T-1 3/4 diameter package.
2. High intensity.
3. CMOS technology.
4. Designed for bonding with LED chip.
5. 1/4 Duty cycle.
6. Blinking frequency: 2.4Hz (Vdd=3.50V).
7. Frequency tolerance: ± 20%.
8. With both sink and source output drivers.
9. The product itself will remain within RoHS compliant Version.


Descriptions:
1. The series is specially designed for applications requiring higher brightness.
2. The LED lamps are available with different colors, intensities.


Applications:
1. Status indicators.
2. Commercial use.
3. Advertising Signs.
4. Monitor.
5. Telephone.
6. Computer.
7. Circuit board.
8. Entertainment.
9. Decoration.

5mm 632nm 180mW 30mA led light chip T-1 3/4 Type With Flange

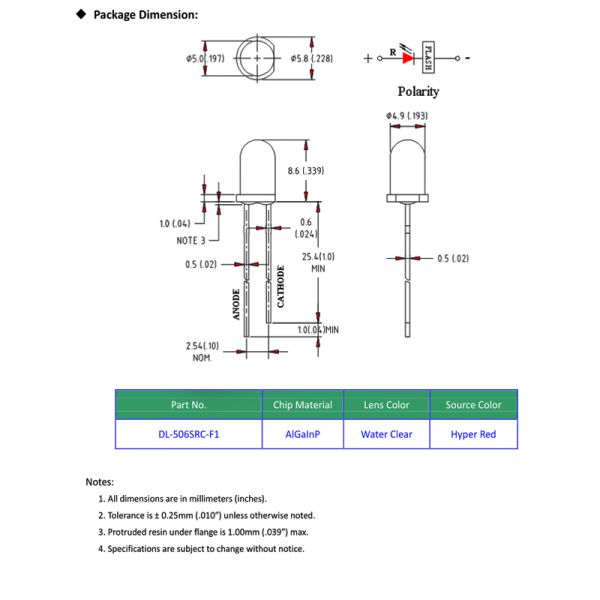

Absolute Maximum Ratings at Ta=25

Parameters Symbol Max. Unit
Power Dissipation PD 180 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Continuous Forward Current IF 30 mA
Derating Linear From 50℃ 0.40 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Lead Soldering Temperature
[4mm (.157″) From Body]		 Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity (Note 1)* IV 1000 2000 --- mcd V DD =4.50V
(Note 1)
Viewing Angle * 2θ1/2 --- 15 --- Deg V DD =4.50V
(Note 2)
Peak Emission Wavelength λp --- 632 --- nm V DD =4.50V
Dominant Wavelength (Note 2) λd --- 624 --- nm V DD =4.50V
Spectral Line Half-Width △λ --- 20 --- nm V DD =4.50V
Turn on time Duty --- 1/4 --- ms V DD =4.50V
Blinking Frequency Fblk --- 2.4 --- Hz V DD =4.50V
Frequency Tolerance Ft --- ±20﹪ --- Hz V DD =4.50V
Operating Voltage Vdd 2.80 3.50 6.00 V
Reverse Current IR --- --- 50 µA VR=5V

Notes:
1. θ 1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength
which defines the color of the device.

5mm 632nm 180mW 30mA led light chip T-1 3/4 Type With Flange
