Specifications
Brand Name :
Double Light
Model Number :
DL-TOP5050W40W65-2W120
Certification :
RoHS/ REACH
Place of Origin :
China
MOQ :
2,000pcs
Price :
US$ 0.035-0.060per unit (Pieces) and negotiable
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
2,000,000pcs per day
Delivery Time :
7 days after payment received
Product Name :
1.50mm Height 2220 Package Top View 5050 White & White Chip LED(Two Chips)
Emitted Color :
White and Warm White
Product number :
DL-TOP5050W40W65-2W120
Color Temperature :
White:6000-7000K, Warm White:3500-4500K
Lens Type :
Yellow Diffused
Forward Voltage @30ma :
White:3.0-3.8V, Warm White:3.0-3.8V
Luminous Flux :
24-30lm
Datasheet :
Update
Description

Datasheet:DL-TOP5050W40W65-2W120.pdf light source: Warm White & White

DL-TOP5050RGBW.pdf light source:Red Green Blue & White

DL-TOP5050RGBC-XY.pdf light source:RGB

DL-TOP5050RGBC-WS2812B.pdf light source:RGB+ flash

DL-TOP5050UYC-4UY.pdf light source: Single color

1.50mm Height 2220 Package Bi Color LED Top View 5050 Warn White & White,RGB, RGBW,single color,flashing Chip

1.60mm Height 2220 Package Top View

White & White Chip LED

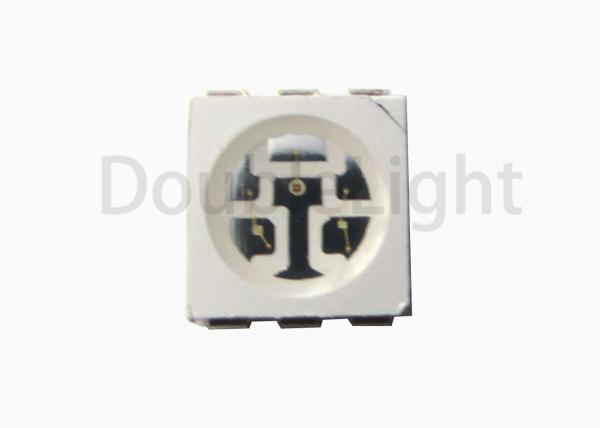

This is our 1.60mm Height 2220 Package Top View 5050 White & White Chip LED(Two Chips).

Features:

  • Package in 12mm tape on 7" diameter reels.
  • Industry standard footprint.
  • Low profile.
  • Small size (L×W×H: 5.40mm×5.00mm×1.60mm).
  • Super luminosity white LED.
  • Several colors available.
  • Built in 3 LED chips.
  • Wide viewing angle.
  • Soldering methods: Reflow Soldering.
  • High performance.
  • The product itself will remain within RoHS compliant Version.

Descriptions:

  • The 5050 Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  • Besides, lightweight makes them ideal for miniature applications. etc.

Applications:

  • Automotive: Backlight in dashboards and switches.
  • Telecommunication: Indicator and backlight in telephone and fax.
  • Indicator and backlight for audio and video equipment.
  • Indicator and backlight in office and family equipment.
  • Flat backlight for LCD’s, switches and symbols.
  • Light pipe application.
  • General use.

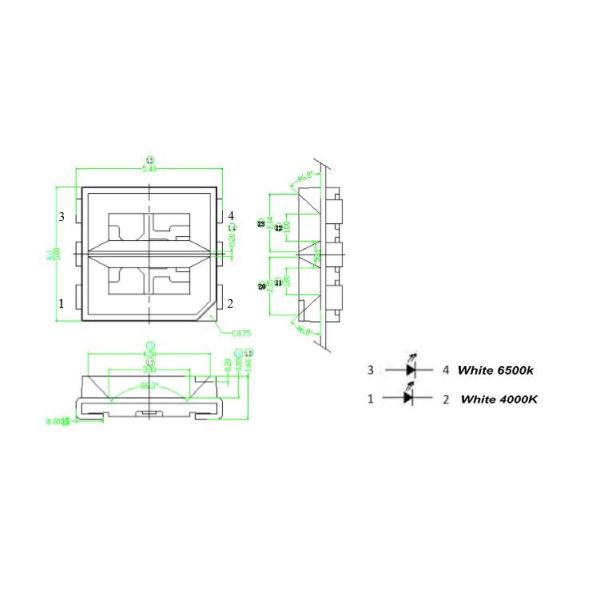

  • Package Dimension:

​1.50mm Height 2220 Package Bi Color LED Top View 5050 Warn White & White,RGB, RGBW,single color,flashing Chip

Part No. Chip Material Lens Color Source Color
DL-TOP5050W40W45-2W120 InGaN Yellow Diffused Warm White
White

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.10mm (.004") unless otherwise specified.

3. Specifications are subject to change without notice.

​Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max Unit
Power Dissipation(Per Chip) PD 150 mW

Peak Forward Current(Per Chip)

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 120 mA
Continuous Forward Current(Per Chip) IF 100 mA
Reverse Voltage(Per Chip) VR 5 V
Electrostatic Discharge (HBM) ESD 1000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Flux * Φ White 24.0 28.0 --- lm IF=60mA
Luminous Flux * Φ White 24.5 28.5 --- lm IF=60mA
Viewing Angle * 2θ1/2 W&WW --- 120 --- Deg IF=60mA
Color Temperature Tc White 3500 4000 4500 k IF=60mA
Color Temperature Tc Warm White 6000 6500 7000 k IF=60mA
Forward Voltage VF White 3.00 3.30 3.80 V IF=60mA
Forward Voltage VF Warm White 3.00 3.30 3.80 V IF=60mA
Reverse Current IR W&WW --- --- 10 µA VR=5V

Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.

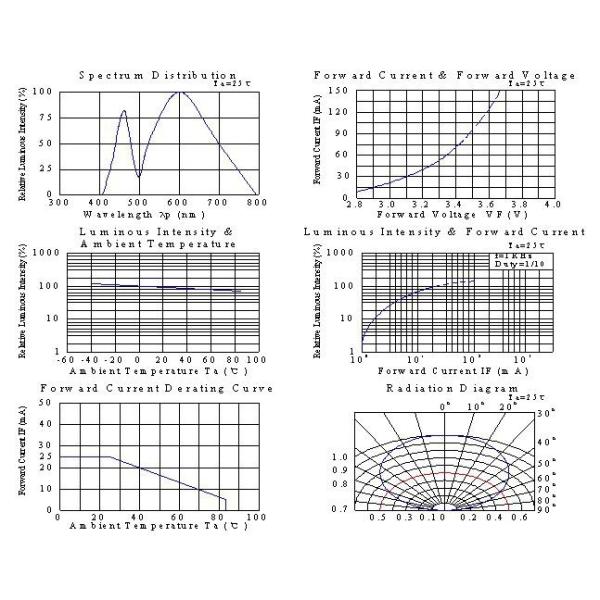

1.50mm Height 2220 Package Bi Color LED Top View 5050 Warn White & White,RGB, RGBW,single color,flashing Chip

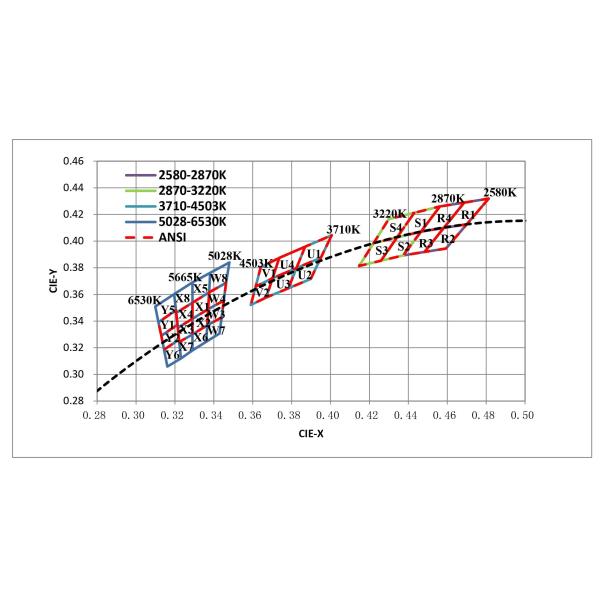

CIE Chromaticity Diagram:

1.50mm Height 2220 Package Bi Color LED Top View 5050 Warn White & White,RGB, RGBW,single color,flashing Chip

Reliability Test Items And Conditions (Per Chip):

The reliability of products shall be satisfied with items listed below:

Confidence level: 90%.

LTPD: 10%.

1) Test Items and Results:

No. Test Item Test Hours/Cycles Test Conditions Sample Size Ac/Re
1 Resistance to Soldering Heat 6 Min

Tsld=260±5℃,

Min. 5sec

 25pcs 0/1
2 Thermal Shock 300 Cycles

H: +100℃ 5min ∫ 10 sec

L: -10℃ 5min

 25pcs 0/1
3 Temperature Cycle 300 Cycles

H: +100℃ 15min ∫ 5min

L: -40℃ 15min

 25pcs 0/1
4 High Temperature Storage 1000Hrs. Temp: 100℃ 25pcs 0/1
5 DC Operating Life 1000Hrs. IF=20mA 25pcs 0/1
6 Low Temperature Storage 1000Hrs. Temp: -40℃ 25pcs 0/1
7 High Temperature/ High Humidity 1000Hrs. 85℃/85%RH 25pcs 0/1

2) Criteria for Judging the Damage:

Item Symbol Test Conditions Criteria for Judgment
Min Max
Forward Voltage VF IF=20mA --- F.V.*)×1.1
Reverse Current IR VR=5V --- F.V.*)×2.0
Luminous Intensity IV IF=20mA F.V.*)×0.7 ---

*) F.V.: First Value.

Reel Dimensions:

1.50mm Height 2220 Package Bi Color LED Top View 5050 Warn White & White,RGB, RGBW,single color,flashing Chip

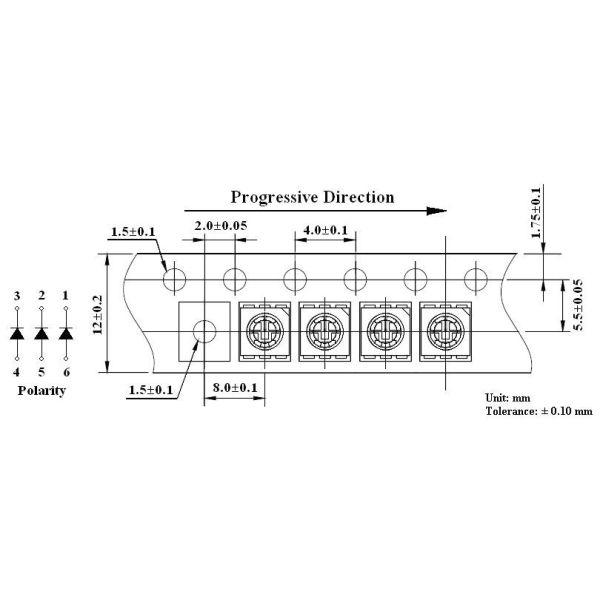

Carrier Tape Dimensions:

Loaded quantity 1000PCS per reel.

1.50mm Height 2220 Package Bi Color LED Top View 5050 Warn White & White,RGB, RGBW,single color,flashing Chip

For more details, please contact us.
