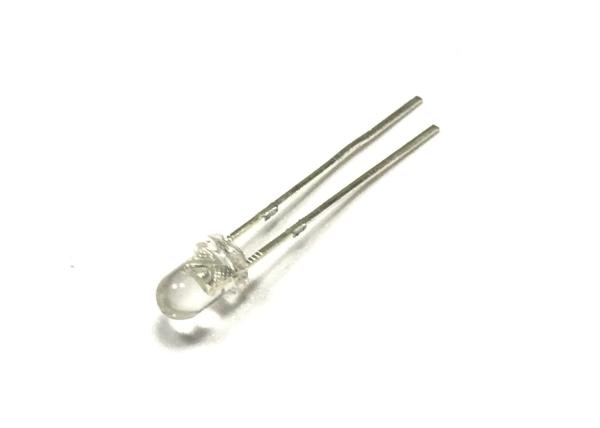

3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
Specifications
Brand Name :
Double Light
Model Number :
DL-304HIRCA-2IR20
Certification :
ISO9001:2008,ROHS
Place of Origin :
China (mainland)
MOQ :
10,000pcs
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000pcs per Day
Delivery Time :
5-7 working days after received your payment
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Product Name :
Infrared LEDs
Diameter :
Dip 3mm
Emitted Color :
880nm Infrared LED
Peak Emission Wavelength :
880nm
Chip Material :
GaAlAs
Lens Type :
Water Clear
Forward Voltage @20ma :
1.1-1.4V
Viewing Angle :
25 Deg
Description

3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm

5mm Infrared Emitting Diode 880nm

  • Features:
    • High radiant intensity
    • Peak wavelength p=940nm
    • Viewing angle: 20°, Top view, through hold, radial
    • High reliability
    • 2.54mm lead spacing
  • Description:
    • Infrared Emitting Diode (IR333C-A) is a high intensity diode, molded, water clear plastic package
    • The device is spectrally matched with phototransistor, photodiode and infrared receiver module
  • Applications:
    • Free air transmission system
    • Optoelectronic switch
    • Floppy disk drive
    • Infrared applied system
    • Smoke detector

Primary Competitive Advantages:
Country of Origin
Green Product
Guarantee/Warranty
International Approvals
Packaging
Price
Prompt Delivery
Quality Approvals
Small Orders Accepted

  1. Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation PD 100 mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 1.00 A
Forward Current IF 50 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Radiant Intensity (Note 1) * Ee 20.0 25.0 --- mW/sr IF=20mA
--- 50.0 --- IF=50mA, tp=100µs, tp/T=0.01
Viewing Angle (Note 2) * 2θ1/2 --- 45 --- Deg IF=20mA
Peak Emission Wavelength λp --- 940 --- nm IF=20mA (Note 3)
Spectral Bandwidth △λ --- 50 --- nm IF=20mA
Forward Voltage VF 0.80 1.20 1.50 V IF=20mA
--- 1.50 1.60 IF=50mA, tp=100µs, tp/T=0.01
Reverse Current IR --- --- 10 µA VR=5V
Infrared Emitting Diode Package Dimension:

3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
