Specifications
Brand Name :
Double Light
Model Number :
DL-304SIRCA-2SIR60
Certification :
ISO9001:2008,Rosh
Place of Origin :
China
MOQ :
1000 PCS
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000pcs per Day
Delivery Time :
5-7 working days after received your payment
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Type :
Infrared LED Emitting Diodes
Max. Reverse Voltage :
5V
Light color :
Infrared
Peak Emission Wavelength :
850nm
Chip Material :
GaAlAs
Radiant Intensity :
5.0-10.0mW/sr
Package type :
Through Hole
Shape :
Round
Size :
OEM & 3mm
Application :
Led Lighting
Description

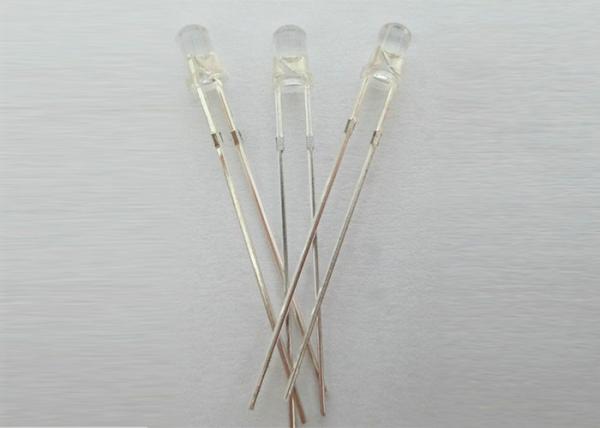

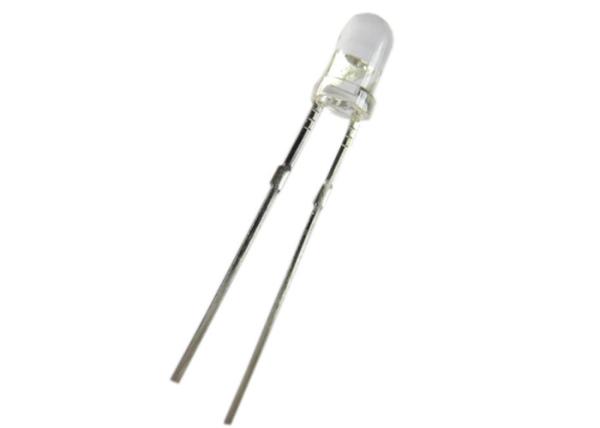

wavelength 850nm ir led diode T-1 3mm infrared led in water clear 60° viewing angle light emitting diode led



Features:

  1. Standard T-1 diameter package.
  2. Low forward voltage.
  3. Viewing angle=60°.
  4. Reliable and rugged.
  5. The product itself will remain within RoHS complaint Version.


Descriptions:

  1. The device is spectrally matched with silicon photodiode and phototransistor.


Applications:

  1. Floppy disk drive.
  2. Optoelectronic switch.
  3. Camera.
  4. Free air transmission system.
  5. Video.

Part No.Chip MaterialLens ColorSource Color
DL-304SIRCA-2SIR60GaAlAsWater Clear

Infrared



Absolute Maximum Ratings at Ta=25℃

ParametersSymbolMax.Unit
Power DissipationPD150mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP1.00A
Forward CurrentIF100mA
Reverse VoltageVR5V
Operating Temperature RangeTopr-40℃ to +80℃
Storage Temperature RangeTstg-40℃ to +85℃
Soldering TemperatureTsld260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

ParametersSymbolMin.Typ.Max.UnitTest Condition
Radiant Intensity (Note 1) *Ee5.010.0---mW/srIF=20mA
Viewing Angle (Note 2) *2θ1/2---60---DegIF=20mA
Peak Emission Wavelengthλp---850---nmIF=20mA (Note 3)
Spectral Bandwidth△λ---60---nmIF=20mA
Forward VoltageVF1.251.401.55VIF=20mA
Reverse CurrentIR------10µAVR=5V

Notes:

  1. Luminous (Radiant) Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λp) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


LED Emitting Diodes Package Dimension:
wavelength 850nm ir led diode T-1 3mm infrared led in water clear 60° viewing angle light emitting diode led

  • Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)
wavelength 850nm ir led diode T-1 3mm infrared led in water clear 60° viewing angle light emitting diode led
wavelength 850nm ir led diode T-1 3mm infrared led in water clear 60° viewing angle light emitting diode led
