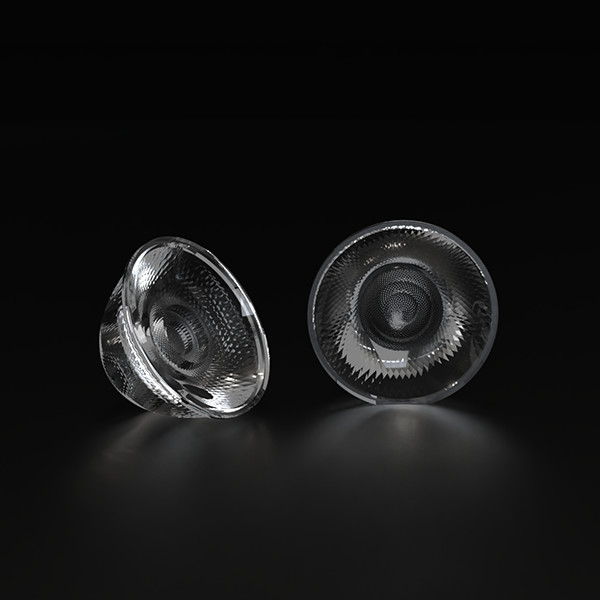

High Lighting Efficiency Free UGR LED Lens with Narrow Beam Angle for COB LEDs
High Lighting Efficiency Free UGR LED Lens with Narrow Beam Angle for COB LEDs
Specifications
Brand Name :
Wisertop
Model Number :
WT-55@26-15COBL11-F1
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PC
Lens type :
TIR Lens
Efficiency :
88%
Certificates :
Rohs
Working temperature :
-40°C~+90°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description
High Lighting Efficiency Free UGR LED Light Lens Diameter 55mm Narrow Beam Angle
Product Overview

High lighting efficiency free glare lens made from PC material with 50mm diameter and wide beam angle of 50°.

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Material

PC (Polycarbonate)

Lens Features
  • High K value
  • Accurate viewing angle - illuminated object is clear and recognizable
  • High light transmittance
  • Maintains high color consistency
  • Natural main light halo fade
  • Rare glare and good shape light spot
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and others

Specifications
Part No Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-55@26-15COBL11-F1 ¢11mm COB 15° φ54.8×26.25 0.88 PC
WT-55@26-24COBL11-F1 ¢11mm COB 24° - 0.88 PC
WT-55@26-36COBL11-F1 ¢11mm COB 36° - 0.88 PC
WT-55@26-50COBL11-F1 ¢11mm COB 50° - 0.88 PC
High Lighting Efficiency Free UGR LED Lens with Narrow Beam Angle for COB LEDs High Lighting Efficiency Free UGR LED Lens with Narrow Beam Angle for COB LEDs
Frequently Asked Questions
1) Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
2) When can I get the quotation?
We usually provide an offer within 12 hours after receiving your inquiry. For urgent requests, please call or email us.
3) What is the lead time?
Samples require about 3-5 days for preparation. Mass production typically takes 1-2 weeks.
4) What are your main products?
Our main products are indoor lenses.
