Low UGR COB LED Lens with 36° Beam Angle and PC Material for Spot Lighting
Low UGR COB LED Lens with 36° Beam Angle and PC Material for Spot Lighting
Specifications
Brand Name :
Wisertop
Model Number :
WT-50@24-36COBL9-F1
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PC
Lens type :
TIR Lens
Efficiency :
88%
Certificates :
Rohs
Working temperature :
-40°C~+90°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description

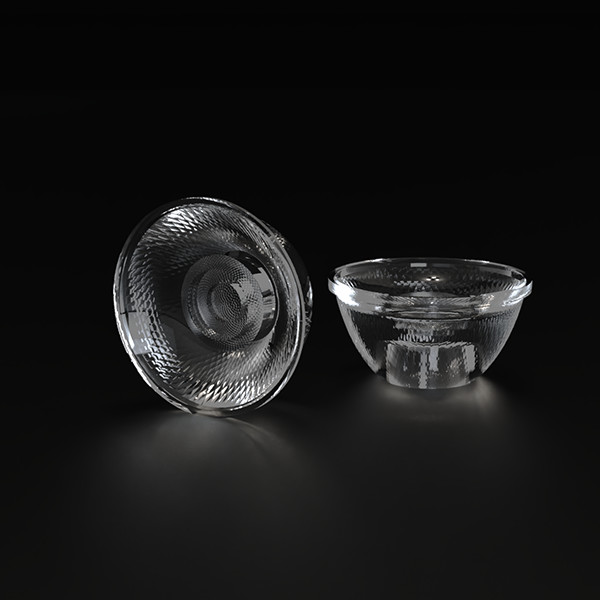

Low UGR Spot Light COB LED Lens PC 50mm
High efficiency low UGR COB Lens made from PC material with 50mm diameter, designed for spot lighting applications with a 36° beam angle.
Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Material

PC (Polycarbonate)

Lens Features
  • High K value
  • Accurate viewing angle with clear and recognizable illuminated objects
  • High light transmittance
  • Maintains high color consistency
  • Natural main light halo fade
  • Reduced glare with well-defined light spot shape
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and other major brands

Specifications
Part No. Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-50@24-15COBL6-F1 ¢6mm COB 15° φ24.8×12.5 0.88 PC
WT-50@24-24COBL9-F1 ¢9mm COB 24° - 0.88 PC
WT-50@24-36COBL9-F1 ¢9mm COB 36° - 0.88 PC
WT-50@24-50COBL9-F1 ¢9mm COB 50° - 0.88 PC
Low UGR COB LED Lens with 36° Beam Angle and PC Material for Spot Lighting Low UGR COB LED Lens with 36° Beam Angle and PC Material for Spot Lighting
Frequently Asked Questions
1) Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
2) When can I get the quotation?
We usually provide quotations within 12 hours after receiving your inquiry. For urgent requests, please contact us directly.
3) What is the lead time?
Samples require approximately 3-5 days for preparation, while mass production typically takes 1-2 weeks.
4) What are your main products?
Our main products are indoor LED lenses for various lighting applications.
