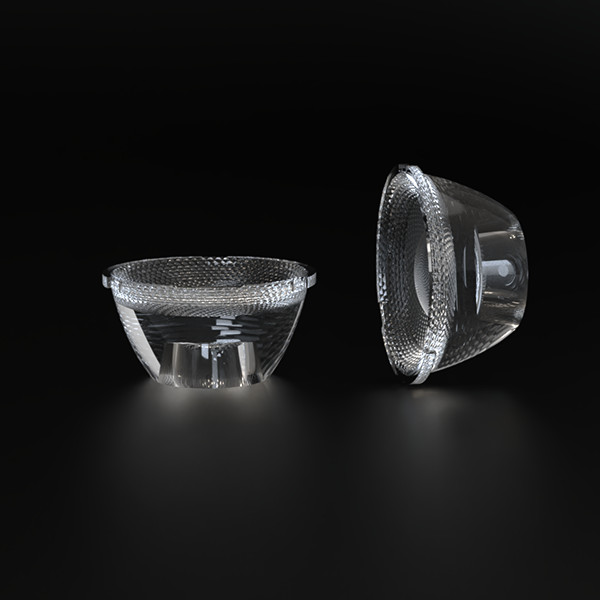

40mm Diameter PC Material TIR Lens with 50° Anti-Glare for Wash Wall Lamp and COB LED Light Sources
40mm Diameter PC Material TIR Lens with 50° Anti-Glare for Wash Wall Lamp and COB LED Light Sources
Specifications
Brand Name :
Wisertop
Model Number :
WT-40@20-50COBL6-C3
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PC
Lens type :
TIR Lens
Efficiency :
88%
Certificates :
Rohs
Working temperature :
-40°C~+90°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description
Diameter 40mm Upgrade Hotel Cut-Off Lens PC Material for Wash Wall Lamp VA 50° Anti-Glare
Product Overview

High-performance 40mm diameter cut-off lens designed for wash wall lamps, featuring PC material construction and 50° anti-glare properties for superior lighting control.

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Specifications

Material: PC (Polycarbonate)

Key Features
  • Clear visual viewing angle at different angles
  • Suitable for deep anti-glare applications with high light shape requirements
  • Highly uniform color consistency and light intensity
  • Natural faded light with full integration into natural environments
  • Extremely soft light spot distribution
Compatible Light Sources

Fits COB light sources from leading manufacturers including Cree, Lumileds, Bridgelux, Citizen, and others.

Technical Specifications
Part No. Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-40@20-24COBL6-C3 ¢6mm COB 24° φ39.8×20 88% PC
WT-40@20-36COBL6-C3 ¢6mm COB 36° φ39.8×20 88% PC
WT-40@20-50COBL6-C3 ¢6mm COB 50° φ39.8×20 88% PC
WT-40@20-60COBL6-C3 ¢6mm COB 60° φ39.8×20 88% PC
Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
When can I get the quotation?
We usually provide quotations within 12 hours after receiving your inquiry. For urgent requests, please contact us directly.
What is the lead time?
Samples require approximately 3-5 days for preparation. Mass production typically takes 1-2 weeks.
What are your main products?
Our main products are indoor lenses for various lighting applications.
