PC Material TIR Lens with 36° Anti-Glare and 88% Efficiency for Spot Light Applications
PC Material TIR Lens with 36° Anti-Glare and 88% Efficiency for Spot Light Applications
Specifications
Brand Name :
Wisertop
Model Number :
WT-45@22-36COBL9-C3
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PC
Lens type :
TIR Lens
Efficiency :
88%
Certificates :
Rohs
Working temperature :
-40°C~+90°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description

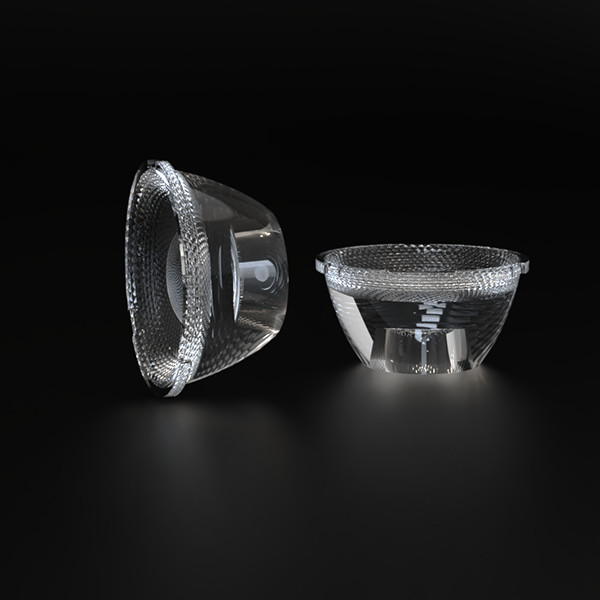

Diameter 45mm Upgrade Hotel Cut-Off Lens PC Material for Spot Light VA 36° Anti-Glare
Product Overview

High-performance 45mm diameter cut-off lens designed for spot lighting applications, featuring PC material construction and 36° anti-glare technology for superior light control.

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Specifications

Material: PC (Polycarbonate)

Key Features
  • Clear visual viewing angle at different angles
  • Suitable for deep anti-glare applications with high light shape requirements
  • Highly uniform color consistency and light intensity
  • Natural faded light with full integration into natural environment
  • Extremely soft light spot distribution
Compatible Light Sources

Fits COB light sources from major manufacturers including Cree, Lumileds, Bridgelux, Citizen, and others.

Technical Specifications
Part No. Light-emitting Surface FWHM Size (mm) Typ. Eff. Material
WT-45@22-15COBL9-C3 ¢6mm COB 15° φ44.8×19.05 88% PC
WT-45@22-24COBL9-C3 ¢9mm COB 24° φ44.8×19.05 88% PC
WT-45@22-36COBL9-C3 ¢9mm COB 36° φ44.8×19.05 88% PC
WT-45@22-50COBL9-C3 ¢9mm COB 50° φ44.8×19.05 88% PC
WT-45@22-60COBL9-C3 ¢9mm COB 60° φ44.8×19.05 88% PC
Frequently Asked Questions
1) Can I have a sample order?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

2) When can I get the quotation?

We usually provide quotations within 12 hours after receiving your inquiry. For urgent requests, please contact us directly.

3) What is the lead time?

Samples require approximately 3-5 days for preparation. Mass production typically takes 1-2 weeks.

4) What are your main products?

Our main products are indoor lighting lenses for various applications.
