36 Degree High Light Transmittance PMMA LED Optical Lens for Downlight and COB Applications
36 Degree High Light Transmittance PMMA LED Optical Lens for Downlight and COB Applications
36 Degree High Light Transmittance PMMA LED Optical Lens for Downlight and COB Applications
36 Degree High Light Transmittance PMMA LED Optical Lens for Downlight and COB Applications
Specifications
Brand Name :
Wisertop
Model Number :
WT-45@22-36COBL9-Y1
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PMMA
Lens type :
TIR Lens
Efficiency :
93%
Certificates :
Rohs
Working temperature :
-40°C~+70°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description

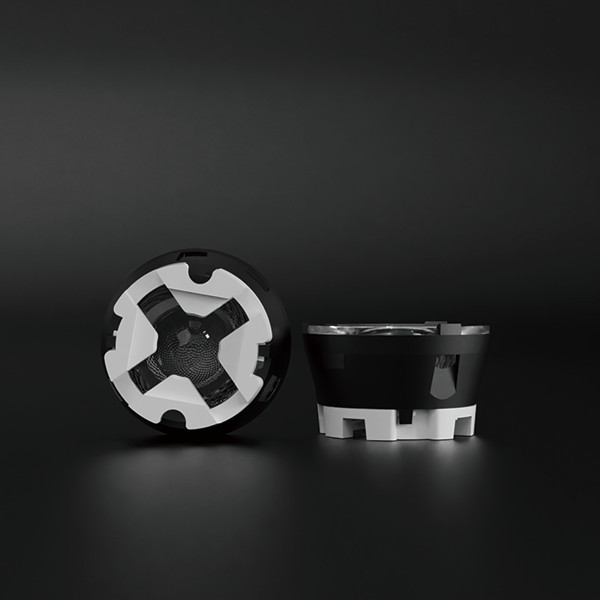

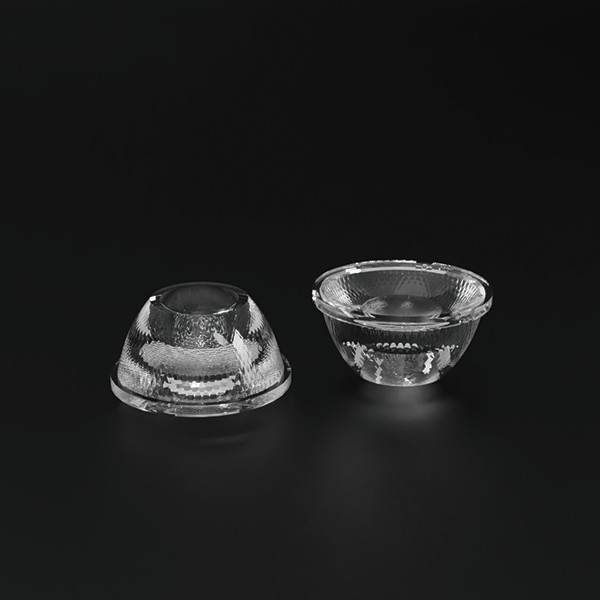

PMMA Downlight LED Optical Lens 36 Degree High Light Transmittance
Product Overview

Beam angle 36° COB Lens made from PMMA material for down lights. High performance match for Luminus COB with 45mm diameter.

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Material

PMMA all available

Lens Features
  • High K value
  • Accurate viewing angle, illuminated object is clear and recognizable
  • High light transmittance
  • Maintain high color resistance
  • The main light halo fades naturally
  • Low glare and good shape light area
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and more

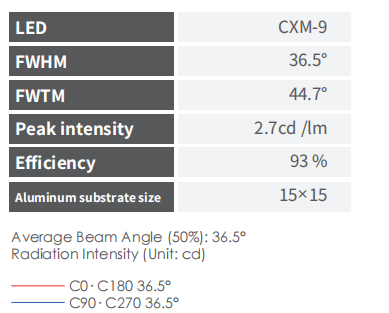

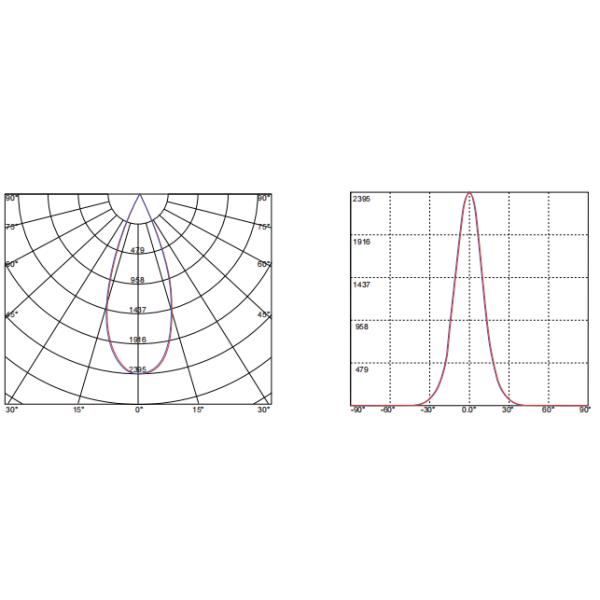

Specifications
Part No Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-45@22-15COBL9-Y1 ¢6mm COB 15° φ44.8×22.5 93% PMMA
WT-45@22-24COBL9-Y1 ¢9mm COB 24° 93% PMMA
WT-45@22-36COBL9-Y1 ¢9mm COB 36° 93% PMMA
WT-45@22-50COBL9-Y1 ¢9mm COB 50° 93% PMMA
36 Degree High Light Transmittance PMMA LED Optical Lens for Downlight and COB Applications 36 Degree High Light Transmittance PMMA LED Optical Lens for Downlight and COB Applications
Frequently Asked Questions
1) Can I have a sample order?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

2) When can I get the quotation?

We usually give you an offer within 12 hours after we get your inquiry. But if you want to get the offer ASAP, please call us or email us.

3) What is the lead time?

Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.

4) What are your main products?

Our main products are indoor lenses.
