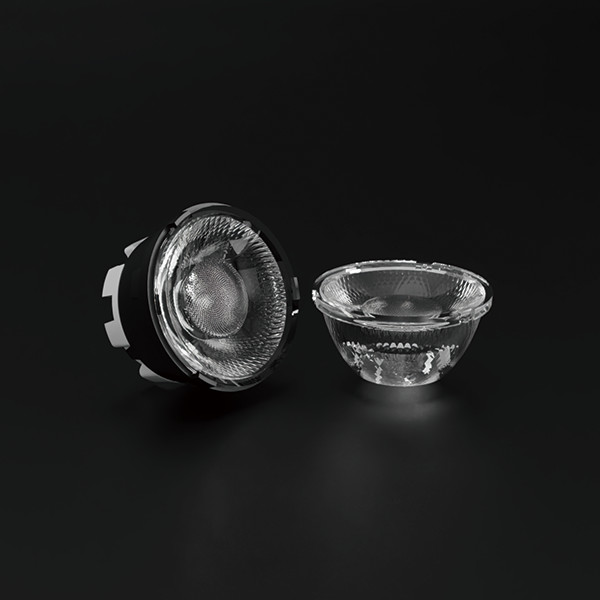

High Efficiency 15° Viewing Angle PMMA TIR LED Lens for COB Spot Light
High Efficiency 15° Viewing Angle PMMA TIR LED Lens for COB Spot Light
Specifications
Brand Name :
Wisertop
Model Number :
WT-45@22-15COBL9-Y1
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PMMA
Lens type :
TIR Lens
Efficiency :
93%
Certificates :
Rohs
Working temperature :
-40°C~+70°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description
High Lighting Efficiency Match Osram LED Lenses Viewing Angle 15 Degree
Product Overview

Viewing angle 15° COB Lens PMMA material for Spot light with high lighting efficiency, compatible with Osram COB Diameter 45mm.

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Material

PMMA all available

Lens Features
  • High K value
  • Accurate viewing angle, illuminated object is clear and recognizable
  • High light transmittance
  • Maintain high color resistance
  • The main light halo fades naturally
  • Low glare and good shape light area
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and more

Specifications
Part no Light-emitting surface FWHM Size (mm) Typ.eff Material
WT-45@22-15COBL9-Y1 ¢6mm COB 15° φ44.8×22.5 93% PMMA
WT-45@22-24COBL9-Y1 ¢9mm COB 24° 93% PMMA
WT-45@22-36COBL9-Y1 ¢9mm COB 36° 93% PMMA
WT-45@22-50COBL9-Y1 ¢9mm COB 50° 93% PMMA
High Efficiency 15° Viewing Angle PMMA TIR LED Lens for COB Spot Light High Efficiency 15° Viewing Angle PMMA TIR LED Lens for COB Spot Light
Frequently Asked Questions
Can I have a sample order?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

When can I get the quotation?

We usually provide an offer within 12 hours after receiving your inquiry. For urgent requests, please call or email us.

What is the lead time?

Samples require about 3-5 days for preparation, while mass production typically takes 1-2 weeks.

What are your main products?

Our main products are indoor lenses.
