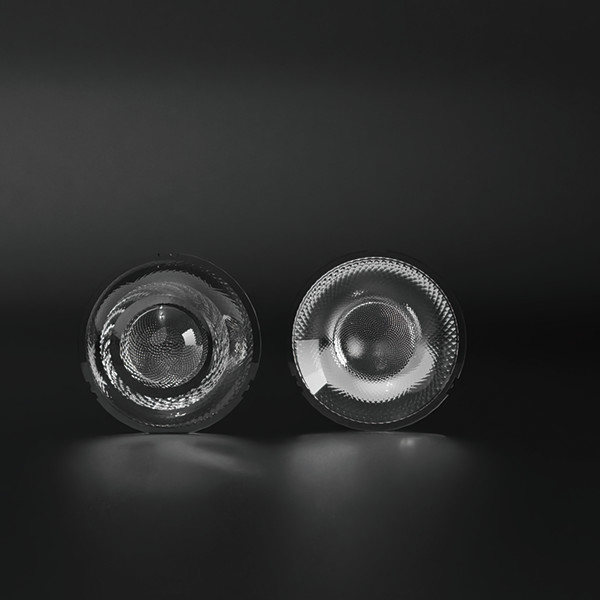

High Performance 93% Efficiency PMMA TIR LED Lens Compatible with Bridgelux COB
High Performance 93% Efficiency PMMA TIR LED Lens Compatible with Bridgelux COB
High Performance 93% Efficiency PMMA TIR LED Lens Compatible with Bridgelux COB
High Performance 93% Efficiency PMMA TIR LED Lens Compatible with Bridgelux COB
Specifications
Brand Name :
Wisertop
Model Number :
WT-45@22-24COBL9-Y1
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PMMA
Lens type :
TIR Lens
Efficiency :
93%
Certificates :
Rohs
Working temperature :
-40°C~+70°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description
Tracking Light PMMA TIR Lens High Performance Bridgelux COB LED Lens
Product Overview

Viewing angle 24° PMMA material lens designed for tracking light applications, providing high performance compatibility with Bridgelux COB LEDs. Diameter: 45mm.

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Features
  • High K value
  • Accurate viewing angle - illuminated objects are clear and recognizable
  • High light transmittance
  • Maintains high color resistance
  • Natural main light halo fade
  • Low glare with well-defined light area
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and more

Specifications
Part No Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-45@22-15COBL9-Y1 ¢6mm COB 15° φ44.8×22.5 93% PMMA
WT-45@22-24COBL9-Y1 ¢9mm COB 24° - 93% PMMA
WT-45@22-36COBL9-Y1 ¢9mm COB 36° - 93% PMMA
WT-45@22-50COBL9-Y1 ¢9mm COB 50° - 93% PMMA
High Performance 93% Efficiency PMMA TIR LED Lens Compatible with Bridgelux COB High Performance 93% Efficiency PMMA TIR LED Lens Compatible with Bridgelux COB
Frequently Asked Questions
1) Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
2) When can I get the quotation?
We usually provide an offer within 12 hours after receiving your inquiry. For faster response, please call or email us.
3) What is the lead time?
Samples require about 3-5 days for preparation. Mass production time typically needs 1-2 weeks.
4) What are your main products?
Our main products are indoor lenses.
