10° Narrow Angle PMMA LED Lens with 93% Efficiency for COB and TIR Optics in Tracking Lights
10° Narrow Angle PMMA LED Lens with 93% Efficiency for COB and TIR Optics in Tracking Lights
Specifications
Brand Name :
Wisertop
Model Number :
WT-45@22-10COBL6-Y1
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PMMA
Lens type :
TIR Lens
Efficiency :
93%
Certificates :
Rohs
Working temperature :
-40°C~+70°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description
Narrow Angle 10 Degree LED Lens For Tracking Light Match Luminus COB
Product Overview

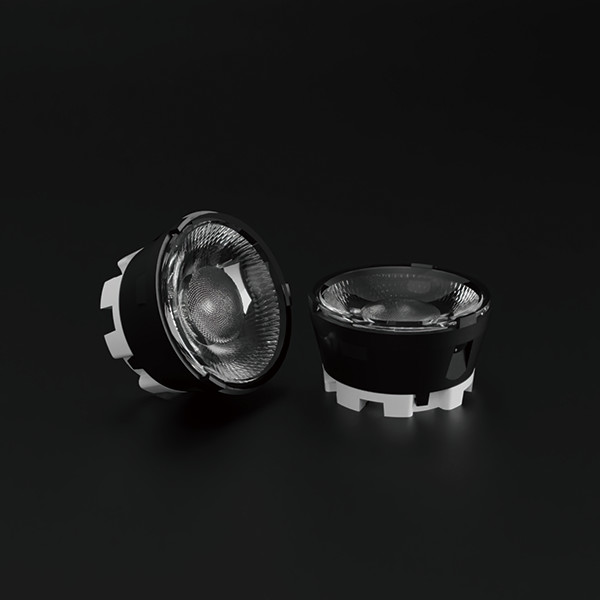

Narrow beam angle 10° COB Lens made from PMMA material for tracking lights, compatible with Luminus COB. Diameter: 45mm.

Applications
  • Spot light
  • Down light
  • Tracking light
  • Recessed lamp
  • Ceiling light
Lens Features
  • High K value
  • Accurate viewing angle with clear and recognizable illumination
  • High light transmittance
  • Maintains high color resistance
  • Natural main light halo fade
  • Low glare with good shape light area
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and more.

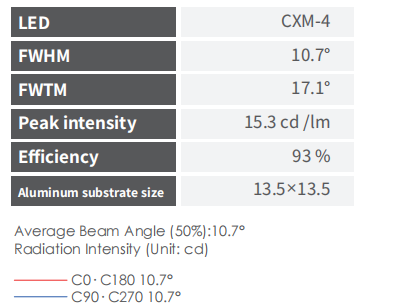

Specifications
Part No. Light-emitting Surface FWHM Size (mm) Typ. Eff. Material
WT-45@22-15COBL9-Y1 ¢4/¢6mm COB 10° φ44.8×22.5 93% PMMA
10° Narrow Angle PMMA LED Lens with 93% Efficiency for COB and TIR Optics in Tracking Lights 10° Narrow Angle PMMA LED Lens with 93% Efficiency for COB and TIR Optics in Tracking Lights
Frequently Asked Questions
1) Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
2) When can I get the quotation?
We usually provide an offer within 12 hours after receiving your inquiry. For urgent requests, please call or email us.
3) What is the lead time?
Samples require about 3-5 days for preparation. Mass production typically takes 1-2 weeks.
4) What are your main products?
Our main products are indoor lenses.
