PMMA TIR Lens with 15 Degree Beam Angle for Uniform Light Distribution and Low Glare in LED Lighting
PMMA TIR Lens with 15 Degree Beam Angle for Uniform Light Distribution and Low Glare in LED Lighting
Specifications
Brand Name :
Wisertop
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Model Number :
WT-35@11-AVG15-L6
Certification :
Rohs
Material :
PC
Lens type :
TIR lens
Beam angle :
15 degree
Application :
indoor lighting fixture
Light sources :
Brand COB as Luminus, Bridgelux Cree....
Description
Uniform Light Series PMMA TIR Lens For Wall Washer High Lighting Efficiency
Product Overview

PMMA Lens Uniform Light Series Lens for wall washer with high performance characteristics designed for superior lighting applications.

Applications
  • Down light
  • Ceiling light
  • Hotel Down light
Lens Material

PMMA (all available)

Lens Features
  • Low glare
  • Natural light cutting, better fusion space
  • Wide viewing angle distribution, full and uniform
  • Clean, integrated and uniformly distributed deep anti-glare light distribution type
Compatible Light Sources

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen, and more.

Specifications
Part no Light-emitting surface FWHM Size (mm) Typ.eff Material
WT-35@11-AVG15-L6 ¢4mm COB 15° φ34.8×12.6 0.88 PC
WT-35@11-AVG24-L6 ¢6mm COB 24° 0.88 PC
WT-35@11-AVG24S-COBL6 ¢6mm COB 24° 0.88 PC
WT-35@11-AVG36-L6 ¢6mm COB 36° 0.88 PC
WT-35@11-AVG55-L6 ¢6mm COB 60° 0.88 PC

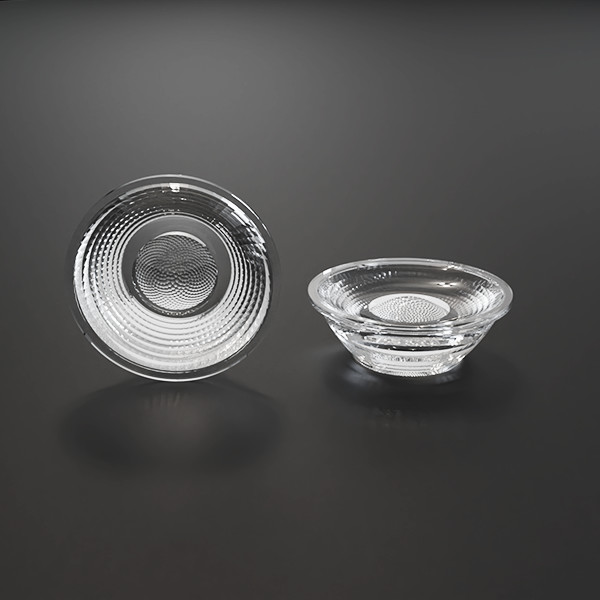

Product Images
PMMA TIR Lens with 15 Degree Beam Angle for Uniform Light Distribution and Low Glare in LED Lighting PMMA TIR Lens with 15 Degree Beam Angle for Uniform Light Distribution and Low Glare in LED Lighting
Frequently Asked Questions
1) Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
2) When can I get the quotation?
We usually provide an offer within 12 hours after receiving your inquiry. For faster response, please call or email us.
3) What is the lead time?
Samples require about 3-5 days for preparation, while mass production typically takes 1-2 weeks.
4) What are your main products?
Our main products are indoor lenses.
