CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting
CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting
CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting
CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting
CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting
CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting
Specifications
Brand Name :
LEDIO
Model Number :
6090/1260/1313/1325/2030
Certification :
CE FDA
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T Western Union
Supply Ability :
150pcs
Delivery Time :
5-10 working days
Price :
USD 1750-4000
Packaging Details :
Wooden Package
Name :
CNC Router Machine
Application :
non-metal sheet, PVC, Wood carving and Cutting
voltage :
110V/220V
Spindle :
water cooled 1.5kw / 2.2kw /3kw
color :
white blue black
Material :
iron steel cast alloy
Motor :
Stepper
Rail :
Square
Voltage :
220V 50-60 Hz or accordingly
Description

CNC Router Machine For Two-Color Sheet Hotfix Rhinestone Template Making

Auto Drilling CNC Router Machine For Template making for hotfix rhinestone

Model

6090

Working area

600*900*100mm

driver and motor

stepper 860 driver and 450A motor

Spindle motor

1.5kw water cooling spindle motor

Inverter

Best brand Frequency inverter

machine table

PVC table combined aluminum T-slot extrusion

X Y Z travelling Positioning Accuracy

0.08/300mm

X Y Z travelling repositioning Accuracy

±0.05mm

Frame

cast iron body structure

X Y structure

Taiwan Hiwin square liner guide and block

Z axis Structure

Ball screw

Max Rapid travel rate

10000mm/min

Max Working speed

8000mm/min

Working Voltage

AC220V 50HZ/60HZ

Control system

NC Studio control system

Limited stop

Extra-travel limit stop and hard limit stop

set collect

including 3.175mm,4mm,6mm

Machine accessories

including 14 tools

Package

Solidwood wooden package

CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting

Applicable Materials & Industries

Applicable Materials: Plexiglas/ acrylic/ double-color board/ ABS board/ PVC board/ circuit board/ inscribed wooden slip/ wooden board etc.

Applicable Industries: Advertisement signs/ marks/ brands/ Blister light box mould/ casting mould/ circuit board manufacture/ electroplating drill/ art craft works/ crystal works/ wood products/ decoration/ upholster and other related industries.

Configuration picture show

CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving CuttingCNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting

CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting

CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting

China stepper motor and drivers

1.5kw water cooling spindle motor

Best brand Frequency inverter

CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting

CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting

CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting

NC Studio control system

Collect including 3.175mm,4mm,6mm

Accessories 14 pieces tools

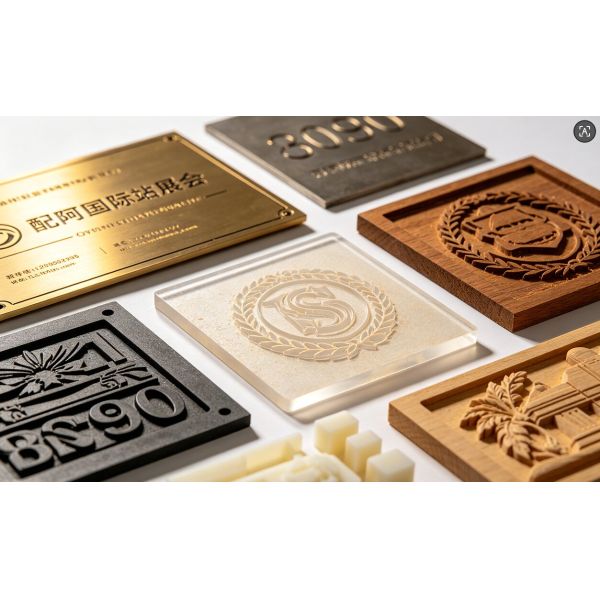

Sample show

CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting

CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting

CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Engraving Cutting
