DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting
DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting
DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting
DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting
DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting
DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting
DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting
DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting
Specifications
Brand Name :
Phenson
Model Number :
PS-D6018-UCS2903
Certification :
CE Rohs
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Supply Ability :
50kk/month
Packaging Details :
0.45kg/pcs
Diameter :
60mm
Item type :
LED Amusement Lights
Voltage :
DC24V
Color :
RGB Full color
IC chip :
2903
IP grade :
IP20/IP65
Description

DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting

Product details,

Product name 60mm diameter funfair park lighting pixel lamp
Model PS-D6018-UCS2903
IC/ protocol UCS2903
LED chip/ channel RGB 3channels
Lighting degree 360 degree lighting
IP grade IP65
Plugs 3pin waterproof/ nonwaterproof JST SM plugs
Cable spacing 15cm cable length
Cable color Transparent, black optional

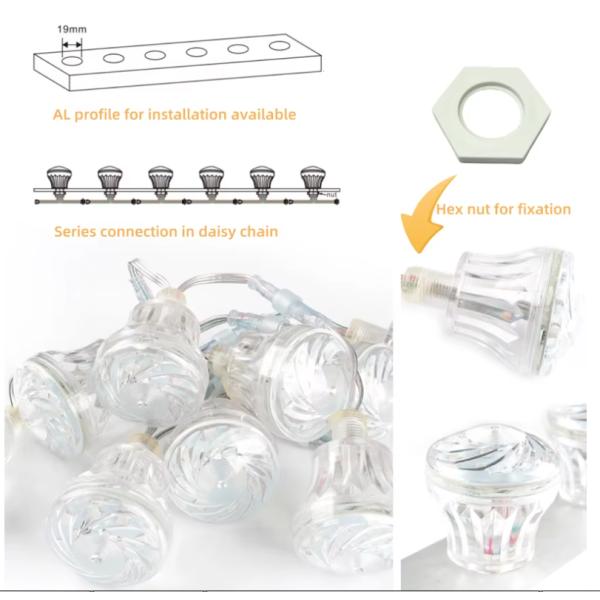

Component 19mm hole hex nut for fixation

Features:
Control IC: Each of the 18 pixels contains a UCS2903 chip for precise individual control.

Waterproofing: Two options are available: an IP20 version (for indoor use) with JST connectors, or a highly waterproof IP65 version featuring filled silicone glue and robust connectors.

Power Supply: Must be powered by a 24V DC source. Important: Exceeding this voltage will irreparably damage the pixels.

Cover Design: Select from a 60mm spiral cover or a faceted diamond cover to achieve the desired aesthetic and light diffusion pattern.

Connectors: Utilizes 3-pin waterproof connectors for secure and easy daisy-chaining. The pin configuration is: Data (DAT), +24V Power (DC24V+), and Ground (GND-).

Key Advantages: This product delivers exceptional performance characterized by high luminous intensity, very low energy consumption, a long operational life, minimal attenuation over time, and superb color rendering.

Creative Applications: Flexible installation techniques enable the creation of countless dynamic and captivating lighting displays.

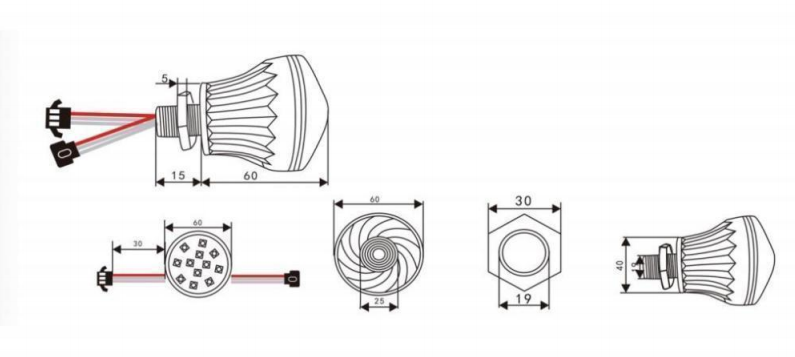

Demension:

DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting

DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting

DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting

DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting

DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting

Main features ,

Clear PC Shell
60mm diameter
18pcs SMD5050

Application:

- Stage video elements for intimate or large concert productions
- Interior design for clubs, coffee / wine bars, shopping malls, museums,themed envirnments
- Exhibitions stands, advertising,Led screen
- Garden square green trees
- Architectural lights for corridor, canopy, archway, lights
- Commercial lighting in public places such as square and amusement park

DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting
