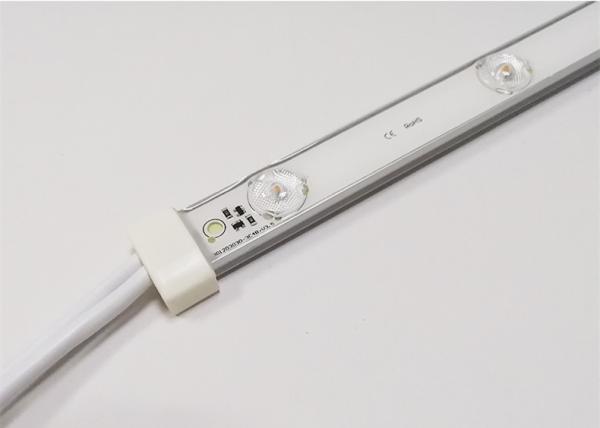

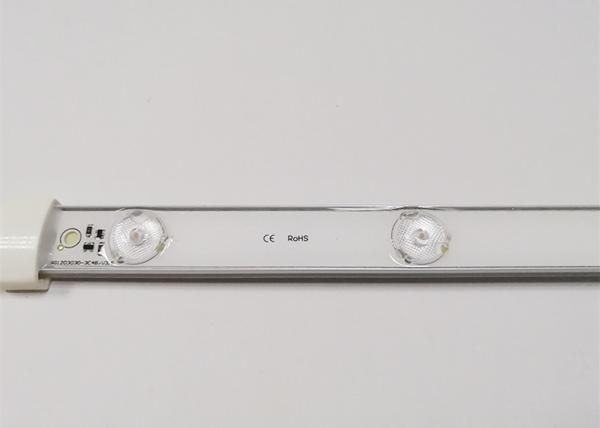

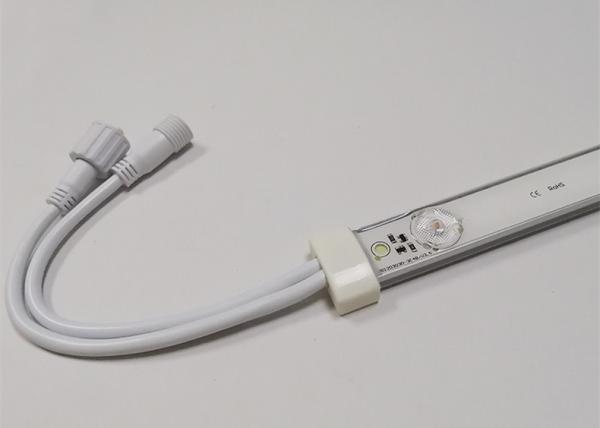

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar
Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar
Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar
Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar
Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar
Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar
Specifications
Brand Name :
Phenson
Model Number :
PS-B106
Certification :
CE,ROHS FCC
Place of Origin :
Shenzhen,China
MOQ :
100pcs
Payment Terms :
Western Union, T/T
Delivery Time :
7~10 days
LED source :
Osram SMD3030
Part No :
PS-B106
Beam angle :
175°
Color temperature :
6500K
lm/Heart :
135lm
Length :
515mm
Protection grade :
IP65
Produce name :
LED backlight bar
Working voltage :
DC12V
Description

LED Back Light Bar High Brightness And Low Attenuation With Osram SMD3030 DC24V IP33

Product details,

1. DC24V constant voltage single head power supply, triode constant
current drive, two lamps and one shear, high utilization rate, good
consistency.

2. 175°TV large Angle diffuse reflection optical lens, uniform light
effect without macular.

3. The light source is osram SMD3030, high brightness, low light decay,
good color uniformity, long life, good stability.

4. High thermal conductivity aluminum substrate with a thickness of
1.2mm provides reliable heat dissipation for light source and improves
product life.

5. .Adopt 6063 aviation aluminum profile for heat dissipation, silicone
waterproof, effectively solve the problem of waterproof heat
dissipation.

Part No. CCT Working voltage LED source W/pcs Lm/Heart Length(mm) LED Qty
PS-B106-6D 6500K DC24V SMD 3030 6 135 515 6pcs
PS-B106-8D 6500K DC24V SMD 3030 8 135 680 8pcs
PS-B106-10D 6500K DC24V SMD 3030 10 135 845 10pcs
PS-B106-12D 6500K DC24V SMD 3030 12 135 1010 12pcs

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight BarLow Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar
