Specifications
Brand Name :
LEDIKA
Model Number :
FT60120
Certification :
TUV/SGS/CE
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T 30% deposit, 70% balance
Supply Ability :
50pcs per month
Delivery Time :
15 days
Packaging Details :
Carton packing
Size of truss :
1-4m
Product Name :
Folding Truss
Material :
Aluminum 6082-T6
Application :
Outdoor
Events :
Exhibition,auto show
Color :
Silver, black
Size of tube :
50*4mm
Connector :
Spigot
Weight :
20kg per meter
Description

Foldable Aluminum Truss Stage Trussing 50×4 mm tube For Heavy - Duty Event Project

Foldable Aluminum Truss Stage Trussing 50×4 mm tube For Heavy - Duty Event Project

Description:

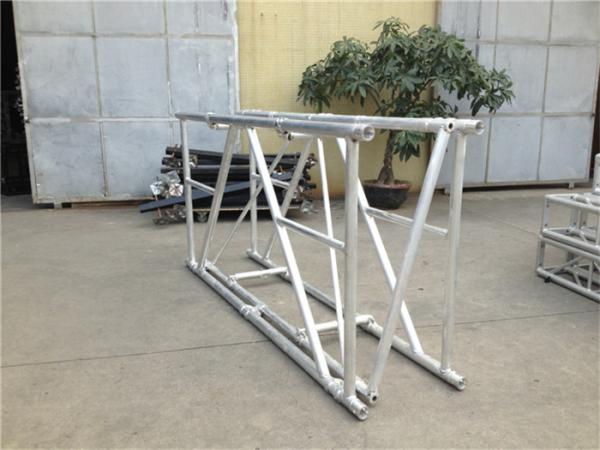

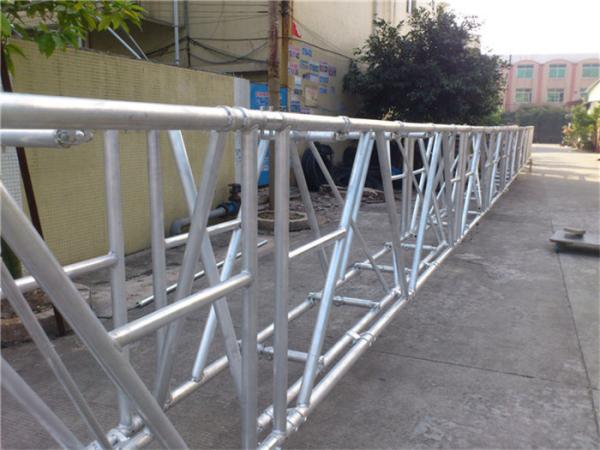

Heavy duty folding truss is normally use for big events like auto show, becuase it is heavy so we have designed the truss to be folding which is easy for transportion and fast for installation.

Specifications:

Allowable Loading
6082-T6 50*4mm tube as main tube 30*2mm as brace tube
Span LOAD ALL Unitformly distributed load(UDL) Centre point load(CPL) DEFLECTION
( M ) ( ft ) ( KG ) ( KG ) ( KG ) ( mm )
2.4 7.9 1898.7 791.1 1877.1 0.1
4.8 15.7 1866.0 388.8 1877.1 1.0
7.2 23.6 1832.7 254.5 1692.7 3.2
9.6 31.5 1800.3 187.5 1501.0 7.5
12.0 39.4 1767.2 147.3 1348.5 14.5
14.4 47.2 1734.1 120.4 1224.3 24.5
16.8 55.1 1701.0 101.3 1120.3 38.2
19.2 63.0 1668.8 86.9 1033.5 56.0
21.6 70.8 16634.9 75.7 958.7 78.1
24.0 78.7 1553.6 64.7 894.0 101.8
26.4 86.6 1455.8 55.1 837.5 127.0
28.8 94.5 1356.8 47.1 787.9 153.5
31.2 102.3 1253.4 40.2 743.6 180.4
33.6 110.2 1153.4 34.3 704.1 207.2
36.0 118.1 1055.1 29.3 668.6 233.0

Advantages

1. 15 years perfessional stage truss big events experience since 2001.
2. Projects case are cover to all over the world.
3. LEDIKA Brand is famous in many countries and government tender brand.
4. OEM and R&D support.
5. We attend to prolight show every year.
6. With material 6082 T6 guarantee certification.
7. Have TUV and ISO certification.
8. Honor of experiences worked for 2007 Special Olympic, 2008 Beijing Olympic Games, Asian Games, Shanghai Expo and World Youth Skiing Championships etc.
9. Best quality aluminium truss and stage, strict working production process.
10. Life-time after sales service.
