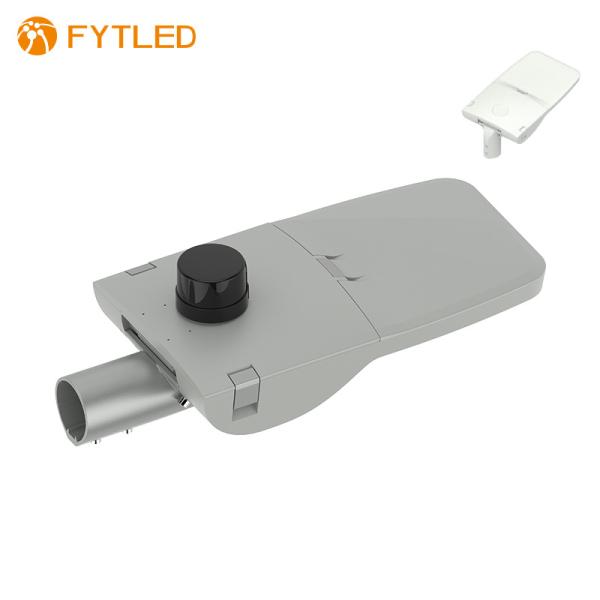

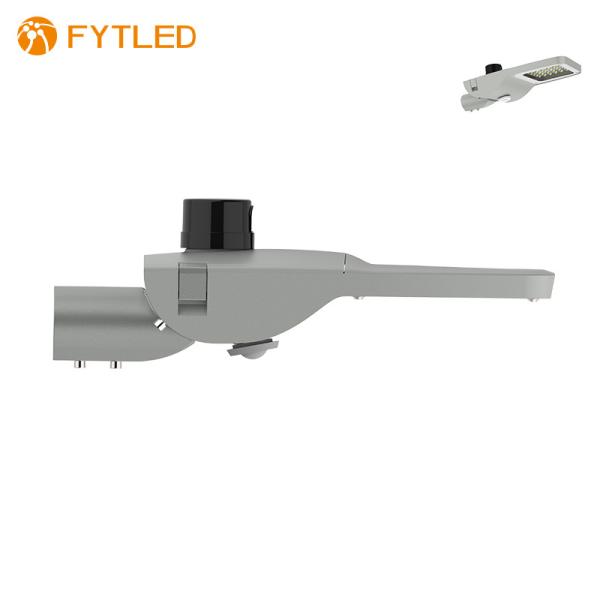

Dust Free IP66 Street Lights
Dust Free IP66 Street Lights
Dust Free IP66 Street Lights
Dust Free IP66 Street Lights
Dust Free IP66 Street Lights
Dust Free IP66 Street Lights
Specifications
Brand Name :
FYTLED
Model Number :
T68-60W
Certification :
SAA, RCM
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
5000PCS per month
Delivery Time :
20-25 working days
Packaging Details :
1pcs/carton
Color :
Grey
Warranty :
5 years
Material :
Aluminum
Wattage :
60W
Description

140lm/W dust-free 60W street light easy maintenance IP66 SAA

The Nero T68 street light is an ideal solution for road and street lighting. It is available from 30W to maximum 150W, which offers common beam angles T2-S and T3-M for double carriage ways and triple carriage ways. 5 years warranty is default and 10 years warranty is optional.

Product keypoints:

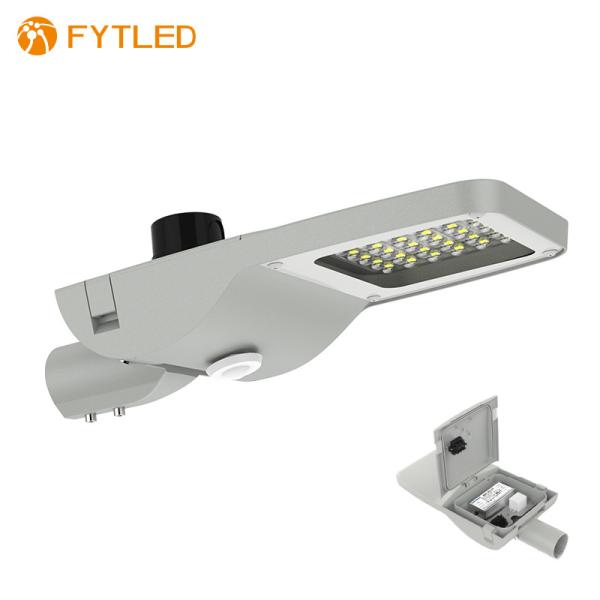

  • Maintenance flap for quick access to the independent driver compartment for maintenance(i.e. driver replacement)
  • ±15° installation angle adjustment(each 5° to max. ±15°)
  • Excelllent waterproof performance IP66
  • Dust-free thanks to sleek surface design
  • 5 or 10 years warranty
  • Lumen efficiency up to 140lm/W(EMC 5050 led chips)

Options
  • Surge protection device(SPD) 20KV(10KV SPD is included without additional charge)
  • Curcuit interrupter(The power will be cut off automatically to ensure the safety of the technician under maintenance work)
  • Coating brand "AkzoNobel"(for seashore projects)
  • Class II optional
  • 3pin, 5pin, 7pin NEMA base
  • Microwave motion sensor, Photocell daylight sensor and photocontroller
  • 1-10V dimmable and DALI dimmable
Area of application
  • Road and street

Basic Specifications
Model Nominal Wattages (W) Nominal Voltage Rated luminous efficacy(lm/w) Nominal luminous flux(lumen) Beam Angle LED Quantity CRI
T68-30W 30W AC100-277V 50~60Hz 140±10 4200±300 T2-S
T3-M		 16pcs 5W EMC5050 >70
T68-40W 40W 5600±400 16pcs 5W EMC5050
T68-50W 50W 7000±500 16pcs 5W EMC5050
T68-60W 60W 8400±600 36pcs 5W EMC5050
T68-80W 80W 11200±800 36pcs 5W EMC5050
T68-100W 100W 14000±1000 48pcs 5W EMC5050
T68-120W 120W 16800±1200 48pcs 5W EMC5050
T68-150W 150W 21000±1500 64pcs 5W EMC5050

Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white; natural white; cold white
Type of current AC100-277V Available color temperatures 3000K; 4000K; 5000K; 6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92% Standard deviation of color matching <5
UGR (Unified Glare Rating) <27

Standards & Certification Temperatures & operating conditions
Type of protection IP66 Heatsink temperature -20~+69℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+40℃
Safety features Open circuit protection Storage temperature -40~+80℃
Short circuit protection
Overvoltage protection
Certificates ENEC, CB, CE, RoHS, SAA, RCM
Energy efficiency class A++

Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 100.000 hours Base/Socket Directly wired
Switching cycles 100,000 times
Lumen maintenance at e.o.l. 80%

Packing Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight/CTN(kg)
T68-60W 558*258*105MM 67*34.5*22.5 1PCS 6.7 8.5

Dust Free IP66 Street Lights


FAQ

1. Q: Where is your target market?

A: Europe is our main market, followed by North America, Asia, Australia and South America. Our products are qualified necessary certifications including CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA, etc..

2.Q: What is your MOQ?

A: It's allowed to place sample order to evaluate the product quality and performance. MOQ is 1 unit for sample order.

3.Q: How long is the sample production time?

A: It takes about 10 days for delivery.

4.Q: What is the Payment?

A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) 100%

2) 30% advance deposit, the Balance should be paid off before delivery.
As our cooperation deepens, we can discuss further about the payment terms

5.Q:How long is the delivery time?

A: The delivery time is around 4-5 weeks for qty<200 and 6-8 weeks for 200<qty<500
