SMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy Installation
SMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy Installation
SMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy Installation
SMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy Installation
SMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy Installation
SMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy Installation
SMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy Installation
SMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy Installation
SMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy Installation
SMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy Installation
Specifications
Brand Name :
FYTLED
Model Number :
T56 20W TO 110W
Certification :
CE UL DLC
Place of Origin :
CHINA
MOQ :
6 or 4 piece
Price :
US23/PCS
Payment Terms :
L/C, T/T, D/A, MoneyGram
Supply Ability :
900 PCS per day
Delivery Time :
2-3 weeks
Packaging Details :
6 PCS/Carton
Power :
20W~110W
Color :
White
Housing :
PC&aluminum
CCT :
3000K 4000K 5000K 6000K
CRI :
>80
Efficiency :
130lm/W
Warranty :
5 years
Description
130lm/W high efficiency T56 E-power tri-proof light AC100-277V SMD2835 20W~110W 5 years warranty

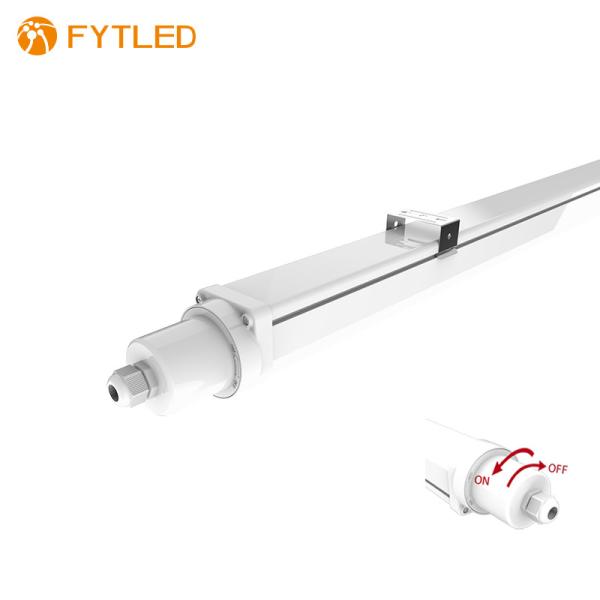

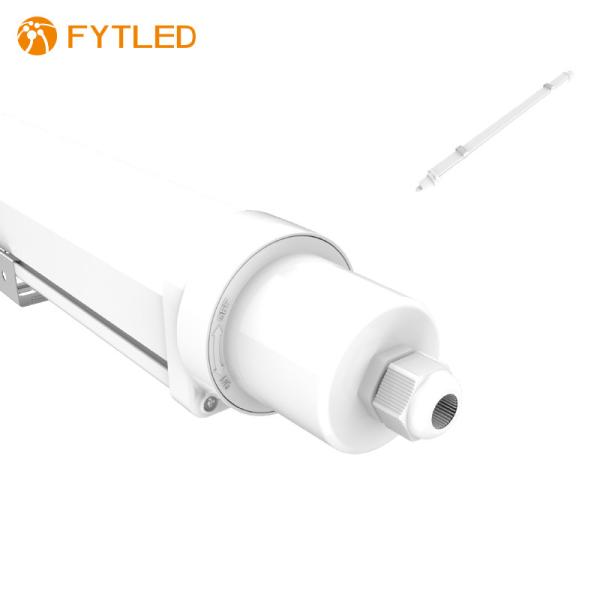

The end-caps feature rotary knob for tool-free wiring and fast installation.
This massive internal aluminum core provides excellent heat dissipation and maximum stability.
High quality FYT power driver contains real Rubycon capacitors, Toshiba IC’s and other high grade components. The driver is completely free
of flicker and buzzing.

Advantage:

-130 lm/w,up to 14300lm
-20W~110W
-600mm~2400mm

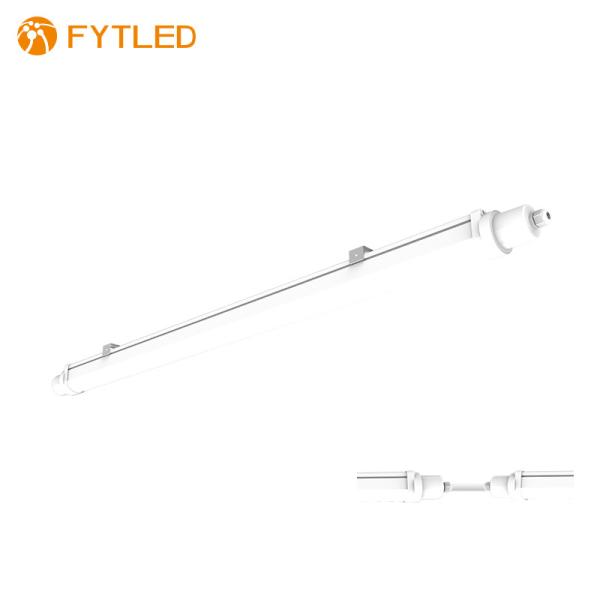

-can be single use or linkable use
-IP65 IK10
-5 Years warranty

OPTIONS

-1-10V dimmable, DALI dimmable
-CRI 90 Ra available upon request
-3-Phase wiring
-Flicker free driver

AREA OF APPLICATION

-Factories and production areas
-Parking facilities, corridors and hallways
-Warehouses and storage rooms

CERTIFICATIONS
European market:CE (EMC, LVD, RoHS),D-Mark
North American market:UL, DLC,FCC
INCLUDED MOUNTING ACCESSORY
(Surface mounting bracket is optional)
Product Specification
Model Size Rated Power Input Voltage LED Quantity Color Temperature Rated
Luminous
Flux		 CRI IP Grade
T56-20W06 560*72*78mm 20W AC100~277V 50~60Hz 120 PCS 0.5W SMD2835 3000K, 4000K,
5000K, 6000K		 2700±100lm >80 IP65
T56-30W06 560*72*78mm 30W 120 PCS 0.5W SMD2835 3900±150lm
T56-40W12 1170*72*78mm 40W 192 PCS 0.5W SMD2835 5400±200lm
T56-60W12 1170*72*78mm 60W 192 PCS 0.5W SMD2835 7800±300lm
T56-60W15 1470*72*78mm 60W 240 PCS 0.5W SMD2835 8100±300lm
T56-75W15 1470*72*78mm 75W 240 PCS 0.5W SMD2835 9700±400lm
T56-80W24 2370*72*78mm 80W 480 PCS 0.5W SMD2835 10800±400lm
T56-110W24 2370*72*78mm 110W 480 PCS 0.5W SMD2835 14300±500lm
Electrical data&Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >80
Efficiency in % >92% Standard deviation of color matching <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <23
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles 120°

LEAD TIME
5-7 days for sample
2-4 weeks for bulk order

SMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy InstallationSMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy InstallationSMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy InstallationSMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy InstallationSMD2835 130lm/W Waterproof LED Tube Light Fixtures Easy Installation

PACKING
Model Dimension(mm) CTN Size(cm) QTY/CTN N.W/pc (kg) G.W/CTN (kg)
T56-20W06/T56-30W06 560*72*78 72*35*22 6 pcs 0.9 8.5
T56-40W12/T56-60W12 1170*72*78 132*35*23 6 pcs 2 15.5
T56-60W15/T56-75W15 1470*72*78 162*35*24 6 pcs 2.4 17.5
T56-80W24/T56-110W24 2370*72*78 252*24*22 4 pcs 3.8 19.5
FAQ:
1,Prices conditions
Price can be FOB, CIF ,EXW, or With taxes
2,What will be the delivery time and what will be the mode of payment?
About 4-7days. Butif you want a specialsample, it will need some times to make the mold.
The payment can be T/T transaction,Letter of credit,Paypal,Western Union
3,Could you please send me the sample for the same.So that i could see and analyze its quality?
Yes.We can send samples first,samples need to be charged if the value is higher.
4,Will there be any contract for this business or trade?
Yes,there is a normal PI before the order is placed.
