High Efficiency RoHS Approval 180W IP65 Street Lights System For Highway
High Efficiency RoHS Approval 180W IP65 Street Lights System For Highway
High Efficiency RoHS Approval 180W IP65 Street Lights System For Highway
High Efficiency RoHS Approval 180W IP65 Street Lights System For Highway
High Efficiency RoHS Approval 180W IP65 Street Lights System For Highway
High Efficiency RoHS Approval 180W IP65 Street Lights System For Highway
High Efficiency RoHS Approval 180W IP65 Street Lights System For Highway
High Efficiency RoHS Approval 180W IP65 Street Lights System For Highway
Specifications
Brand Name :
FYTLED
Model Number :
T68B-180W
Certification :
ENEC,TUV, CE, RoHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000PCS per month
Delivery Time :
20-25 working days
Packaging Details :
1pc/carton
Color :
Grey
Warranty :
5 years
Material :
Aluminum
Wattage :
180W
Description

180W street light TUV 140lm/W T2-S T3-M ±15° installation angle 5 years warranty

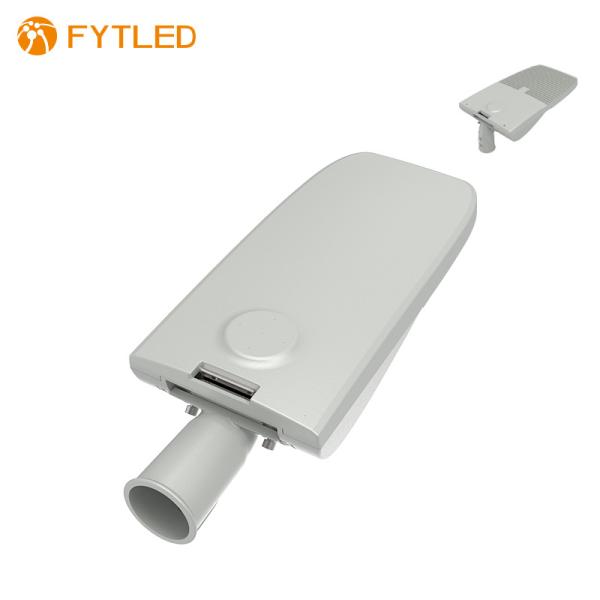

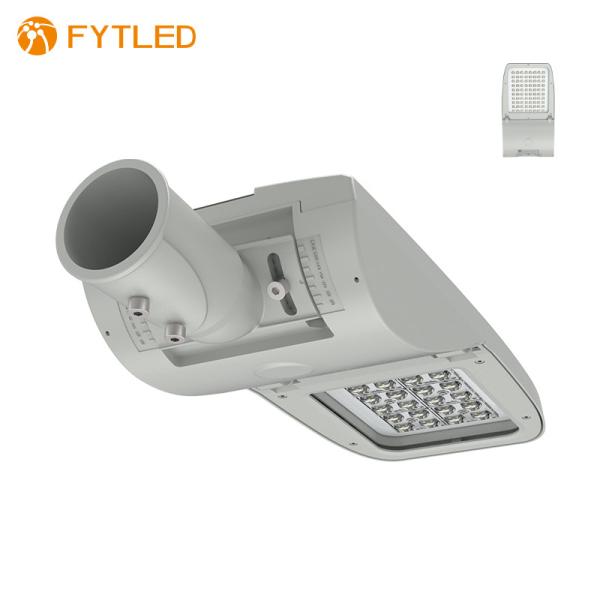

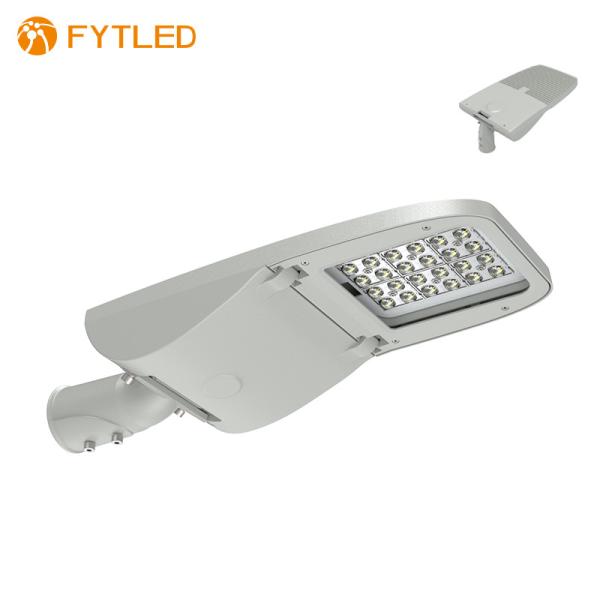

The Nero Pro T68B street light is cost-effective lighting solution developed for street and road. Full range from 30W to 240W allows tool-free access to maintenance. Lumen efficiency reacing 140lm/W to achieve energy-saving. T2-S and T3-M are available for double carriage ways and triple carriage ways.

Product features
  • Tool-free access to maintenance(i.e. driver replacement)
  • Adjustable installation angle max. ±15°
  • IP66 waterproof performance
  • 5 years warranty
  • Lumen efficiency reaching
  • Full certificates ENEC, TUV, CE, RoHS, CB

Options
  • 10KV SPD
  • 20KV SPD
  • Electrical disconnector(power cut for safty maintenance work)
  • Corrosion-resistant coating brand "AkzoNobel"(for seashore project)
  • Class II
  • 3pin, 5pin, 7pin NEMA base
  • Microwave motion sensor
  • photocell daylight sensor
  • photocontroller
  • 1-10V dimmable
  • DALI dimmable
Area of application
  • Road and street

Basic Specifications

Model Nominal Wattages (W) Nominal Voltage Rated luminous efficacy(lm/w) Nominal luminous flux(lumen) Beam Angle LED Quantity CRI
T68B-30W 30W AC100-277V 50~60Hz 140±10 4200±300 T2-S
T3-M		 12pcs 5W EMC5050 >70
T68B-40W 40W 5600±400 12pcs 5W EMC5051
T68B-50W 50W 7000±500 12pcs 5W EMC5052
T68B-60W 60W 8400±600 24pcs 5W EMC5050
T68B-80W 80W 11200±800 24pcs 5W EMC5050
T68B-100W 100W 14000±1000 36pcs 5W EMC5050
T68B-120W 120W 16800±1200 48pcs 5W EMC5050
T68B-150W 150W 21000±1500 48pcs 5W EMC5050
T68B-180W 180W 25200±1800 80pcs 5W EMC5050
T68B-240W 240W 33600±2400 80pcs 5W EMC5050

Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white; natural white; cold white
Type of current AC100-277V Available color temperatures 3000K; 4000K; 5000K; 6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92% Standard deviation of color matching <5

Standards & Certification Temperatures & operating conditions
Type of protection IP66 Heatsink temperature -20~+69℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+50℃
Safety features Open circuit protection Storage temperature -40~+80℃
Short circuit protection
Overvoltage protection
Certificates ENEC, TUV, CB, CE, RoHS
Energy efficiency class A+&A++

Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 5 years Base/Socket 42 60 76
Switching cycles 100,000 times Dimmable 1-10V dimmable, DALI dimmable
Lumen maintenance at e.o.l. 70%

Packing Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight/CTN(kg)
T68B-180W 680*320*125MM 80*39*22 1PCS 14.3 16.2

High Efficiency RoHS Approval 180W IP65 Street Lights System For Highway

Why choose us?

1. Warranty: most items enjoy 5 years warranty, some reach 10 years warranty.

2. R&D team: 20 qualified engineers to support product development(3~5 new products released quarterly) and ODM.

3. Qualifications: ISO9001 and ISO14001; China Hi-tech enterprise(over 40 patents achieved).

4. Factories: ① FYT LED(parent company) for LED lights since 2008; ② Tomcarline(subsidiary) for LED power driver since 2011; ③ JYT LED(subsidiary) for aluminum heatsink since 2019.

5. MOQ: ≥1pc(sample for evaluation)
