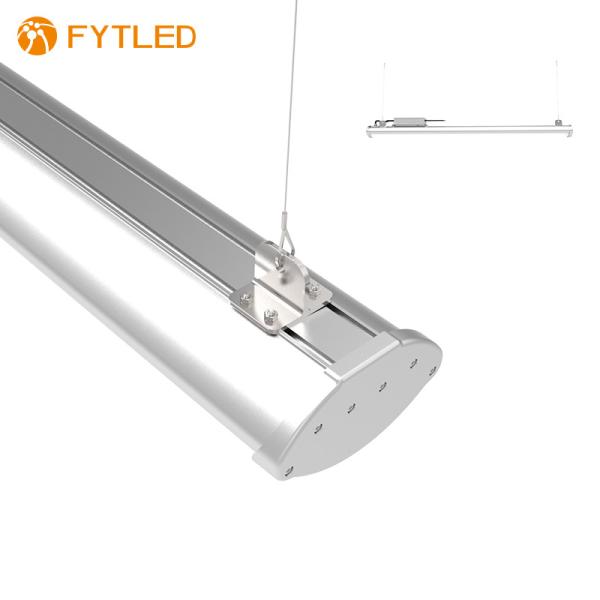

FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color
FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color
FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color
FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color
FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color
FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color
Specifications
Brand Name :
FYTLED
Model Number :
T12C
Certification :
UL, DLC, FCC,TUV, ENEC, CB, CE(EMC,LVD), RoHS
Place of Origin :
CHINA
MOQ :
1 piece
Price :
56USD-83USD/piece
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
12000pcs per week
Delivery Time :
5-8 work days
Packaging Details :
2PCS/CTN
Material :
Extruded 6063 pure aluminum
Color :
Silver(black or white optional)
Diffuser :
PC cover(clear or milky)
Beam Angle :
120°
Mounting Way :
Pendent mounting and surface mounting
LED :
Philips
L80/B10 :
50000 hours
Warranty :
5 years
Description

Food processing linear high bay 200W smooth surface extruded aluminum housing customized color energy saving high bay

T12C linear high bay series was specially designed for where there has much dust or need to wash directly including the lamp. There're much cooling fins inside the housign for heat dissipaton. The surface of the housing was designed to be smooth, so that no dust hidden in gap, and it's easy to clean with water gun. Due to a massive aluminum heat sink and high quality components this product was built to last for many years. The enormous light output and the high efficiency make this high bay an ideal replacement for all sorts of traditional industrial lamps.

Features

- 130lm/W or 150 lm/w selectable
- Good cooling due to pure aluminum housing
- CRI 80 natural color presentation
- IP65 rated for indoor and outdoor use
- IK10 protection
- D-Mark tested for the use in paper production, wood processing etc.
- 5 or 7 Years warranty

BENIFITS
- Replacement for HID and HIP 250W-400W highbay light
- Dust-free design, no dust hidden
- Excellent heat dissipation performation due to extruded aluminum housing
- Uniform light distribution
- PC material cover, no any glass components, ideal for food industry
- Smooth surface and IP65 rated can be washed by high pressure water, very easy for cleaning

OPTIONS

- Meanwell driver available
- CRI 90 Ra available upon request
- 1-10V dimmable and DALI, DMX dimmable
- Microwave motion sensor
- Emergency power supply

AREA OF APPLICATION

- Factories and warehouses
- Food processing workshop
- Super market
- Indoor sports field

CERTIFICATIONS
American market: UL, DLC Premium, cUL
European market: TUV, GS,CB,CE (EMC, LVD, RoHS), D-Mark
Australian market: SAA, C-Tick,RCM

PRODUCT SPECIFICATIOM

Specification for T12C Tomline Linear High Bay

General

Information

 Product Type Food Processing Linear high bay
Product Size 605*135*72mm, 905*135*72mm, 1205*135*72mm
Electric parameter Driver Brand Tomcarline/Meanwell HLG Series
Input Voltage AC90-305V/50-60Hz
Power 100W/150W/200W/240W
PF >0.95
Optical Parameter LED Brand Lumileds 3030
CRI >80
Color Temperature (CCT) 3000K-6000K
Luminous Flux up to 31000lm
Luminous Efficiency 155lm/w
Beam angle 120°
Others Lifetime 50,000Hr
Operating temperature -40℃~50℃
Warranty 5 years
Materials Extruded aluminum housing, PC cover
Installation Suspending
Application Warehoues, factory workshop, exhibition room, food factory etc.

PACKING
2pcs per carton: 1 piece in each inner box, and two inner box in one carton.
FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color
Model Dimension(mm) CTN Size(cm) QTY/CTN N.W/pc (kg) G.W/CTN (kg)
T12C-60W/100W 605*135*72 66*28*18 2 pcs 3.5 8.3

T12C-150W

 905*135*72 96*28*18 2 pcs 4.6 10.8
T12C-200W 1205*135*72 125*28*18 2 pcs 5.7

13.8

INCLUDED MOUNTING ACCESSORY
FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color
(Surface mounting bracket is optional)
FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color
OPTIONAL ACCESSORIES
0-10V and DALI dimmable driver
Surface mounting bracket with ±60° angle adjustment
Emergency battery pack
IP65 junction box
IP65 Microwave motion sensor
Zigbee control and gateway
FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color

FAQ

1. Q: Where is your target market?

A: Europe is our main market, followed by North America, Asia, Australia and South America have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your needs.

2.Q: What is your MOQ?

A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1Pcs.

3.Q: How long is the sample production time?

A: About 4-7days. Butif you want a specialsample, it will need some times to make the mold.

4.Q: What is the Payment?

A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) T/T 100%

2)30% advance deposit, the Balance should be paid off before shipment.
As our cooperation deepens, we can discuss other payment terms

5.Q:How long is the delivery time?

A:About 7 days

DELIVERY TIME
5-7 days for sample
4-5 weeks for main order
FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color
FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color
PROJECT PICTURE
FYTLED Aluminum 6063 Linear LED High Bay Lights Customized Color
