Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44
Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44
Specifications
Brand Name :
ZLONE
Model Number :
ZLRP6004048WR
Certification :
CE ROHS TUV SGS SAA FCC
Place of Origin :
China
MOQ :
none
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs/Month
Delivery Time :
7-10working days
Packaging Details :
3pcs/CTN 720*25*720mm /CTN N.W: 4.8KGS G.W:18kgs/ CTN
Size :
Φ600*40mm
Power :
48W
Lumen :
3600-3800LM
CRI :
80Ra
CCT :
3000K,4000K,6000K
Warranty :
3 Years
LED Brand :
EPISTAR SMD2835
Lifespan :
50000Hours
IP Grade :
IP44
Installation :
Surface Mounting
Description

SGS Surfaced Mounted Round Led Panel Lighting 48W 600mm Diameters 3800lm Good price IP44

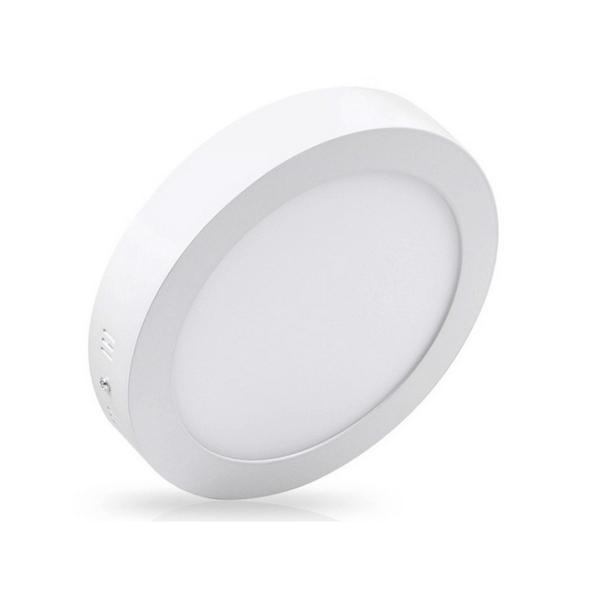

Front View:

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

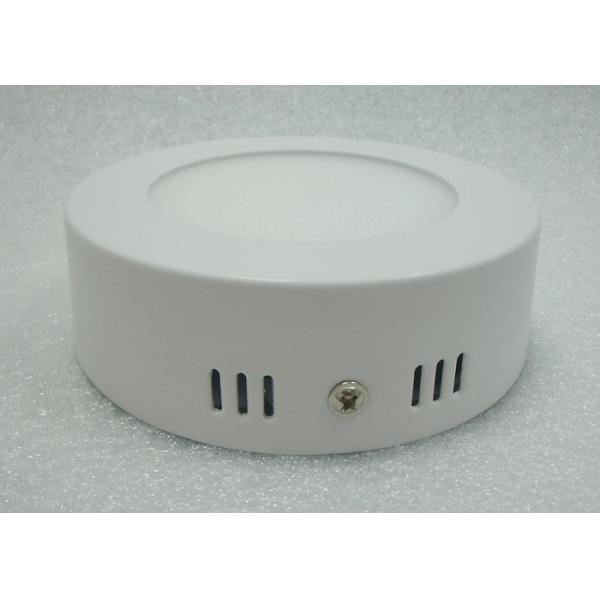

Back View:

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

600mm round surface mount panel 48W specf.

Part No.

ZLRP6004048WR

Optics

Parameters

Light Source

288pcs SMD2835 EPISTAR

Luminous Flux(lm)

3600-3800LM

CCT(K)

warmwhtie(3000K)/white(6000K)/

Neturalwhite4000K

CRI(Ra)

more than 80Ra

Beam Angle

120 degree

Light Attenuation ratio (%)

less than 3% in 30,000Hrs

Lifespan (Hrs)

more than 50,000Hrs

Electric

Parameters

Input Voltage(V)

85-265Vac

Frequency(Hz)

50/60 Hz

Input Current(mA)

950mA (@ 220 Vac )

Total Power(W)

48W

Power Factor

0.95

Turn-on Time(S)

less than 0.05 S (@ 220Vac)

Dielectric Voltage Withstand Test

3750Vac/1min

Structure

Parameters

Material

Aluminum+ PMMA

Size(mm)

600mm*40mm

Net Weight(g)

4.7KG

Water Proof(IP)

Indoor Use Only IP44

Integrated

Parameters

Operating Temperature

-40 ~ +55 Centigrade

Storage Humidity

0% ~ 95%R.H.

Dimmable

Optional

About the Driver:

Driver used Isolated Constant Current Driver with PF>0.95, THD<15%, CE/RoHS approval

3-Year warranty.

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

IES Test result:

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

48W 600mm round surface mounted panels in production/aging test.

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44


Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

Application:


1.lighting projects, banks, hotels, schools, bookstores, sports and other lighting
2.Exhibition,Fashionable dress act ;
3.Furniture, lighting, commercial lighting, museums, exhibition lighting
4.High-class stores,shopping malls;
5. Restaurant,Shopping Mall;

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44
