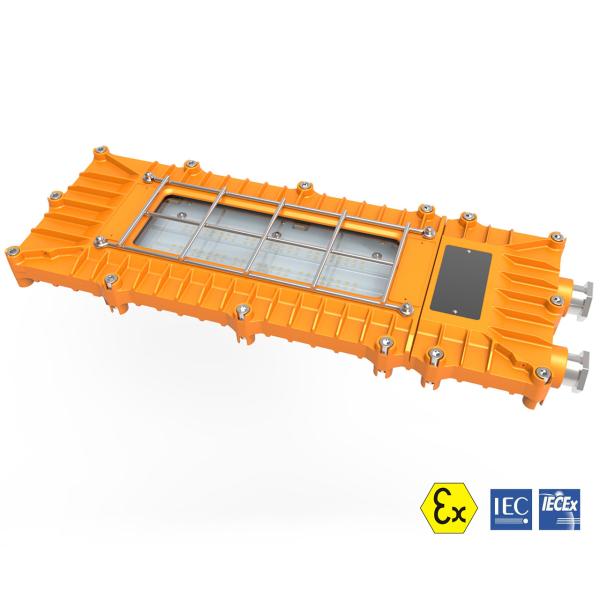

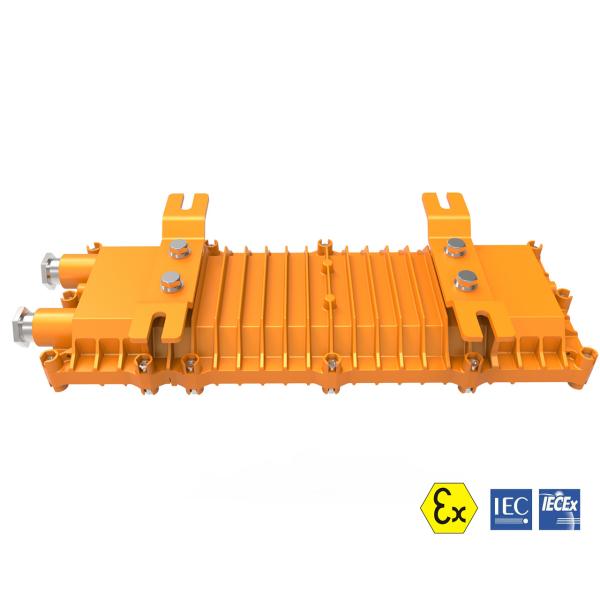

Arowana Series 18W 30W LED Explosion Proof Lights Power Factor > 0.98

Features And Benefits:

1. Energy saving. Reduce the number of luminaires you need.

2. Anti-glare.reduces glare in applications where the user may have direct visual contact with the light source.

3. Shock and vibration-resistant tempered glass , reduces the risk of premature failure.

4. High efficacy LED source. High lumen output and high CRI.

5. High efficiency LED Driver,designed to provide reliable operation in even harshest environment.

6. High-strength aluminum alloy enclousure, can endure 20J impact. Ip66, can be used in marine and wet locations.

7. Ambient temperature from -40°C to 55°C.

8. Life span> 50,000 hours.

9. Surge protection:5KV.

Specifications:

Standard &Certificate:

Ex Mark:Gas:II 2 G Ex d IIB T6 Gb

Dust: II 2 D Ex tb IIIC T80°C Db IP66

Certificate:

Executive Standard:

Luminaire Efficacy: 100lm/W
Lifespan:>50,000 hours
Operating Voltage: 100-240 VAC/141-339 VDC

Power:18W,30W

Frequency:50/60Hz

Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:5Kg
Size:480*180*62mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)

Available cable outer:φ7-φ14(mm)
Cable Entries: 2XNPT 3/4” (M20*1.5,M25*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Orange,RAL2011(optional grey RAL7040)
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant

Ordering Information:

Candela Distribution:


Installation Method:
