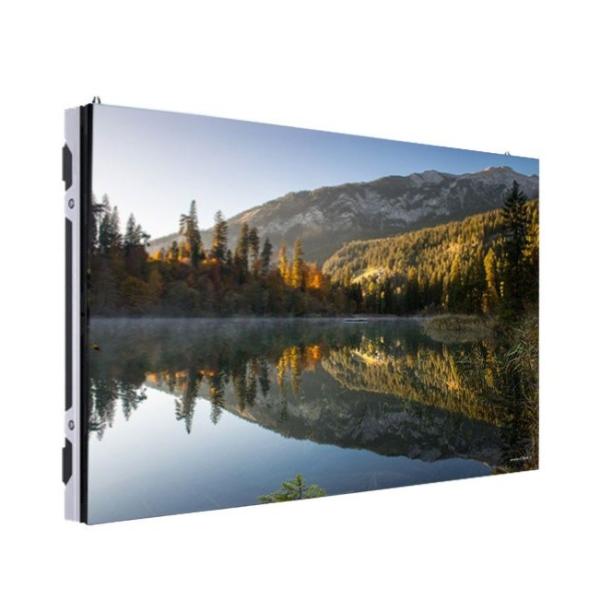

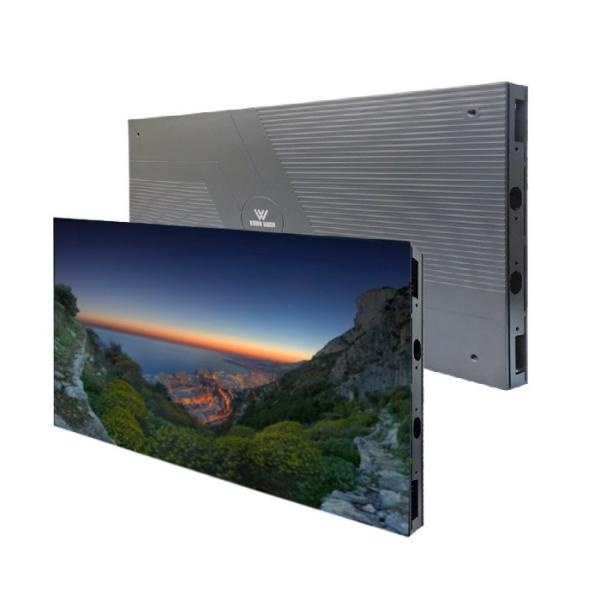

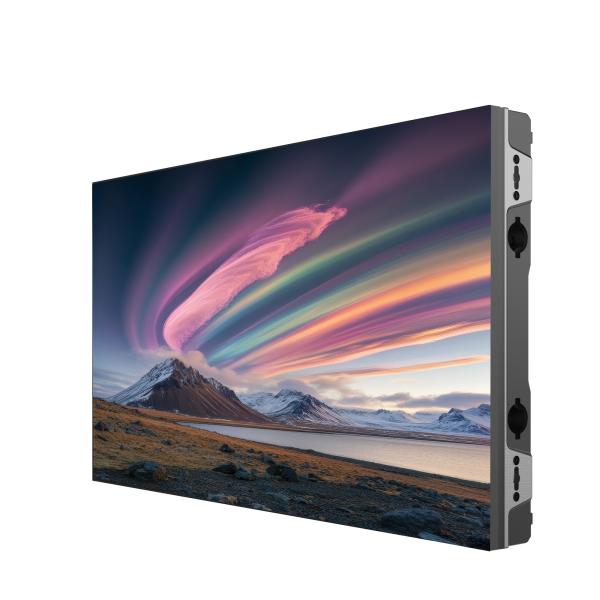

P0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mm
P0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mm
P0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mm
P0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mm
P0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mm
P0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mm
P0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mm
P0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mm
Specifications
Brand Name :
Visual World
Model Number :
P0.9
Certification :
EMC,CE,FCC,ROHS
Place of Origin :
CN
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000 sqm/month
Delivery Time :
12 work days
Packaging Details :
Plywood case, export carton box
Product Name :
P0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mm
Pixel Pitch :
P0.7/P0.9/P1.25/P1.56
Cabinet Weight :
4.6kg
Brightness :
0-2000nits
Cabinet Material :
Die-casting Aliuminum
LED Type :
COB
Cabinet Dimension :
600x337.5mm
Maintenance :
Front Service
Description

P0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mm

Product Description:

Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.

P0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mm

Features:

  • Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
  • The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
  • Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
  • The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
  • The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.

Technical Parameters:

Model P0.9
Pixel Pitch 0.9mm
LED Type COB
Cabinet Dimension 600*337.5*35mm
Module Size 150x168.75 mm
Cabinet Weight 4.6kg
Cabinet Material Die-casting Aluminum
Driving Type: 1/36
maintenance Front service
Brightness 0-2000 nits
Max/Avg Power 420/147 W/m2
IP Rating

Front: IP65

Rear: IP30
Refresh Rate >3840Hz
Installation Type

Mounting

Hanging

Stacking
Gray Scale 16bit
Viewing Angle H:170°；V:170°
Operational Temp -20℃~+50℃
Operational Humidity 10%-90%RH

Applications:

Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment /

P0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mmP0.9 Small Pitch LED Display COB Home Cinema Front Service 600x337.5mm

FAQ:

Q1:Are you a manufacturer or trading company?

A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 10 years. Welcome to visit our factory.

Q2:How does your factory do regarding quality control?
A2:Quality is priority.Our company always attach great importance to quality controlling from the very beginning to the very end.We focus on every detail,Our factory has gained CCC,PSE,RCM,CE,ROHS,FCC,IP65,CNAS authentication.

Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q4: What is your best service?
A4: 1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
