P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use
P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use
P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use
P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use
P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use
P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use
P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use
P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use
Specifications
Brand Name :
VW
Model Number :
TF15.6
Certification :
CE, ROHS
Place of Origin :
CN
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
3000 sqm/month
Delivery Time :
15 days
Packaging Details :
Plywood case, carton box
Product Name :
P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use
Pixel Pitch :
15.625*15.625 mm
Module Size :
500×125mm
Cabinet Size :
1000×500×84mm
LED Type :
SMD2121; SMD1921
Brightness: :
800-5500 nits
IP Rating :
F: IP20, R: IP21
Transparency Rate :
85%
Description
P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use
Product Overview

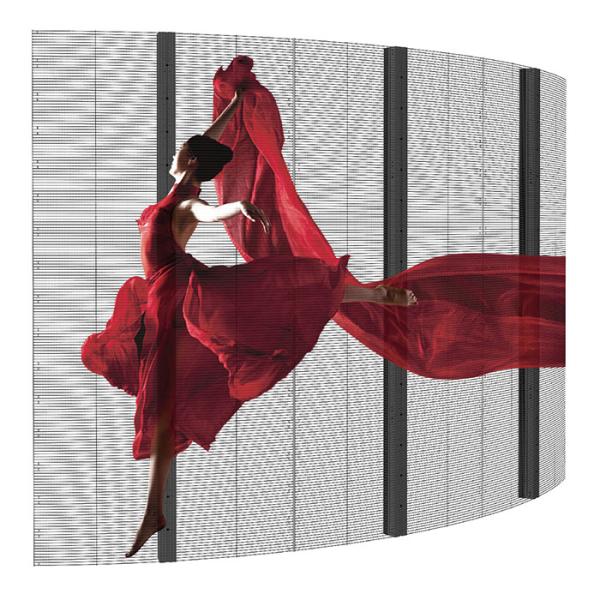

The seamless fusion of LED technology and transparent glass achieves a uniquely sophisticated visual harmony, uniting cutting-edge innovation with architectural elegance. This solution effortlessly adapts to curved surfaces, frameless installations, and fully bespoke designs—every element showcasing meticulous craftsmanship and customized professional support to fulfill precise client needs.

P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use
Key Features
  • Brightness 800-5500nits adjustable
  • Quick Installation and Maintenance
  • Fast lock mechanism
  • Frontal protection
Technical Specifications
Product Model: TF15.6
Pixel Pitch: 15.625*15.625 mm
LED Type: SMD2121; SMD1921
Cabinet Dimension: 1000x500x84 mm
Module Size: 500x125 mm
Cabinet Weight: 3.5 kg
Cabinet Material: Aluminum
Driving Type: Static
Brightness: 800-5500 nits
Max/Avg Power: 400/140; 800/280 W/m²
Transparency Rate: 85%
Environment: Indoor Use
IP Rating: F: IP20, R: IP21
Refresh Rate: >1920 Hz
Installation Type: Mounting/Hanging
Gray scale: 14 bit
Viewing Angle: H:140°; V:140°
Operational Temp: -20℃~+60℃
Operational Humidity: 10%~90% RH
Applications

Supermarket, airport advertising display, self-service store, metro station, museum, convenience store, stadium exhibition, chain brand store, high-end conference room, luxury brand store, hotel, bar, theatre, cinema, T stage, showroom, tourist attractions...

P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use P15.6 Full Color Window Screen Aluminum Transparency 85% For Indoor Use
Visual World recommends that our customers purchase enough LED display modules for spare replacement. If the LED display modules come from different purchases, they may come from different batches, which could cause color differences.
Frequently Asked Questions
Q1. Can I have a sample order for LED display?

A1: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen. Mixed samples are acceptable.

Q2. What about the lead time?

A2: Order less than 100 square meter lead time takes 15 working days.

Q3. Do you have any MOQ limit for LED display order?

A3: Low MOQ, 1 square meter or a module checking is available. And the price is negotiable for large quantities.

Q4. How do you ship the goods and how long does it take to arrive?

A4: We mostly accept FOB train term, but we can help you order and arrange shipping agent. It usually takes 20-30 days by sea, plus a few days for customer clearance.


Q5. To order a display, what kind of information do I have to offer you?

A5: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.

Q6. How to proceed an order for LED display?

A6:

  1. Let us know your requirements or application.
  2. We quote according to your requirements or our suggestions.
  3. Customer confirms the design document and places deposit for formal order.
  4. We arrange the production.


Q7. Is it OK to print my logo on the products?

A7: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q8. Do you offer guarantee for the products?

A8: Yes, we offer 1 year warranty for our products.

Q9. How to deal with the faulty?

A9:

  1. Our products are produced with strict quality control and the defective rate will be less than 0.2%.
  2. During the guarantee period, we will send new modules with new order for small quantity.
  3. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
