P1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mm
P1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mm
P1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mm
P1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mm
P1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mm
P1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mm
P1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mm
P1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mm
Specifications
Brand Name :
Visual World
Model Number :
P1.25
Certification :
EMC,CE,FCC,ROHS
Place of Origin :
CN
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000 sqm/month
Delivery Time :
12 work days
Packaging Details :
Plywood case, export carton box
Product Name :
P1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mm
Pixel Pitch :
P0.7/P0.9/P1.25/P1.56
Cabinet Weight :
4.6kg
Brightness :
0-2000nits
Cabinet Material :
Die-casting Aliuminum
LED Type :
COB
Cabinet Dimension :
600x337.5mm
Maintenance :
Front Service
Description

P1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mm


Product Description:

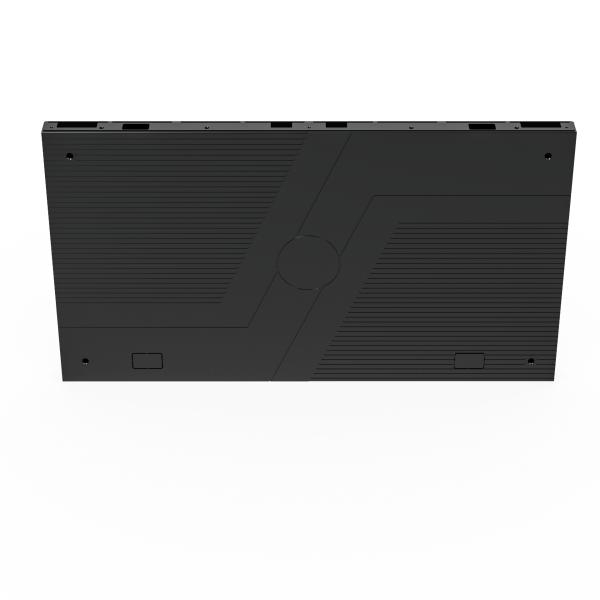

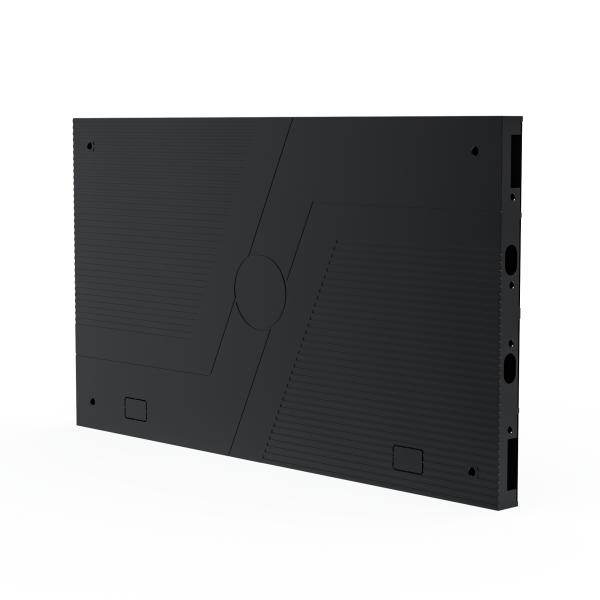

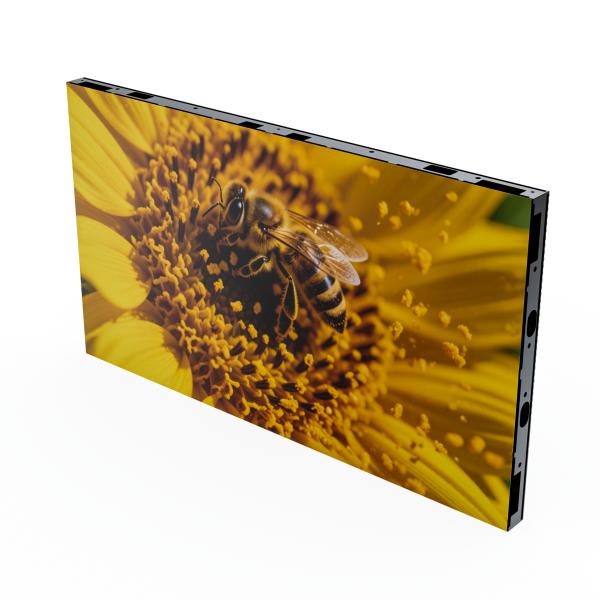

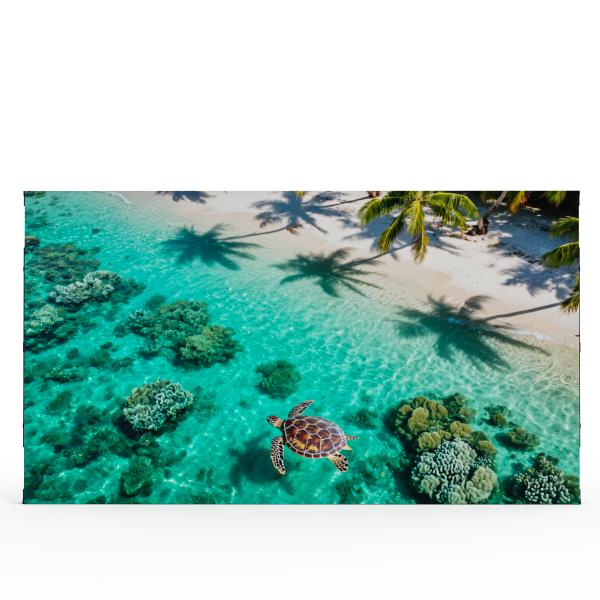

Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.

P1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mm

Features:

  • Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
  • The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
  • Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
  • The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
  • The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.


Technical Parameters:

Model P0.7 P0.9 P1.25 P1.56
Pixel Pitch 0.7mm 0.9mm 1.25mm 1.56mm
LED Type COB COB COB COB
Cabinet Dimension 600*337.5*35mm 600*337.5*35mm 600*337.5*35mm 600*337.5*35mm
Module Size 150x168.75 mm 150x168.75 mm 150x168.75 mm 150x168.75 mm
Cabinet Weight 4.6kg 4.6kg 4.6kg 4.6kg
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Driving Type: 1/36 1/36 1/27 1/48
maintenance Front service Front service Front service Front service
Brightness 0-2000 nits 0-2000 nits 1500 nits 1000 nits
Max/Avg Power 390/136 W/m2 420/147 W/m2 330/100 W/m2 330/100 W/m2
IP Rating

Front: IP65

Rear: IP30

Front: IP65

Rear: IP30

Front: IP65

Rear: IP30

Front: IP65

Rear: IP30
Refresh Rate >3840Hz >3840Hz >3840Hz >3840Hz
Installation Type

Mounting

Hanging

Stacking

Mounting

Hanging

Stacking

Mounting

Hanging

Stacking

Mounting

Hanging

Stacking
Gray Scale 16bit 16bit 16bit 16bit
Viewing Angle H:170°；V:170° H:170°；V:170° H:170°；V:170° H:170；°V:170°
Operational Temp -20℃~+50℃ -20℃~+50℃ -20℃~+50℃ -20℃~+50℃
Operational Humidity 10%-90%RH 10%-90%RH 10%-90%RH 10%-90%RH


Applications:

Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment /

P1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mmP1.25 Fine Pixel Pitch Displays COB Die-casting Aluminum 4.6kg 600*337.5mm


FAQ:

Q1: Are you a manufacturer or trade company?

A1: We are a professional OEM/ODM manufacturer with more than 10 years of professional experience in the LED display screen industry.

Q2: What can l get from you?

A2: LED module, LED display screen, LED display screen series products.

Q3: How about your warranty period?

A3: 1-3 years warranty structure design, installation issues, programming screens.

Q4: How to use LED screens?

A4: We have a complete technical team, with a dedicated technical engineer and sales manager assigned to each customer. From pre-sales to during-sales and after-sales, we provide 24/7 service to ensure that you can operate your LED display proficiently in the shortest time possible.

Q5:What other services can you provide for LED displays?

A5: As our customer, you will have a dedicated technical engineer and sales manager who will visit you offline 1 to 3 times per year, providing offline maintenance and guidance on the latest technologies for your products.
