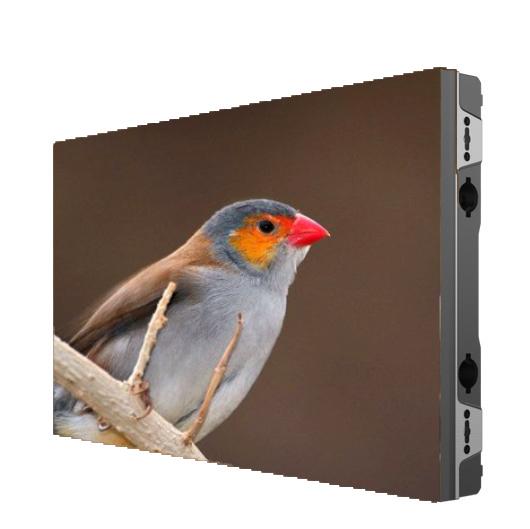

P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising
P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising
P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising
P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising
P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising
P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising
P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising
P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising
Specifications
Brand Name :
Visual World
Model Number :
P2.5
Certification :
CE,FCC,ROHS
Place of Origin :
CN
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000 sqm/month
Delivery Time :
12 work days
Packaging Details :
Plywood case, export carton box
Product Name :
P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising
Pixel Pitch :
2.5mm
Cabinet Material :
Aluminum alloy
Module Size :
300x337.5mm
Cabinet Size :
600x337.5×50mm
Brightness :
4500nits
Operating Environment :
Outdoor Use
LED Type :
SMD1415
Description

P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising


Product Description:

Introducing our advanced Small Pixel Pitch Display — engineered to transform visual experiences through superior performance, energy efficiency, and seamless ultra-HD clarity. Designed for high-impact applications, it excels in premium digital signage, control room environments, and immersive VR/XR simulations.

P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising


Features:

  • The independent module design is easy to install and remove.
  • No need to reserve maintenance access for outdoor installation.
  • OFP adopts a die-casting cabinet, which not only ensures the stability of the product structure, but also ensures its excellent heat dissipation performance, preventing the internal components from overheating, thus prolonging the service life of the LED display and keeping it in the best working condition.
  • OFP supports front service installation and is designed to reduce its reliance on human resources while controlling overall costs.
  • The refresh rate is as high as 3840Hz or more, dynamically eliminating screen tearing and shadow dragging; precise synchronization of high-speed shutter shooting, live events and other high-speed sports scenes show no shadow residual image.


Technical Parameters:

Pixel Pitch(mm) 2.5
Module Size(mm) 300 x 337.5
Module Resolution(dot) 120 x 135
Module Assembly 2 x 1
Panel Size(w x h x d)(mm) 600 x 337.5 x 50
Panel Resolution(dot) 240 x 135
LED Type SMD1415
Brightness(cd/m2 ) 4500
Horizontal Viewing Angle 140°
Vertical Viewing Angle 140°
Gray Level 16384
Refresh Rate(Hz) 3840Hz
Max. AC power consumption 700W/m2
Avg. AC power consumption 350W/㎡
Voltage AC100~240 50/60HZ
Operate Temp(℃) -30℃~+50℃
Storage Temp(℃) -40～80 ℃
Operating Humidity 10~95% RH
Protection grade IP65
Operating Environment Outdoor
Cabinet Material Aluminum alloy
LED Lifetime(H) 100,000
Weight(kg/pc) 6


Applications:

  • Digital Signage system
  • Chain store
  • Street furniture
  • Billboard
  • Football stadium
  • Perimeter LED poster
  • Arena display, etc.

P2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial AdvertisingP2.5 Small Pixel Pitch Outdoor LED Display IP65 For Commercial Advertising


Packing and Shipping:

Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 10-15 working days after confirm receipt payment in advance.


FAQ:

Q1: Can you provide customized services?
A1: Yes, we can design different categories of products according to your demand.


Q2: Is it OK to print our logo on the LED screen product?
A2: Yes, we can print your logo according to your request.


Q3: Can I order a sample for the LED display screen?
A3: Yes, we welcome you to order a sample to test and check quality. You can choose any item that you want.


Q4: How much is the freight?
A4: The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.


Q5: Do you offer a guarantee for the products?
A5: Yes, we offer 2 years warranty on our products.
